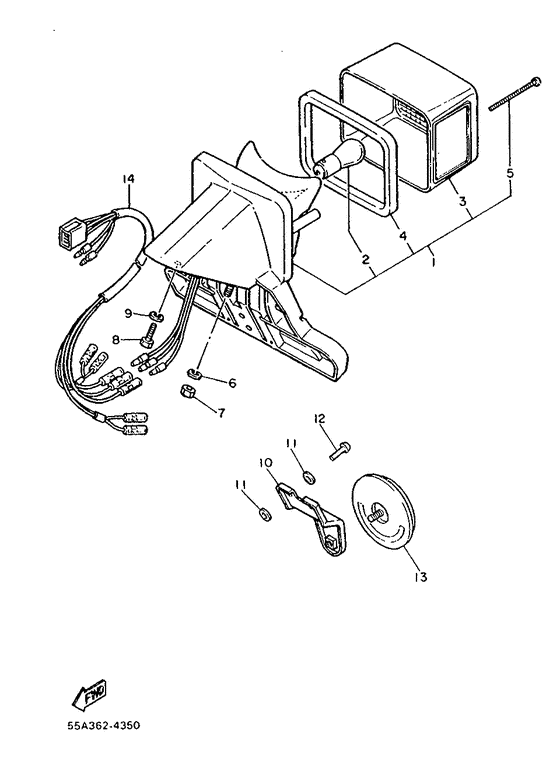

Taillight Diagram Yamaha XT500
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 55A
- Sales region
- Austria (999)
- Engine Capacity
- 500
- Model
- XT500
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
01
|
01
5Y3-84700-E1-00
Taillight Assy
|
5Y3-84700-E1-00 |
— | ||
02
|
02
31L-84714-00-00
Bulb (12V-21/5W)
|
31L-84714-00-00 |
— | ||
replacements | |||||
02
|
02
1A2-84714-50-00 Bulb (12V-21/5W) |
1A2-84714-50-00 |
from US $4.79 |
||
02
|
02
1A2-84714-41-00
Bulb
|
1A2-84714-41-00 |
— | ||
03
|
03
1M8-84521-40-00 Lens, Taillight |
1M8-84521-40-00 |
from US $37.89 |
||
replacement | |||||
03
|
03
1M1-84521-60-00 Lens, Tail Lamp |
1M1-84521-60-00 |
from US $35.04 |
||
04
|
04
15A-84545-00-00
Gasket, Lens
|
15A-84545-00-00 |
— | ||
05
|
05
3Y1-84524-00-00 Screw, Lens Fitting |
3Y1-84524-00-00 |
from US $2.99 |
||
06
|
06
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
replacement | |||||
06
|
06
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
07
|
07
95302-06600-00 Nut, Hexagon |
95302-06600-00 |
US $0.90 |
||
replacement | |||||
07
|
07
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $0.90 |
||
08
|
08
97302-06025-00 Bolt |
97302-06025-00 |
from US $1.43 |
||
replacement | |||||
08
|
08
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.43 |
||
09
|
09
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
replacement | |||||
09
|
09
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
10
|
10
10V-85132-01-00
Bracket, Reflector 1
|
10V-85132-01-00 |
— | ||
replacement | |||||
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
11
|
11
90201-044A2-00 Washer, Plate |
90201-044A2-00 |
from US $1.80 |
||
replacement | |||||
11
|
11
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $0.94 |
||
12
|
12
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.80 |
||
13
|
13
449-85131-02-00 Reflector, Rear 1 |
449-85131-02-00 |
from US $14.02 |
||
14
|
14
34L-84717-00-00
Cord, Taillight
|
34L-84717-00-00 |
— | ||
replacement | |||||
14
|
14
5Y3-84717-00-00
Cord, Taillight
|
5Y3-84717-00-00 |
— |
