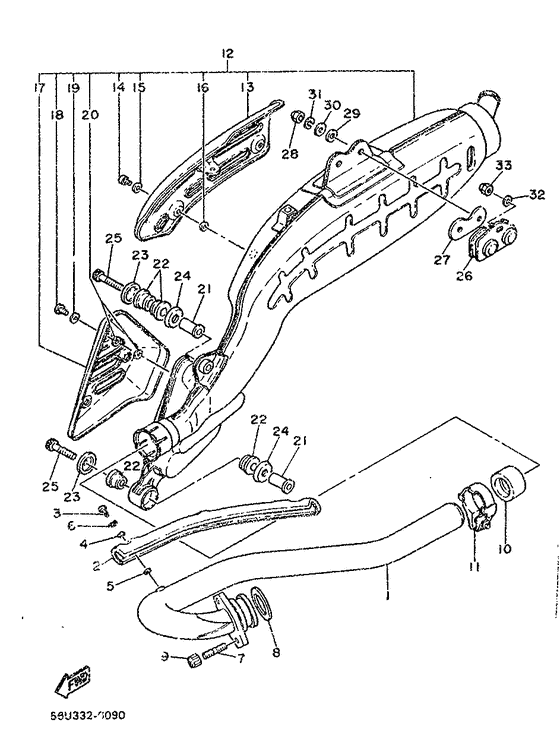

Exhaust Diagram Yamaha XT500
- Year
- 1986
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 56U
- Sales region
- Germany (999)
- Engine Capacity
- 500
- Model
- XT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1T1-14611-03-00 Pipe, Exhaust L |
1T1-14611-03-00 |
from US $141.70 |
||
|
02
|
02
1T1-14628-00-00
Protc, Exhaust Pipe
|
1T1-14628-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
989-06060-10-00
Screw, Bind
|
989-06060-10-00 |
— | ||
| replacement | |||||
|
03
|
03
989-07060-10-00 Screw, Binding |
989-07060-10-00 |
from US $1.56 |
||
|
04
|
04
583-14766-00-00 Washer, Protector |
583-14766-00-00 |
from US $1.28 |
||
| replacement | |||||
|
04
|
04
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
05
|
05
1E6-14766-01-00 Washer, Protector |
1E6-14766-01-00 |
from US $8.36 |
||
| replacement | |||||
|
05
|
05
3WX-14766-00-00 Washer, Protector |
3WX-14766-00-00 |
from US $8.36 |
||
|
06
|
06
902-06060-60-00
Washer, Wave
|
902-06060-60-00 |
— | ||
| replacement | |||||
|
06
|
06
90206-06090-00 Washer, Wave(3Rw) J |
90206-06090-00 |
from US $1.70 |
||
|
07
|
07
95621-08615-00 Bolt, Stud |
95621-08615-00 |
from US $3.01 |
||
| replacement | |||||
|
07
|
07
95617-08615-00 Bolt, Stud |
95617-08615-00 |
from US $5.81 |
||
|
08
|
08
90430-38054-00 Gasket, Exhaust Pipe |
90430-38054-00 |
from US $6.66 |
||
| replacement | |||||
|
08
|
08
3GD-14613-00-00 Gasket, Exhaust Pipe |
3GD-14613-00-00 |
from US $6.40 |
||
|
09
|
09
90179-08004-00 Nut |
90179-08004-00 |
from US $7.07 |
||
|
10
|
10
42X-14714-00-00 Gasket, Muffler |
42X-14714-00-00 |
from US $49.60 |
||
| replacement | |||||
|
10
|
10
3EG-14714-00-00 Gasket, Muffler |
3EG-14714-00-00 |
from US $49.60 |
||
|
11
|
11
1T1-14788-00-00
Band, Silencer
|
1T1-14788-00-00 |
— | ||
|
12
|
12
1U6-14710-51-00
Muffler Assy 1
|
1U6-14710-51-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
1T1-14718-00-00
Protector, Muff 1
|
1T1-14718-00-00 |
— | ||
|
14
|
14
989-06060-10-00
Screw, Bind
|
989-06060-10-00 |
— | ||
| replacement | |||||
|
14
|
14
989-07060-10-00 Screw, Binding |
989-07060-10-00 |
from US $1.56 |
||
|
15
|
15
583-14766-00-00 Washer, Protector |
583-14766-00-00 |
from US $1.28 |
||
| replacement | |||||
|
15
|
15
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
16
|
16
1E6-14766-01-00 Washer, Protector |
1E6-14766-01-00 |
from US $8.36 |
||
| replacement | |||||
|
16
|
16
3WX-14766-00-00 Washer, Protector |
3WX-14766-00-00 |
from US $8.36 |
||
|
17
|
17
1T2-14728-00-00
Protecter, Muff 2
|
1T2-14728-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
98906-06012-00 Screw, Bind |
98906-06012-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
98907-06012-00 Screw, Bind |
98907-06012-00 |
from US $1.42 |
||
|
19
|
19
583-14766-00-00 Washer, Protector |
583-14766-00-00 |
from US $1.28 |
||
| replacement | |||||
|
19
|
19
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
20
|
20
1E6-14766-01-00 Washer, Protector |
1E6-14766-01-00 |
from US $8.36 |
||
| replacement | |||||
|
20
|
20
3WX-14766-00-00 Washer, Protector |
3WX-14766-00-00 |
from US $8.36 |
||
|
21
|
21
90387-06572-00
Collar
|
90387-06572-00 |
— | ||
|
22
|
22
1T1-14747-01-00 Damper, Muffler |
1T1-14747-01-00 |
from US $18.88 |
||
|
23
|
23
90209-08096-00
Washer
|
90209-08096-00 |
— | ||
|
24
|
24
90209-12163-00
Washer, Spec''l Shap
|
90209-12163-00 |
— | ||
|
25
|
25
91316-08050-00 Bolt, Hex. Socket Head |
91316-08050-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
91317-08050-00 Bolt, Hex. Socket Head |
91317-08050-00 |
from US $1.56 |
||
|
26
|
26
1T1-14791-01-00 Stay, Muffler |
1T1-14791-01-00 |
from US $55.79 |
||
| replacement | |||||
|
26
|
26
1T1-14791-02-00
Stay, Muffler
|
1T1-14791-02-00 |
— | ||
|
27
|
27
1T1-14755-01-00
Gasket,silencer
|
1T1-14755-01-00 |
— | ||
| replacement | |||||
|
27
|
27
1T1-14755-02-00
Gasket, Silencer
|
1T1-14755-02-00 |
— | ||
|
28
|
28
95601-08100-00 Nut, U |
95601-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
28
|
28
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
29
|
29
90202-08103-00
Washer, Plate
|
90202-08103-00 |
— | ||
| replacement | |||||
|
29
|
29
902-02082-28-00
Washer, Plain
|
902-02082-28-00 |
— | ||
|
30
|
30
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.81 |
||
| replacement | |||||
|
30
|
30
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
|
31
|
31
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
32
|
32
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
32
|
32
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
33
|
33
95303-08800-00 Nut (Crown) (93501-08800-00) |
95303-08800-00 |
from US $3.12 |
||
