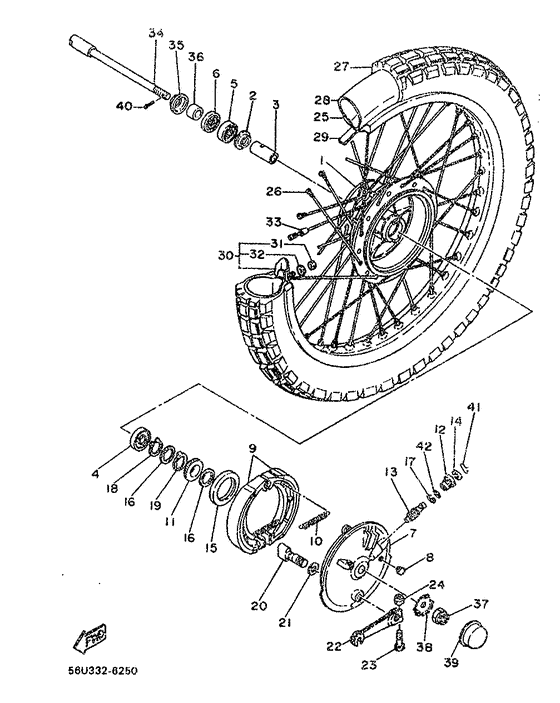

Front wheel Diagram Yamaha XT500
- Year
- 1986
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 56U
- Sales region
- Germany (999)
- Engine Capacity
- 500
- Model
- XT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1E6-25111-00-98
Hub, Front
Low glos black |
1E6-25111-00-98 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Low glos black |
999-99999-99-00 |
— | ||
|
02
|
02
183-25315-00-00 Flange, Spacer 2 |
183-25315-00-00 |
from US $4.53 |
||
| replacement | |||||
|
02
|
02
146-25116-00-00 Flange, Spacer 2 |
146-25116-00-00 |
from US $4.53 |
||
|
03
|
03
90560-16293-00
Spacer
|
90560-16293-00 |
— | ||
|
04
|
04
93306-20203-00 Bearing |
93306-20203-00 |
from US $15.44 |
||
| replacement | |||||
|
04
|
04
93306-20226-00 Bearing |
93306-20226-00 |
from US $15.26 |
||
|
05
|
05
933-06202-09-00
Bearing
|
933-06202-09-00 |
— | ||
| replacement | |||||
|
05
|
05
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.05 |
||
|
06
|
06
93102-20009-00 Oil Seal |
93102-20009-00 |
from US $6.52 |
||
|
07
|
07
2N6-25121-10-98
Plate, Brake Shoe
Low gloss black |
2N6-25121-10-98 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
Low gloss black |
999-99999-99-00 |
— | ||
|
08
|
08
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.81 |
||
|
09
|
09
431-W2536-00-00
Brake Shoe Set-2Pcs
|
431-W2536-00-00 |
— | ||
| replacement | |||||
|
09
|
09
4GR-W253E-00-00 GUIDE, INTAKE VALV |
4GR-W253E-00-00 |
from US $44.89 |
||
|
10
|
10
90507-20002-00 Spring, Tension 2462533300 |
90507-20002-00 |
from US $2.36 |
||
|
11
|
11
306-25135-00-00
Gear, Drive
|
306-25135-00-00 |
— | ||
|
12
|
12
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
13
|
13
306-25136-00-00
Bush
|
306-25136-00-00 |
— | ||
|
14
|
14
93104-07003-00 Oil Seal, So-Type |
93104-07003-00 |
from US $1.84 |
||
|
15
|
15
93105-10010-00
Oil Seal
|
93105-10010-00 |
— | ||
|
16
|
16
90201-22283-00 Washer, Plate |
90201-22283-00 |
from US $1.56 |
||
|
17
|
17
90201-07076-00 Washer, Plate |
90201-07076-00 |
from US $1.70 |
||
|
18
|
18
99009-22400-00 Circlip |
99009-22400-00 |
from US $1.56 |
||
|
19
|
19
214-25149-01-00 Clutch, Meter |
214-25149-01-00 |
from US $9.36 |
||
|
20
|
20
1E6-25151-00-00 Camshaft |
1E6-25151-00-00 |
US $48.51 |
||
|
21
|
21
148-25153-00-00
Shim, Camshaft
|
148-25153-00-00 |
— | ||
|
22
|
22
2N6-25155-00-00 Lever, Camshaft 1 |
2N6-25155-00-00 |
from US $19.12 |
||
|
23
|
23
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
24
|
24
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
24
|
24
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
25
|
25
94418-21201-00
Rim (1.85-21)
|
94418-21201-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
1E6-25104-01-00 Spoke Set, Front |
1E6-25104-01-00 |
from US $82.99 |
||
|
27
|
27
941-32212-54-00
Tire (3.25-21)
Bridgestone |
941-32212-54-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
Bridgestone |
999-99999-99-00 |
— | ||
|
28
|
28
942-27211-23-00 Tube (Mcs 2.75/3.00-21 Tr6)Bridgestone |
942-27211-23-00 |
US $54.59 |
||
|
29
|
29
94330-21084-00 Band, Rim (1.60-21)Bridgestone |
94330-21084-00 |
from US $4.39 |
||
|
30
|
30
1T2-25394-00-00 Spacer, Bead |
1T2-25394-00-00 |
from US $50.02 |
||
|
31
|
31
95311-08920-00
Nut
|
95311-08920-00 |
— | ||
|
32
|
32
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
32
|
32
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
33
|
33
156-25398-00-00
Balancer, Wheel (15G)
Un |
156-25398-00-00 |
— | ||
| replacement | |||||
|
33
|
33
3HT-25398-00-00 Balancer, Wheel (15G)Un |
3HT-25398-00-00 |
from US $8.08 |
||
|
34
|
34
1W1-25181-01-00 Axle, Wheel |
1W1-25181-01-00 |
from US $42.82 |
||
|
35
|
35
322-25118-00-00 Cover, Hub Dust |
322-25118-00-00 |
from US $10.63 |
||
|
36
|
36
90387-15720-00
Collar
|
90387-15720-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
37
|
37
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
37
|
37
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $7.42 |
||
|
38
|
38
90209-14165-00
Washer
|
90209-14165-00 |
— | ||
|
39
|
39
521-25188-00-00 Cap |
521-25188-00-00 |
US $7.37 |
||
|
40
|
40
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
40
|
40
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
41
|
41
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
|
42
|
42
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
42
|
42
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
