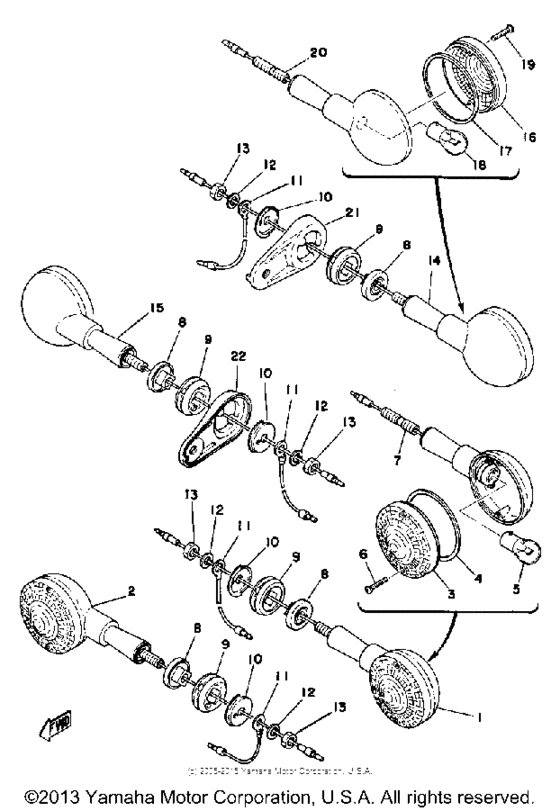

Flasher light Diagram Yamaha XT500
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 500
- Model
- XT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1E6-83310-60-93
Frt Flshr Lite Assembly
|
1E6-83310-60-93 |
— | ||
|
2
|
2
1E6-83310-60-93
Frt Flshr Lite Assembly
|
1E6-83310-60-93 |
— | ||
|
3
|
3
341-83312-70-00 Lens, Flasher |
341-83312-70-00 |
from US $7.76 |
||
|
4
|
4
3Y6-83313-00-00 Gasket, Flasher Lens |
3Y6-83313-00-00 |
from US $4.39 |
||
|
5
|
5
115-83311-60-00 Bulb 6V21Cp(1129)Bulb (6v/18w) 6V21CP1129 |
115-83311-60-00 |
from US $4.53 |
||
| replacement | |||||
|
5
|
5
115-83311-60-XX BULB 6V21CP(1129)6V21CP1129 |
115-83311-60-XX |
US $9.02 |
||
|
6
|
6
341-83333-70-00 Screw, Special |
341-83333-70-00 |
from US $1.56 |
||
| replacements | |||||
|
6
|
6
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
|
6
|
6
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $2.22 |
||
|
7
|
7
360-83367-09-00
Bolt, Stud
|
360-83367-09-00 |
— | ||
|
8
|
8
341-83316-01-00 Collar, Flasher |
341-83316-01-00 |
from US $11.33 |
||
| replacement | |||||
|
8
|
8
341-83316-02-00 COLLAR, FLASHER 1 |
341-83316-02-00 |
from US $9.52 |
||
|
9
|
9
1E6-83321-00-00 Damper, Flasher |
1E6-83321-00-00 |
from US $10.19 |
||
|
10
|
10
1E6-83348-00-00
Washer
|
1E6-83348-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
1E6-83336-00-00
Cord
|
1E6-83336-00-00 |
— | ||
|
12
|
12
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
13
|
13
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
13
|
13
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
14
|
14
1E6-83330-60-93
R Flshr Lite Assembly
|
1E6-83330-60-93 |
— | ||
|
15
|
15
1E6-83330-60-93
R Flshr Lite Assembly
|
1E6-83330-60-93 |
— | ||
|
16
|
16
341-83332-70-00
Lens, Flasher
|
341-83332-70-00 |
— | ||
|
17
|
17
3Y6-83313-00-00 Gasket, Flasher Lens |
3Y6-83313-00-00 |
from US $4.39 |
||
|
18
|
18
115-83311-60-00 Bulb 6V21Cp(1129)Bulb (6v/18w) 6V21CP1129 |
115-83311-60-00 |
from US $4.53 |
||
| replacement | |||||
|
18
|
18
115-83311-60-XX BULB 6V21CP(1129)6V21CP1129 |
115-83311-60-XX |
US $9.02 |
||
|
19
|
19
341-83333-70-00 Screw, Special |
341-83333-70-00 |
from US $1.56 |
||
| replacements | |||||
|
19
|
19
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
|
19
|
19
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $2.22 |
||
|
20
|
20
360-83367-09-00
Bolt, Stud
|
360-83367-09-00 |
— | ||
|
21
|
21
1E6-83368-00-00
Stay, Flasher
|
1E6-83368-00-00 |
— | ||
|
22
|
22
1E6-83369-00-00
Stay, Flasher
|
1E6-83369-00-00 |
— | ||
