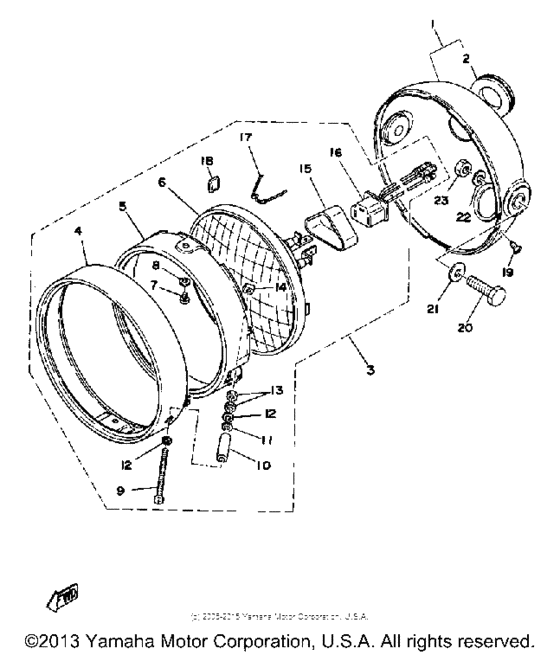

Headlight Diagram Yamaha XT500
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 500
- Model
- XT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1E6-84130-60-33
Body Assembly, Headlight
|
1E6-84130-60-33 |
— | ||
|
2
|
2
214-84153-60-00 Grommet, Wire Harness |
214-84153-60-00 |
from US $2.99 |
||
|
4
|
4
498-84115-60-00
Rim, Headlight
|
498-84115-60-00 |
— | ||
|
5
|
5
498-84195-60-00
Ring, Retaining
|
498-84195-60-00 |
— | ||
|
6
|
6
498-84120-61-00
Lens Assembly
|
498-84120-61-00 |
— | ||
|
7
|
7
438-84194-60-00
Ring, Mounting
|
438-84194-60-00 |
— | ||
|
8
|
8
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
9
|
9
901-57040-01-00 Screw, Rim Adjusting |
901-57040-01-00 |
from US $6.23 |
||
|
10
|
10
438-84133-60-00
Collar, Screw
|
438-84133-60-00 |
— | ||
|
11
|
11
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
12
|
12
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
13
|
13
95301-04600-00 Nut |
95301-04600-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
95307-04600-00 Nut |
95307-04600-00 |
from US $1.70 |
||
|
14
|
14
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.47 |
||
|
15
|
15
341-84397-61-00
Cover, Socket
|
341-84397-61-00 |
— | ||
|
16
|
16
371-84312-60-00 Socket |
371-84312-60-00 |
from US $34.06 |
||
|
17
|
17
507-84324-60-00 Spring, Set |
507-84324-60-00 |
from US $3.12 |
||
| replacement | |||||
|
17
|
17
1UY-84124-00-00 Spring, Set |
1UY-84124-00-00 |
from US $3.12 |
||
|
18
|
18
498-84128-60-00
Spacer
|
498-84128-60-00 |
— | ||
|
19
|
19
90152-05005-00 Screw, Countersunk |
90152-05005-00 |
from US $1.56 |
||
|
20
|
20
97303-08035-00 BoltBolt,hexagon |
97303-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
20
|
20
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
21
|
21
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
22
|
22
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
23
|
23
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
23
|
23
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
