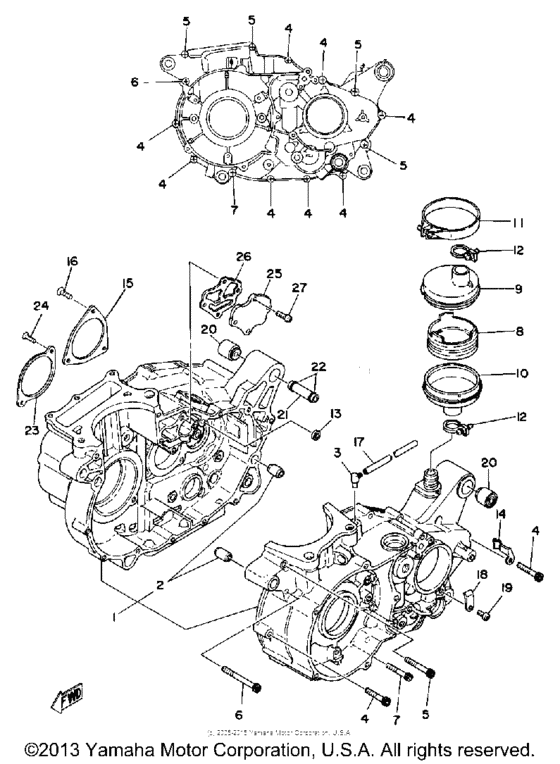

Crankcase Diagram Yamaha XT500
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 500
- Model
- XT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2Y0-15100-01-00
Crankcase Assembly
|
2Y0-15100-01-00 |
— | ||
|
2
|
2
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
2
|
2
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
3
|
3
583-15371-00-00 Breather |
583-15371-00-00 |
from US $1.70 |
||
|
4
|
4
913-16060-35-00
Bolt
|
913-16060-35-00 |
— | ||
| replacements | |||||
|
4
|
4
90110-06X45-00 Bolt, Hexagon Sock |
90110-06X45-00 |
US $41.20 |
||
|
4
|
4
913-17060-35-00
Bolt,socket
|
913-17060-35-00 |
— | ||
|
4
|
4
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
5
|
5
91316-06045-00 Bolt |
91316-06045-00 |
from US $1.42 |
||
| replacements | |||||
|
5
|
5
901-1006X-81-00
Bolt, Hexagon Socket Head
|
901-1006X-81-00 |
— | ||
|
5
|
5
91317-06045-00 Bolt,socket |
91317-06045-00 |
from US $1.34 |
||
|
6
|
6
91316-06065-00 Bolt (431) |
91316-06065-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
91317-06065-00 Bolt |
91317-06065-00 |
from US $1.66 |
||
|
7
|
7
913-16060-55-00
Bolt
|
913-16060-55-00 |
— | ||
| replacement | |||||
|
7
|
7
91317-06055-00 Bolt |
91317-06055-00 |
from US $1.52 |
||
|
8
|
8
583-15358-00-00 Separator,oil |
583-15358-00-00 |
from US $6.39 |
||
| replacement | |||||
|
8
|
8
3HT-15358-00-00 Separator, Oil |
3HT-15358-00-00 |
from US $13.81 |
||
|
9
|
9
583-15346-00-00 Breather 1 |
583-15346-00-00 |
from US $13.05 |
||
|
10
|
10
583-15347-00-00 Breather 2 |
583-15347-00-00 |
from US $16.15 |
||
|
11
|
11
90460-71129-00
Clamp, Hose (90460-71017)
90460-71017 |
90460-71129-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
90460-71017 |
999-99999-99-00 |
— | ||
|
12
|
12
90460-22083-00 Clamp, Hose |
90460-22083-00 |
from US $5.24 |
||
|
13
|
13
90430-09121-00 Gasket |
90430-09121-00 |
from US $1.70 |
||
|
14
|
14
90465-08277-00 Clamp(51Y) |
90465-08277-00 |
from US $4.11 |
||
|
15
|
15
363-15381-00-00 Plate, Brng Cover |
363-15381-00-00 |
US $11.76 |
||
|
16
|
16
98701-05012-00 Screw, Countersunk |
98701-05012-00 |
from US $1.26 |
||
| replacement | |||||
|
16
|
16
98707-05012-00 Screw, Countersunk |
98707-05012-00 |
from US $2.21 |
||
|
17
|
17
90445-07039-00 Hose (L310) |
90445-07039-00 |
from US $10.91 |
||
| replacement | |||||
|
17
|
17
904-45072-G8-00 Hose (L310) |
904-45072-G8-00 |
from US $6.74 |
||
|
18
|
18
90465-05132-00 Clamp |
90465-05132-00 |
US $5.39 |
||
| replacement | |||||
|
18
|
18
90465-10021-00 Clamp |
90465-10021-00 |
from US $4.21 |
||
|
19
|
19
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
19
|
19
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
20
|
20
583-15316-00-00
Damper, Eng Mount 1
|
583-15316-00-00 |
— | ||
|
21
|
21
583-15317-01-00
Spacer, Eng Mount
|
583-15317-01-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
93210-11313-00 O-Ring (1J7) |
93210-11313-00 |
from US $6.94 |
||
|
23
|
23
583-15383-00-00 Plate, Brng Cover |
583-15383-00-00 |
from US $6.08 |
||
|
24
|
24
98701-06014-00 Screw Flat Head |
98701-06014-00 |
from US $2.27 |
||
| replacements | |||||
|
24
|
24
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $2.27 |
||
|
24
|
24
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.56 |
||
|
25
|
25
583-15426-00-00 Cover, Oil Pump R |
583-15426-00-00 |
from US $18.42 |
||
| replacement | |||||
|
25
|
25
583-15426-10-00 Cover, Oil Pump 2 |
583-15426-10-00 |
from US $11.65 |
||
|
26
|
26
583-15466-00-00 Gasket 2 |
583-15466-00-00 |
from US $4.11 |
||
| replacement | |||||
|
26
|
26
3HT-15466-00-00 Gasket 2 |
3HT-15466-00-00 |
from US $4.11 |
||
|
27
|
27
98580-06018-00 Screw, Pan Head (N151) |
98580-06018-00 |
US $3.26 |
||
| replacement | |||||
|
27
|
27
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
