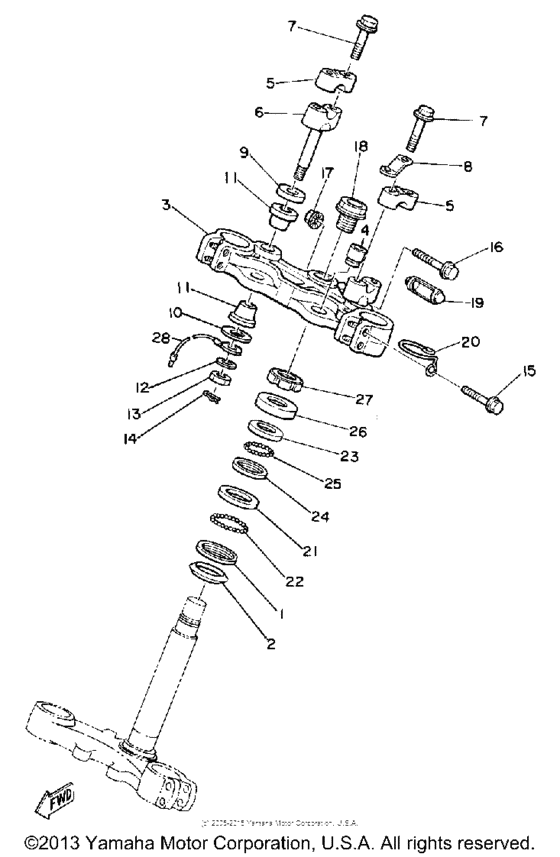

Steering Diagram Yamaha XT500
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 500
- Model
- XT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
1
|
1
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
2
|
2
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.72 |
||
|
3
|
3
3H7-23435-00-98
Crown, Handle
|
3H7-23435-00-98 |
— | ||
|
4
|
4
1E6-23445-00-00
Damper
|
1E6-23445-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-01E6-23441-0 LOW GLOSS BLK |
1E6-23441-00-00 |
from US $20.97 |
||
|
6
|
6
1E6-23442-00-00
Holder, Handle Lower
|
1E6-23442-00-00 |
— | ||
| replacement | |||||
|
6
|
6
4AA-23442-01-98 Holder, Handle Lower |
4AA-23442-01-98 |
US $37.86 |
||
|
7
|
7
90105-08091-00 Bolt, Flange |
90105-08091-00 |
from US $1.56 |
||
| replacement | |||||
|
7
|
7
958-14080-40-00 Bolt, Flange |
958-14080-40-00 |
from US $1.56 |
||
|
8
|
8
1T2-23389-00-00
Guide, Cable
|
1T2-23389-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
90201-12195-00 Washer, Plate |
90201-12195-00 |
from US $4.68 |
||
| replacement | |||||
|
9
|
9
90201-121J0-00 Washer, Plate |
90201-121J0-00 |
from US $4.68 |
||
|
10
|
10
902-01103-22-00 Washer, Plate |
902-01103-22-00 |
from US $7.54 |
||
| replacement | |||||
|
10
|
10
90201-100S7-00 Washer, Plate(8Bv) |
90201-100S7-00 |
from US $7.93 |
||
|
11
|
11
1E6-23434-00-00 Holder, Damper |
1E6-23434-00-00 |
from US $6.23 |
||
|
12
|
12
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
13
|
13
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
13
|
13
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
14
|
14
90468-12006-00 Clip |
90468-12006-00 |
from US $1.84 |
||
|
15
|
15
90105-08091-00 Bolt, Flange |
90105-08091-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
958-14080-40-00 Bolt, Flange |
958-14080-40-00 |
from US $1.56 |
||
|
16
|
16
95811-08055-00 Bolt, Flange |
95811-08055-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
17
|
17
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.18 |
||
| replacements | |||||
|
17
|
17
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
17
|
17
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
18
|
18
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
19
|
19
583-23469-00-00
Cap, Bolt
|
583-23469-00-00 |
— | ||
|
20
|
20
4H7-23317-00-00
Holder, Cable
|
4H7-23317-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
21
|
21
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
22
|
22
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
23
|
23
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
23
|
23
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
24
|
24
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
24
|
24
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
25
|
25
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
25
|
25
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
26
|
26
2Y0-23416-00-00
Cover, Ball Race 2
|
2Y0-23416-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
27
|
27
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
27
|
27
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
28
|
28
3FU-83364-00-00 Wire, Earth (Ground) Lead 1 |
3FU-83364-00-00 |
from US $9.21 |
||
