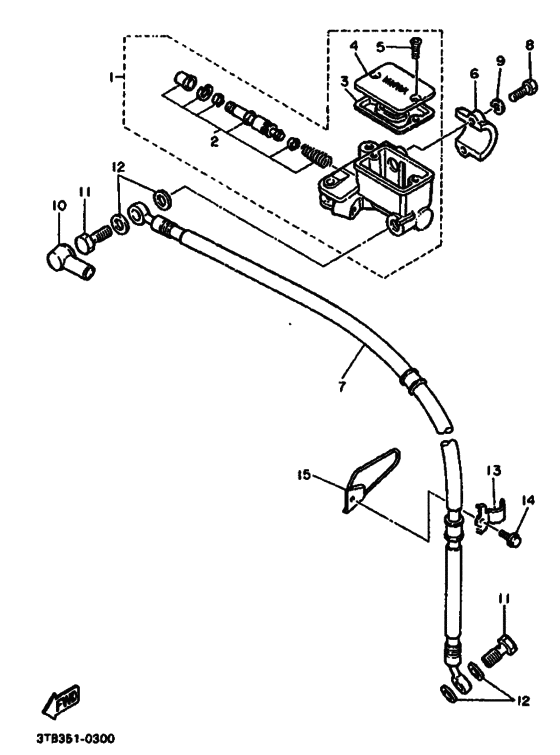

Front master cylinder Diagram Yamaha XT600 XT600
- Year
- 1990
- Colour
- Strong Blue (SB; 002F)
- Model code
- 3UY3
- Sales region
- Europe (010)
- Engine Capacity
- 600
- Color Variant
- A
- Model
- XT600E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3TB-25870-00-00 Master Cylinder Sub Assembly |
3TB-25870-00-00 |
from US $162.97 |
||
|
2
|
2
3TB-W0041-00-00 Cylinder Kit, Master |
3TB-W0041-00-00 |
from US $59.45 |
||
| replacement | |||||
|
2
|
2
23L-W0041-00-00 Cylinder Kit, Master |
23L-W0041-00-00 |
from US $59.45 |
||
|
3
|
3
4L0-25854-00-00 Gasket, Diaphragm |
4L0-25854-00-00 |
from US $15.26 |
||
|
4
|
4
4H7-25852-00-00 Cap, Reservoir |
4H7-25852-00-00 |
from US $21.69 |
||
|
5
|
5
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
5
|
5
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.43 |
||
|
6
|
6
4L0-25867-00-00 Holder |
4L0-25867-00-00 |
from US $11.05 |
||
|
7
|
7
3TB-25872-01-00
Brake Hose Set (3Tb)
|
3TB-25872-01-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99024-29-00
Brake Hose Set (3Tb)
|
999-99024-29-00 |
— | ||
|
8
|
8
97016-06025-00 Bolt |
97016-06025-00 |
from US $1.43 |
||
| replacement | |||||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.43 |
||
|
9
|
9
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $1.28 |
||
|
10
|
10
4L0-25862-00-00 Boot, Master Cylinder |
4L0-25862-00-00 |
from US $10.17 |
||
| replacement | |||||
|
10
|
10
4L0-25862-01-00 Boot, Master Cylinder |
4L0-25862-01-00 |
from US $10.17 |
||
|
11
|
11
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $2.99 |
||
| replacement | |||||
|
11
|
11
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $2.99 |
||
|
12
|
12
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.13 |
||
| replacement | |||||
|
12
|
12
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $0.80 |
||
|
13
|
13
90461-16124-00 Clamp |
90461-16124-00 |
from US $5.15 |
||
|
14
|
14
91001-06016-00 Bolt, Flange |
91001-06016-00 |
from US $0.90 |
||
| replacement | |||||
|
14
|
14
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $0.90 |
||
|
15
|
15
3TB-23318-00-00 Wire, Holder 1 |
3TB-23318-00-00 |
US $21.88 |
||
