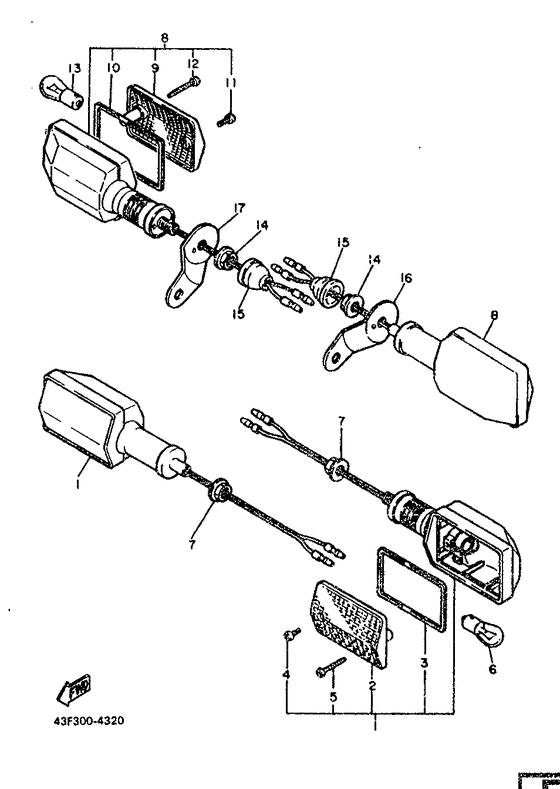

Flasher light Diagram Yamaha XT600 XT600
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 43F
- Sales region
- Germany (999)
- Engine Capacity
- 600
- Model
- XT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5Y3-83310-21-00 Front Flasher Light Assy 1 |
5Y3-83310-21-00 |
US $90.22 |
||
|
02
|
02
5Y1-83312-00-00 Lens, Flasher |
5Y1-83312-00-00 |
from US $12.19 |
||
|
03
|
03
5Y1-83313-00-00 Gasket, Flasher Lens |
5Y1-83313-00-00 |
from US $4.53 |
||
|
04
|
04
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
05
|
05
97701-40530-00 Screw, Tapping |
97701-40530-00 |
from US $2.27 |
||
| replacement | |||||
|
05
|
05
97707-40630-00 Screw, Tapping(3Ah) |
97707-40630-00 |
from US $2.50 |
||
|
07
|
07
95702-12100-00 Nut, Flange |
95702-12100-00 |
from US $1.80 |
||
| replacements | |||||
|
07
|
07
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
07
|
07
90179-12588-00 Nut, Flange |
90179-12588-00 |
from US $2.22 |
||
|
08
|
08
37A-83330-21-00 Rear Flasher Light Assembly 1 |
37A-83330-21-00 |
from US $75.99 |
||
|
09
|
09
10V-83312-00-00 Lens, Flasher |
10V-83312-00-00 |
US $12.61 |
||
| replacement | |||||
|
09
|
09
5Y1-83312-00-00 Lens, Flasher |
5Y1-83312-00-00 |
from US $12.19 |
||
|
10
|
10
5Y1-83313-00-00 Gasket, Flasher Lens |
5Y1-83313-00-00 |
from US $4.53 |
||
|
11
|
11
985-03040-10-00
Screw, Pan Head
|
985-03040-10-00 |
— | ||
| replacement | |||||
|
11
|
11
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
12
|
12
97701-40530-00 Screw, Tapping |
97701-40530-00 |
from US $2.27 |
||
| replacement | |||||
|
12
|
12
97707-40630-00 Screw, Tapping(3Ah) |
97707-40630-00 |
from US $2.50 |
||
|
14
|
14
95702-12100-00 Nut, Flange |
95702-12100-00 |
from US $1.80 |
||
| replacements | |||||
|
14
|
14
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
14
|
14
90179-12588-00 Nut, Flange |
90179-12588-00 |
from US $2.22 |
||
|
15
|
15
10V-83365-00-00 Cap |
10V-83365-00-00 |
US $5.38 |
||
| replacement | |||||
|
15
|
15
10V-83365-01-00 Cap |
10V-83365-01-00 |
from US $4.27 |
||
|
16
|
16
15A-83368-00-00 Stay, Flasher |
15A-83368-00-00 |
US $16.81 |
||
|
17
|
17
15A-83369-00-00 Stay, Flasher |
15A-83369-00-00 |
US $16.81 |
||
