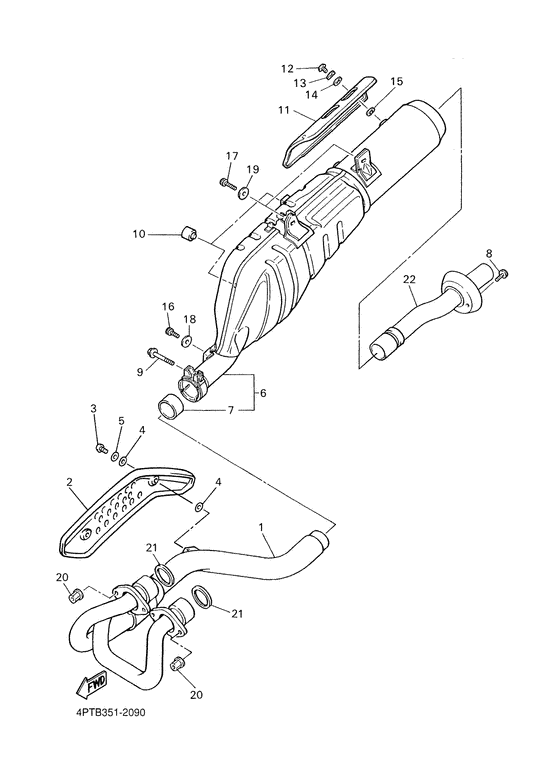

Exhaust system Diagram Yamaha XT600 XT600
- Year
- 2002
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 4PTB
- Sales region
- France (010)
- Engine Capacity
- 600
- Model
- XT600E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4PT-14611-00-00
Pipe, Exhaust 1
|
4PT-14611-00-00 |
— | ||
|
02
|
02
3YF-14628-00-00
Protector, Exhaust Pipe
|
3YF-14628-00-00 |
— | ||
|
03
|
03
92014-06012-00 Bolt, Button Head |
92014-06012-00 |
from US $1.18 |
||
|
04
|
04
4BD-14766-00-00 Washer, Protector |
4BD-14766-00-00 |
from US $2.09 |
||
|
05
|
05
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
06
|
06
4PT-14711-10-00 Muffler 1 |
4PT-14711-10-00 |
US $1,015.08 |
||
|
07
|
07
3YF-14755-00-00 Gasket, Silencer |
3YF-14755-00-00 |
from US $24.09 |
||
|
08
|
08
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.28 |
||
|
09
|
09
95027-08045-00 Bolt, Flange |
95027-08045-00 |
from US $1.56 |
||
|
10
|
10
1UJ-27114-00-00 Stopper, Main Stand |
1UJ-27114-00-00 |
from US $8.22 |
||
|
11
|
11
3TB-14728-00-00 Protector, Muffler 2 |
3TB-14728-00-00 |
from US $123.92 |
||
|
12
|
12
98980-06010-00 Screw, Bind |
98980-06010-00 |
from US $1.39 |
||
| replacement | |||||
|
12
|
12
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
13
|
13
90206-06090-00 Washer, Wave(3Rw) J |
90206-06090-00 |
from US $1.70 |
||
|
14
|
14
4BD-14766-00-00 Washer, Protector |
4BD-14766-00-00 |
from US $2.09 |
||
|
15
|
15
4BD-14766-00-00 Washer, Protector |
4BD-14766-00-00 |
from US $2.09 |
||
|
16
|
16
90109-082G0-00 Bolt |
90109-082G0-00 |
from US $1.70 |
||
| replacement | |||||
|
16
|
16
90109-085E2-00 Bolt (2Kf) |
90109-085E2-00 |
from US $1.70 |
||
|
17
|
17
90105-10186-00
Bolt, Flange
|
90105-10186-00 |
— | ||
|
18
|
18
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.81 |
||
| replacement | |||||
|
18
|
18
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
|
19
|
19
90201-102J5-00 Washer, Plate |
90201-102J5-00 |
from US $3.83 |
||
|
20
|
20
90179-06668-00 Nut |
90179-06668-00 |
from US $1.70 |
||
|
21
|
21
3YF-14613-01-00 Gasket, Exhaust Pipe |
3YF-14613-01-00 |
from US $3.38 |
||
|
22
|
22
4PT-14752-10-00
Pipe, Outlet
|
4PT-14752-10-00 |
— | ||
