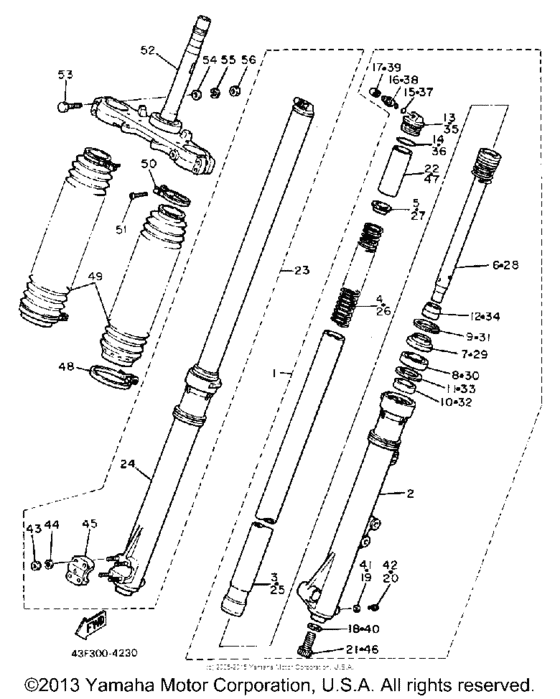

Front fork Diagram Yamaha XT600 XT600
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 600
- Model
- XT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43F-W2313-00-00
Frt Fork Assembly Lh
LH |
43F-W2313-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
LH |
999-99999-99-00 |
— | ||
|
2
|
2
43F-23126-10-38
Tube, Outer 1
|
43F-23126-10-38 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
43F-23110-10-00
Inner Tube 1
|
43F-23110-10-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
43F-23141-10-00
Spring, Front Fork
|
43F-23141-10-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
43F-23142-10-00
Seat, Spring Upper
|
43F-23142-10-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
43F-23170-10-00
Cylinder, Frtfrk
|
43F-23170-10-00 |
— | ||
|
7
|
7
43F-23144-10-00 Seal, Dust |
43F-23144-10-00 |
from US $16.46 |
||
|
8
|
8
43F-23145-10-00 Oil Seal |
43F-23145-10-00 |
from US $18.13 |
||
|
9
|
9
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $3.74 |
||
|
10
|
10
3JD-23125-L0-00 Metal, Slide 1 |
3JD-23125-L0-00 |
from US $20.64 |
||
| replacement | |||||
|
10
|
10
4FM-23125-40-00 Metal, Slide 1 |
4FM-23125-40-00 |
from US $20.64 |
||
|
11
|
11
36Y-23146-10-00 Washer, Oil Seal |
36Y-23146-10-00 |
from US $6.73 |
||
|
12
|
12
4V4-23173-L0-00 Spindle, Taper |
4V4-23173-L0-00 |
from US $30.37 |
||
|
13
|
13
43F-23111-10-00
Bolt, Cap
|
43F-23111-10-00 |
— | ||
|
14
|
14
43F-23188-10-00 O-Ring |
43F-23188-10-00 |
from US $2.12 |
||
|
15
|
15
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $1.69 |
||
|
16
|
16
4V4-23190-L0-00 Air Valve |
4V4-23190-L0-00 |
from US $36.05 |
||
|
17
|
17
509-23184-L0-00 Cap, Air Valve |
509-23184-L0-00 |
from US $6.19 |
||
|
18
|
18
4V4-23158-L0-00 Gasket |
4V4-23158-L0-00 |
from US $2.54 |
||
|
19
|
19
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $2.84 |
||
|
20
|
20
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacement | |||||
|
20
|
20
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
US $1.28 |
||
|
21
|
21
4V4-23181-L0-00 Bolt, Hexagon Socket Head |
4V4-23181-L0-00 |
from US $4.14 |
||
|
22
|
22
43F-23118-10-00
Spacer
|
43F-23118-10-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
43F-W2314-00-00
Frt Fork Assembly Rh
RH |
43F-W2314-00-00 |
— | ||
|
24
|
24
43F-23136-10-38
Tube, Outer 2
|
43F-23136-10-38 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
43F-23110-10-00
Inner Tube 1
|
43F-23110-10-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
43F-23141-10-00
Spring, Front Fork
|
43F-23141-10-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
43F-23142-10-00
Seat, Spring Upper
|
43F-23142-10-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
43F-23170-10-00
Cylinder, Frtfrk
|
43F-23170-10-00 |
— | ||
|
29
|
29
43F-23144-10-00 Seal, Dust |
43F-23144-10-00 |
from US $16.46 |
||
|
30
|
30
43F-23145-10-00 Oil Seal |
43F-23145-10-00 |
from US $18.13 |
||
|
31
|
31
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $3.74 |
||
|
32
|
32
3JD-23125-L0-00 Metal, Slide 1 |
3JD-23125-L0-00 |
from US $20.64 |
||
| replacement | |||||
|
32
|
32
4FM-23125-40-00 Metal, Slide 1 |
4FM-23125-40-00 |
from US $20.64 |
||
|
33
|
33
36Y-23146-10-00 Washer, Oil Seal |
36Y-23146-10-00 |
from US $6.73 |
||
|
34
|
34
4V4-23173-L0-00 Spindle, Taper |
4V4-23173-L0-00 |
from US $30.37 |
||
|
35
|
35
43F-23111-10-00
Bolt, Cap
|
43F-23111-10-00 |
— | ||
|
36
|
36
43F-23188-10-00 O-Ring |
43F-23188-10-00 |
from US $2.12 |
||
|
37
|
37
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $1.69 |
||
|
38
|
38
4V4-23190-L0-00 Air Valve |
4V4-23190-L0-00 |
from US $36.05 |
||
|
39
|
39
509-23184-L0-00 Cap, Air Valve |
509-23184-L0-00 |
from US $6.19 |
||
|
40
|
40
4V4-23158-L0-00 Gasket |
4V4-23158-L0-00 |
from US $2.54 |
||
|
41
|
41
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $2.84 |
||
|
42
|
42
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacement | |||||
|
42
|
42
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
US $1.28 |
||
|
43
|
43
95311-06600-00 Nut |
95311-06600-00 |
from US $1.05 |
||
| replacement | |||||
|
43
|
43
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.05 |
||
|
44
|
44
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
45
|
45
4V2-23167-L0-00
Holder, Axle
|
4V2-23167-L0-00 |
— | ||
| replacement | |||||
|
45
|
45
3XJ-23167-L0-00 Holder, Axle |
3XJ-23167-L0-00 |
from US $22.88 |
||
|
46
|
46
4V4-23181-L0-00 Bolt, Hexagon Socket Head |
4V4-23181-L0-00 |
from US $4.14 |
||
|
47
|
47
43F-23118-10-00
Spacer
|
43F-23118-10-00 |
— | ||
| replacement | |||||
|
47
|
47
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
48
|
48
3LD-23489-00-00 Band |
3LD-23489-00-00 |
from US $14.36 |
||
|
49
|
49
43F-23191-11-00 Boot (Chappy Red) |
43F-23191-11-00 |
from US $68.90 |
||
|
50
|
50
43M-23192-L0-00 Band |
43M-23192-L0-00 |
from US $3.62 |
||
|
51
|
51
985-06040-18-00
Screw, Panhead
|
985-06040-18-00 |
— | ||
| replacement | |||||
|
51
|
51
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.50 |
||
|
52
|
52
43F-23340-30-39
Under Bracket
NO BUFF |
43F-23340-30-39 |
— | ||
| replacement | |||||
|
52
|
52
999-99999-99-00
Not Available
NO BUFF |
999-99999-99-00 |
— | ||
|
53
|
53
90101-08340-00 Bolt |
90101-08340-00 |
from US $4.03 |
||
|
54
|
54
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
54
|
54
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.38 |
||
|
55
|
55
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.50 |
||
|
56
|
56
953-33086-00-00
Nut
|
953-33086-00-00 |
— | ||
| replacement | |||||
|
56
|
56
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.40 |
||
