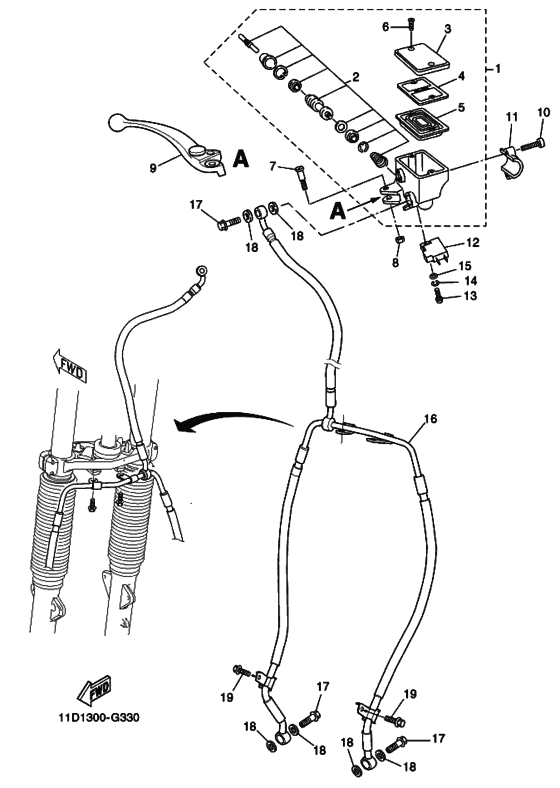

Front master cylinder Diagram Yamaha XT660 XT660Z Tenere
- Year
- 2009
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 11D2
- Sales region
- Europe (010)
- Engine Capacity
- 660
- Color Variant
- B
- Model
- XT660Z Tenere
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5PS-W2587-00-00 Master Cylinder Sub Assy |
5PS-W2587-00-00 |
US $219.44 |
||
|
2
|
2
5VS-W0041-00-00
Cylinder Kit, Master
|
5VS-W0041-00-00 |
— | ||
| replacement | |||||
|
2
|
2
2D1-25807-00-00 Cylinder Kit, Master |
2D1-25807-00-00 |
from US $45.38 |
||
|
3
|
3
5VS-25852-00-00 Cap, Reservoir |
5VS-25852-00-00 |
from US $12.06 |
||
|
4
|
4
5VS-25855-00-00 Bush, Diaphragm |
5VS-25855-00-00 |
from US $1.94 |
||
|
5
|
5
20S-25854-00-00 Diaphragm, Reservoir |
20S-25854-00-00 |
from US $11.10 |
||
|
6
|
6
5VS-2589H-00-00 Screw |
5VS-2589H-00-00 |
from US $1.81 |
||
|
7
|
7
5VS-2589F-00-00 Bolt, Lever |
5VS-2589F-00-00 |
from US $1.94 |
||
|
8
|
8
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
9
|
9
5VS-83922-00-00 Lever 2 |
5VS-83922-00-00 |
from US $49.57 |
||
|
10
|
10
5VS-26332-00-00 Bolt |
5VS-26332-00-00 |
from US $1.81 |
||
|
11
|
11
5VS-25867-00-00 Bracket, Master Cylinder |
5VS-25867-00-00 |
from US $12.06 |
||
|
12
|
12
4HM-83980-00-00 Front Stop Switch Assy |
4HM-83980-00-00 |
from US $24.97 |
||
|
13
|
13
98502-04012-00 Screw, Pan Head |
98502-04012-00 |
from US $1.07 |
||
| replacements | |||||
|
13
|
13
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
13
|
13
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
14
|
14
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
15
|
15
929-02046-00-00 Washer, Plate |
929-02046-00-00 |
from US $0.95 |
||
| replacement | |||||
|
15
|
15
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
16
|
16
11D-F5872-00-00
Hose, Brake 1
|
11D-F5872-00-00 |
— | ||
|
17
|
17
90401-10X03-00 Bolt, Union |
90401-10X03-00 |
US $7.51 |
||
|
18
|
18
90201-10X07-00 Washer, Plate |
90201-10X07-00 |
US $1.28 |
||
|
19
|
19
95024-06012-00 Bolt, Flange (Small Head) |
95024-06012-00 |
from US $1.56 |
||
