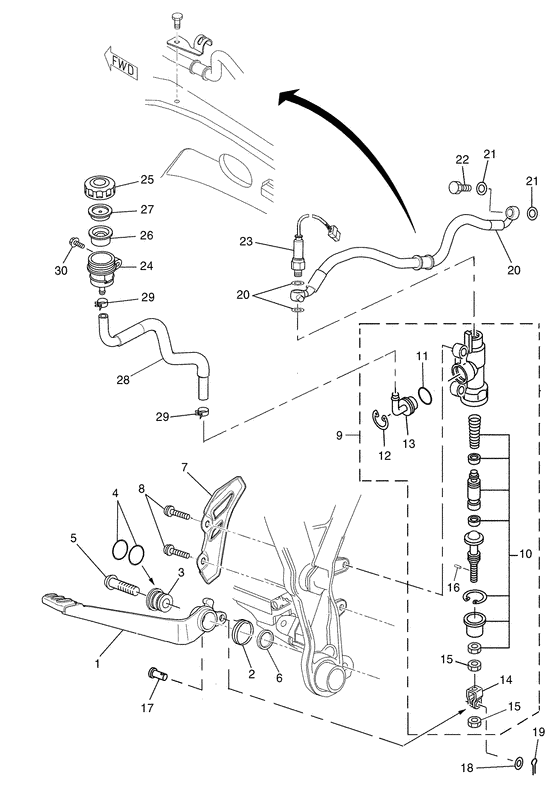

Rear master cylinder Diagram Yamaha XT660 XT660Z Tenere
- Year
- 2009
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 11D2
- Sales region
- Belgium (020)
- Engine Capacity
- 660
- Model
- XT660Z Tenere
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
11D-F7211-00-00
Pedal, Brake
|
11D-F7211-00-00 |
— | ||
|
02
|
02
11D-F7216-00-00
Spring, Return
|
11D-F7216-00-00 |
— | ||
|
03
|
03
5YK-F7213-00-00 Collar |
5YK-F7213-00-00 |
from US $10.21 |
||
|
04
|
04
93210-15414-00 O-Ring |
93210-15414-00 |
from US $1.35 |
||
| replacement | |||||
|
04
|
04
93210-15566-00 O-Ring (22U) |
93210-15566-00 |
from US $1.52 |
||
|
05
|
05
92017-10045-00 Bolt, Button Head |
92017-10045-00 |
from US $3.26 |
||
|
06
|
06
902-01100-L3-00
Washer, Plate
|
902-01100-L3-00 |
— | ||
| replacement | |||||
|
06
|
06
90201-106F2-00 Washer, Plate (17K) |
90201-106F2-00 |
from US $2.22 |
||
|
07
|
07
11D-F7446-00-00
Plate 2
|
11D-F7446-00-00 |
— | ||
|
08
|
08
92014-08025-00 Bolt, Button Head |
92014-08025-00 |
from US $1.56 |
||
|
09
|
09
5VK-2583V-00-00 Rr. Master Cylinder Assy |
5VK-2583V-00-00 |
US $142.30 |
||
|
10
|
10
3BN-W0042-50-00 Cylinder Kit, Master |
3BN-W0042-50-00 |
from US $50.45 |
||
| replacement | |||||
|
10
|
10
1FK-W0042-50-00 Cylinder Kit, Master |
1FK-W0042-50-00 |
from US $76.09 |
||
|
11
|
11
93210-15620-00 O-Ring |
93210-15620-00 |
from US $1.39 |
||
| replacement | |||||
|
11
|
11
93210-15566-00 O-Ring (22U) |
93210-15566-00 |
from US $1.52 |
||
|
12
|
12
2VN-25866-00-00 Circlip |
2VN-25866-00-00 |
from US $3.12 |
||
|
13
|
13
4ML-2582A-50-00 Joint |
4ML-2582A-50-00 |
from US $9.49 |
||
|
14
|
14
2YK-27222-00-00 Joint |
2YK-27222-00-00 |
from US $7.65 |
||
|
15
|
15
4SS-27218-00-00 Nut |
4SS-27218-00-00 |
from US $1.81 |
||
| replacement | |||||
|
15
|
15
95317-08700-00 Nut, Hexagon Small |
95317-08700-00 |
from US $1.81 |
||
|
16
|
16
3KW-27234-00-00 Pin, Brake Rod |
3KW-27234-00-00 |
from US $4.99 |
||
|
17
|
17
90240-08124-00 Pin, Clevis |
90240-08124-00 |
from US $1.84 |
||
|
18
|
18
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
19
|
19
914-01200-12-00
Pin, Cotter
|
914-01200-12-00 |
— | ||
| replacements | |||||
|
19
|
19
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
19
|
19
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
20
|
20
11D-F5873-00-00
Hose, Brake 2
|
11D-F5873-00-00 |
— | ||
|
21
|
21
90201-10X07-00 Washer, Plate |
90201-10X07-00 |
US $1.28 |
||
|
22
|
22
90401-10X03-00 Bolt, Union |
90401-10X03-00 |
US $7.51 |
||
|
23
|
23
11D-H2530-00-00
Stop Switch Assy
|
11D-H2530-00-00 |
— | ||
|
24
|
24
5JJ-25894-00-00 Tank, Reservoir |
5JJ-25894-00-00 |
from US $10.06 |
||
| replacement | |||||
|
24
|
24
5JJ-25894-01-00 Tank, Reservoir |
5JJ-25894-01-00 |
from US $10.06 |
||
|
25
|
25
3XP-25852-50-00 Cap, Reservoir |
3XP-25852-50-00 |
from US $9.10 |
||
|
26
|
26
2VN-25854-00-00 Diaphragm, Reservoir |
2VN-25854-00-00 |
from US $14.45 |
||
|
27
|
27
2VN-25855-00-00 Bush,diaphragm |
2VN-25855-00-00 |
from US $6.52 |
||
|
28
|
28
11D-25895-00-00
Hose, Reservoir
|
11D-25895-00-00 |
— | ||
|
29
|
29
90467-12085-00 Clip |
90467-12085-00 |
from US $4.86 |
||
|
30
|
30
901-19060-44-00
Bolt, With Washer
|
901-19060-44-00 |
— | ||
| replacement | |||||
|
30
|
30
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
