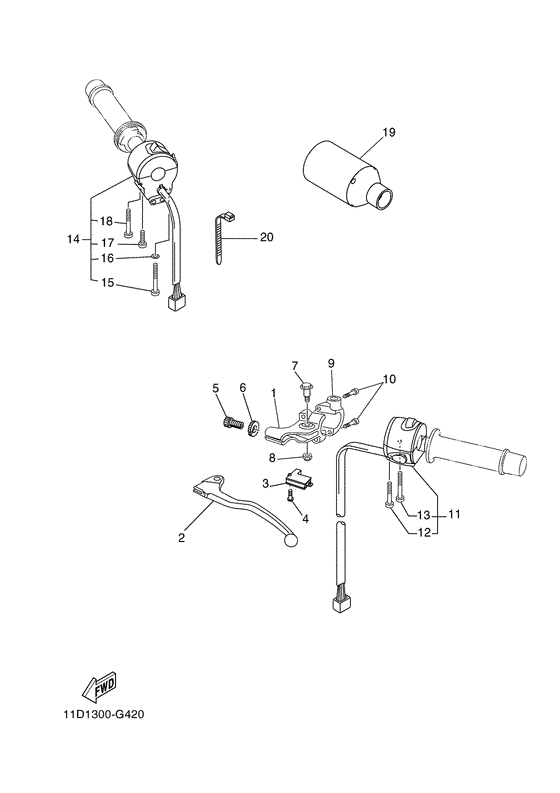

Handle switch & lever Diagram Yamaha XT660 XT660Z Tenere
- Year
- 2009
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 11D2
- Sales region
- Portugal (030)
- Engine Capacity
- 660
- Model
- XT660Z Tenere
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
11D-H2911-00-00
Holder, Lever 1
|
11D-H2911-00-00 |
— | ||
|
02
|
02
11D-H3912-00-00
Lever 1
|
11D-H3912-00-00 |
— | ||
|
03
|
03
3YX-82917-01-00 Switch |
3YX-82917-01-00 |
from US $21.77 |
||
|
04
|
04
98707-03020-00 Screw, Flat Head |
98707-03020-00 |
from US $1.56 |
||
|
05
|
05
11D-H3951-00-00
Bolt, Cable Adjusting
|
11D-H3951-00-00 |
— | ||
|
06
|
06
5D7-H3927-00-00 Nut, Adjusting |
5D7-H3927-00-00 |
US $6.94 |
||
|
07
|
07
11D-H3945-00-00
Bolt, Lever
|
11D-H3945-00-00 |
— | ||
|
08
|
08
90185-06837-00
Nut, Self-Locking
|
90185-06837-00 |
— | ||
|
09
|
09
11D-H2913-00-00
Holder, Lever Lower 1
|
11D-H2913-00-00 |
— | ||
|
10
|
10
11D-H3546-00-00
Bolt
|
11D-H3546-00-00 |
— | ||
|
11
|
11
5VK-83969-00-00 Switch, Handle 5 |
5VK-83969-00-00 |
US $165.79 |
||
|
12
|
12
985-07050-30-00
Screw, Pan Head
|
985-07050-30-00 |
— | ||
| replacement | |||||
|
12
|
12
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
13
|
13
98507-05045-00 Screw, Pan Head |
98507-05045-00 |
from US $1.52 |
||
|
14
|
14
5VK-83975-00-00 Switch, Handle 2 |
5VK-83975-00-00 |
US $86.07 |
||
|
15
|
15
985-07050-55-00
Screw, Pan Head
|
985-07050-55-00 |
— | ||
| replacement | |||||
|
15
|
15
985-06050-55-00 Screw, Pan Head (4As) |
985-06050-55-00 |
from US $1.42 |
||
|
16
|
16
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
17
|
17
98507-05045-00 Screw, Pan Head |
98507-05045-00 |
from US $1.52 |
||
|
18
|
18
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
18
|
18
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
19
|
19
11D-H1662-00-00
Cover, Connecter
|
11D-H1662-00-00 |
— | ||
|
20
|
20
90464-25004-00 Clamp |
90464-25004-00 |
from US $1.98 |
||
