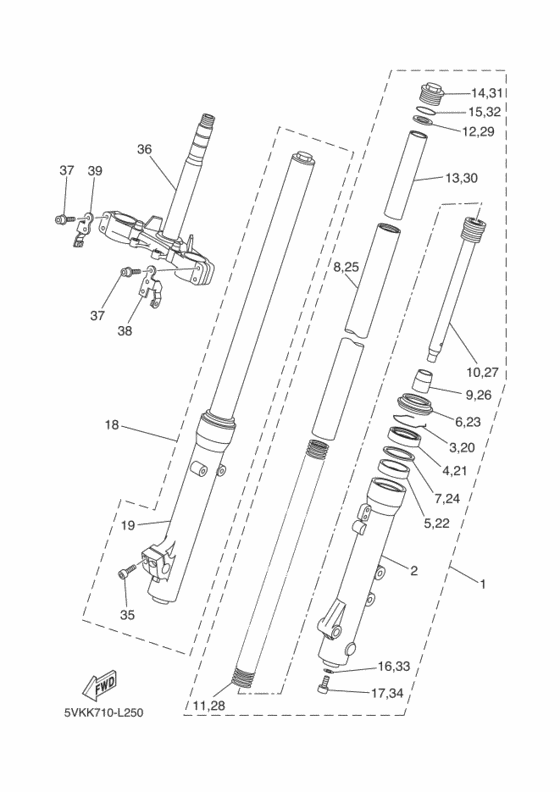

Front fork Diagram Yamaha XT660 XT660R
- Year
- 2014
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 5VKL
- Sales region
- Europe (060)
- Engine Capacity
- 660
- Color Variant
- A
- Model
- XT660R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VK-23102-20-00
Front fork assy
|
5VK-23102-20-00 |
— | ||
|
2
|
2
5VK-23126-20-00 Tube, Outer (L.h) |
5VK-23126-20-00 |
US $470.58 |
||
|
3
|
3
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
from US $4.50 |
||
|
4
|
4
4DA-23145-L0-00
Oil Seal
|
4DA-23145-L0-00 |
— | ||
| replacements | |||||
|
4
|
4
3XJ-23145-L0-00 Oil Seal |
3XJ-23145-L0-00 |
from US $15.84 |
||
|
4
|
4
4PU-23145-01-00 Oil Seal |
4PU-23145-01-00 |
from US $12.46 |
||
|
5
|
5
5EB-23125-00-00 Metal, Slide 1 |
5EB-23125-00-00 |
from US $20.67 |
||
|
6
|
6
4DA-23144-L0-00 Seal, Dust |
4DA-23144-L0-00 |
from US $17.61 |
||
| replacement | |||||
|
6
|
6
4PU-23144-00-00 Seal, Dust |
4PU-23144-00-00 |
from US $11.12 |
||
|
7
|
7
4V4-23146-L0-00 Washer, Oil Seal |
4V4-23146-L0-00 |
from US $9.29 |
||
|
8
|
8
5VK-23110-20-00
Inner Tube Comp.1
|
5VK-23110-20-00 |
— | ||
|
9
|
9
4YR-23173-00-00 Spindle, Taper |
4YR-23173-00-00 |
from US $24.70 |
||
|
10
|
10
5VK-23170-20-00
Cylinder comp., front fork
|
5VK-23170-20-00 |
— | ||
|
11
|
11
5VK-23141-20-00
Spring, Front Fork
|
5VK-23141-20-00 |
— | ||
|
12
|
12
3LR-23149-00-00 Washer, Spring Upper |
3LR-23149-00-00 |
from US $8.78 |
||
|
13
|
13
5WM-23118-00-00 Spacer |
5WM-23118-00-00 |
from US $9.78 |
||
|
14
|
14
3TJ-23111-00-00 Bolt, Cap |
3TJ-23111-00-00 |
from US $73.28 |
||
|
15
|
15
4V4-23188-L0-00 O-Ring |
4V4-23188-L0-00 |
from US $8.36 |
||
|
16
|
16
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
17
|
17
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
18
|
18
5VK-23103-20-00
Front fork assy
|
5VK-23103-20-00 |
— | ||
|
19
|
19
5VK-23136-20-00
Tube, Outer
|
5VK-23136-20-00 |
— | ||
|
20
|
20
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
from US $4.50 |
||
|
21
|
21
4DA-23145-L0-00
Oil Seal
|
4DA-23145-L0-00 |
— | ||
| replacements | |||||
|
21
|
21
3XJ-23145-L0-00 Oil Seal |
3XJ-23145-L0-00 |
from US $15.84 |
||
|
21
|
21
4PU-23145-01-00 Oil Seal |
4PU-23145-01-00 |
from US $12.46 |
||
|
22
|
22
5EB-23125-00-00 Metal, Slide 1 |
5EB-23125-00-00 |
from US $20.67 |
||
|
23
|
23
4DA-23144-L0-00 Seal, Dust |
4DA-23144-L0-00 |
from US $17.61 |
||
| replacement | |||||
|
23
|
23
4PU-23144-00-00 Seal, Dust |
4PU-23144-00-00 |
from US $11.12 |
||
|
24
|
24
4V4-23146-L0-00 Washer, Oil Seal |
4V4-23146-L0-00 |
from US $9.29 |
||
|
25
|
25
5VK-23110-20-00
Inner Tube Comp.1
|
5VK-23110-20-00 |
— | ||
|
26
|
26
4YR-23173-00-00 Spindle, Taper |
4YR-23173-00-00 |
from US $24.70 |
||
|
27
|
27
5VK-23170-20-00
Cylinder comp., front fork
|
5VK-23170-20-00 |
— | ||
|
28
|
28
5VK-23141-20-00
Spring, Front Fork
|
5VK-23141-20-00 |
— | ||
|
29
|
29
3LR-23149-00-00 Washer, Spring Upper |
3LR-23149-00-00 |
from US $8.78 |
||
|
30
|
30
5WM-23118-00-00 Spacer |
5WM-23118-00-00 |
from US $9.78 |
||
|
31
|
31
3TJ-23111-00-00 Bolt, Cap |
3TJ-23111-00-00 |
from US $73.28 |
||
|
32
|
32
4V4-23188-L0-00 O-Ring |
4V4-23188-L0-00 |
from US $8.36 |
||
|
33
|
33
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
34
|
34
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
35
|
35
91312-08025-00 Bolt |
91312-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
35
|
35
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $1.16 |
||
|
36
|
36
11D-23340-10-00
Under Bracket Comp
|
11D-23340-10-00 |
— | ||
|
37
|
37
950-22080-40-00
Bolt, Flange (Small Head)
|
950-22080-40-00 |
— | ||
| replacement | |||||
|
37
|
37
95024-08040-00 Bolt, Flange |
95024-08040-00 |
from US $1.52 |
||
|
38
|
38
5VK-2334G-20-00
Bracket 1
|
5VK-2334G-20-00 |
— | ||
|
39
|
39
5VK-2334H-20-00
Bracket 2
|
5VK-2334H-20-00 |
— | ||
