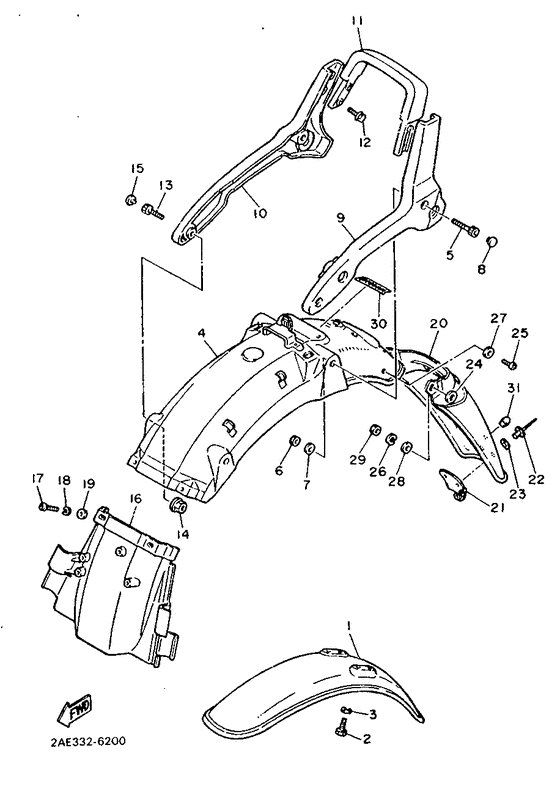

Fender Diagram Yamaha XV1000 Virago
- Year
- 1986
- Colour
- Faraway Blue (FWB; 00NJ)
- Model code
- 2AE
- Sales region
- England (999)
- Engine Capacity
- 1000
- Model
- XV1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
42X-21510-00-93
Fender, Front
Chrome-plated |
42X-21510-00-93 |
— | ||
|
02
|
02
97321-06012-00 Bolt |
97321-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
02
|
02
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
02
|
02
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
03
|
03
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
03
|
03
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
04
|
04
2AE-21610-00-93
Rear Fender Comp
Chrome-plated |
2AE-21610-00-93 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
Chrome-plated |
999-99999-99-00 |
— | ||
|
05
|
05
91311-10040-00 Bolt |
91311-10040-00 |
from US $5.29 |
||
| replacement | |||||
|
05
|
05
91317-10040-00 Bolt |
91317-10040-00 |
from US $5.81 |
||
|
06
|
06
98380-10600-00
Screw, cylinder head
|
98380-10600-00 |
— | ||
|
07
|
07
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
08
|
08
90338-10164-00 Plug |
90338-10164-00 |
from US $3.89 |
||
|
09
|
09
42H-2164F-01-00
Stay 1
|
42H-2164F-01-00 |
— | ||
| replacement | |||||
|
09
|
09
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
42H-2164G-01-00
Stay 2
|
42H-2164G-01-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
2AE-2164A-00-00
Grip 1
|
2AE-2164A-00-00 |
— | ||
|
12
|
12
95821-06016-00 Bolt, Flange |
95821-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
13
|
13
91311-06016-00 Bolt, Hexagon Socket Head |
91311-06016-00 |
from US $1.52 |
||
| replacement | |||||
|
13
|
13
91314-06016-00 Bolt, Hexagon Socket Head |
91314-06016-00 |
from US $1.42 |
||
|
14
|
14
957-02085-00-00
Nut, Flange
|
957-02085-00-00 |
— | ||
| replacements | |||||
|
14
|
14
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
14
|
14
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
14
|
14
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
|
15
|
15
903-38081-63-00 Plug (Chrome) |
903-38081-63-00 |
from US $2.36 |
||
|
16
|
16
42X-21629-00-00
Guard, Mud
|
42X-21629-00-00 |
— | ||
|
17
|
17
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
18
|
18
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
19
|
19
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
20
|
20
2AE-21621-00-00
Flap
|
2AE-21621-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
2AE-21641-00-00
Bracket, Reflector
|
2AE-21641-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
23
|
23
90201-044A2-00 Washer, Plate |
90201-044A2-00 |
from US $1.82 |
||
| replacement | |||||
|
23
|
23
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
24
|
24
90430-06139-00 Gasket |
90430-06139-00 |
from US $1.28 |
||
| replacement | |||||
|
24
|
24
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
25
|
25
92503-06014-00 Screw, Pan Head(2Ae) |
92503-06014-00 |
US $1.07 |
||
| replacement | |||||
|
25
|
25
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
26
|
26
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
27
|
27
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
28
|
28
92901-06200-00 Washer, Plain |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
28
|
28
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
29
|
29
95302-06600-00 Nut, Hexagon |
95302-06600-00 |
US $1.07 |
||
| replacement | |||||
|
29
|
29
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
30
|
30
3N6-24786-10-00 Emblem |
3N6-24786-10-00 |
from US $9.77 |
||
| replacement | |||||
|
30
|
30
99245-00080-00 Emblem, Yamaha |
99245-00080-00 |
from US $10.06 |
||
|
31
|
31
4G0-21639-00-00 Damper 2 |
4G0-21639-00-00 |
from US $2.41 |
||
| replacement | |||||
|
31
|
31
903-38070-18-00 Plug |
903-38070-18-00 |
from US $4.82 |
||
