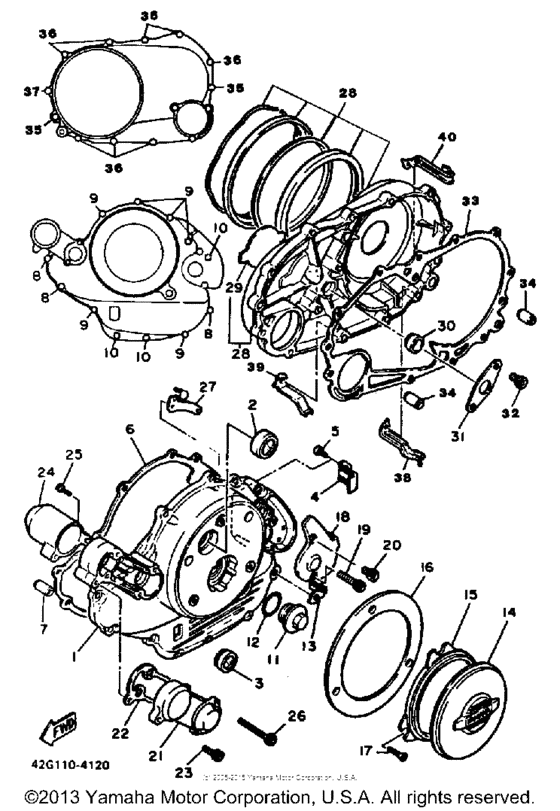

Crankcase cover Diagram Yamaha XV1000 Virago
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- XV1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42H-15411-01-00
Cover, Crankcase L
|
42H-15411-01-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
4X7-15361-00-00
Gauge, Level
|
4X7-15361-00-00 |
— | ||
|
3
|
3
2H7-15361-00-00 Gauge, Level |
2H7-15361-00-00 |
from US $28.71 |
||
|
4
|
4
905-62080-73-00
New Genuine Part
IN PRICE BOOK |
905-62080-73-00 |
— | ||
|
5
|
5
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
6
|
6
3EG-15451-00-00 Gasket, Crankcase Cover 1 |
3EG-15451-00-00 |
from US $33.01 |
||
|
7
|
7
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
7
|
7
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
7
|
7
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
8
|
8
913-11060-40-00
Bolt, Hexagon Socket Head
|
913-11060-40-00 |
— | ||
| replacement | |||||
|
8
|
8
91314-06040-00 Bolt, Hexagon Socket Head |
91314-06040-00 |
from US $1.52 |
||
|
9
|
9
91311-06030-00 Bolt, Hexagon Socket Head |
91311-06030-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
91314-06030-00 Bolt, Hexagon Socket Head |
91314-06030-00 |
from US $1.42 |
||
|
10
|
10
91311-06020-00 Bolt, Hexagon Socket Head |
91311-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.39 |
||
|
11
|
11
1L9-11186-00-00 Cover, Cyl. Head 2 |
1L9-11186-00-00 |
from US $17.34 |
||
|
12
|
12
932-10321-72-00 O-Ring |
932-10321-72-00 |
from US $1.94 |
||
|
13
|
13
90462-08076-00
Clamp
|
90462-08076-00 |
— | ||
|
14
|
14
42X-15415-01-00 Cover, Generator |
42X-15415-01-00 |
US $154.26 |
||
|
15
|
15
4X7-15455-00-00
Gasket 1
|
4X7-15455-00-00 |
— | ||
|
16
|
16
42H-15425-00-00
Cover, Generator R
|
42H-15425-00-00 |
— | ||
|
17
|
17
98780-06016-00 Screw, Flat Head (92603-06016)92603-06016 |
98780-06016-00 |
from US $4.25 |
||
|
18
|
18
42X-15417-01-00
Cover, Cap
|
42X-15417-01-00 |
— | ||
|
19
|
19
91311-06055-00 Bolt, Hexagon Socket Head |
91311-06055-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
91314-06055-00 Bolt, Hexagon Socket Head |
91314-06055-00 |
from US $1.42 |
||
|
20
|
20
91311-06016-00 Bolt, Hexagon Socket Head |
91311-06016-00 |
from US $1.52 |
||
| replacement | |||||
|
20
|
20
91314-06016-00 Bolt, Hexagon Socket Head |
91314-06016-00 |
from US $1.42 |
||
|
21
|
21
42H-15419-01-00
Cover, Shifter 1
|
42H-15419-01-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
5A8-15459-00-00
Gasket, Shfter Cur
|
5A8-15459-00-00 |
— | ||
| replacement | |||||
|
22
|
22
5A8-15459-10-00
Gasket, Shifter Cover
|
5A8-15459-10-00 |
— | ||
|
23
|
23
91311-06020-00 Bolt, Hexagon Socket Head |
91311-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
23
|
23
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.39 |
||
|
24
|
24
5A8-15429-00-00
Cover, Shifter
|
5A8-15429-00-00 |
— | ||
|
25
|
25
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
25
|
25
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
26
|
26
91311-06070-00 Bolt, Hexagon Socket Head |
91311-06070-00 |
from US $1.84 |
||
| replacement | |||||
|
26
|
26
91314-06070-00 Bolt, Hexagon Socket Head |
91314-06070-00 |
from US $1.84 |
||
|
27
|
27
42X-15441-00-00
Holder, Clutch Cable
|
42X-15441-00-00 |
— | ||
|
28
|
28
42H-W1542-01-00
Cover, Crankcase R
|
42H-W1542-01-00 |
— | ||
|
29
|
29
42X-15447-00-00
Emblem
|
42X-15447-00-00 |
— | ||
|
30
|
30
931-01141-02-00 Oil Seal |
931-01141-02-00 |
from US $8.74 |
||
|
31
|
31
4X7-15388-00-00 Plate, Bearing Cover |
4X7-15388-00-00 |
from US $3.68 |
||
|
32
|
32
913-16060-16-00
Bolt
|
913-16060-16-00 |
— | ||
| replacement | |||||
|
32
|
32
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.18 |
||
|
33
|
33
3EG-15462-00-00 Gasket, Crankcase Cover 3 |
3EG-15462-00-00 |
from US $27.34 |
||
|
34
|
34
99530-10020-00 Pin, Dowel |
99530-10020-00 |
from US $1.43 |
||
| replacement | |||||
|
34
|
34
995-30101-20-00 Pin, Dowel |
995-30101-20-00 |
from US $1.52 |
||
|
35
|
35
913-11060-40-00
Bolt, Hexagon Socket Head
|
913-11060-40-00 |
— | ||
| replacement | |||||
|
35
|
35
91314-06040-00 Bolt, Hexagon Socket Head |
91314-06040-00 |
from US $1.52 |
||
|
36
|
36
91311-06025-00 Bolt, Hexagon Socket Head |
91311-06025-00 |
US $1.56 |
||
| replacement | |||||
|
36
|
36
91314-06025-00 Bolt, Hexagon Socket Head |
91314-06025-00 |
from US $1.66 |
||
|
37
|
37
91311-06030-00 Bolt, Hexagon Socket Head |
91311-06030-00 |
from US $1.42 |
||
| replacement | |||||
|
37
|
37
91314-06030-00 Bolt, Hexagon Socket Head |
91314-06030-00 |
from US $1.42 |
||
|
38
|
38
90462-10143-00
Clamp
|
90462-10143-00 |
— | ||
| replacements | |||||
|
38
|
38
904-62100-05-00
Clamp (42G)
|
904-62100-05-00 |
— | ||
|
38
|
38
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
39
|
39
90462-10085-00 Clamp |
90462-10085-00 |
from US $6.66 |
||
| replacement | |||||
|
39
|
39
90462-10003-00 Clamp |
90462-10003-00 |
from US $6.66 |
||
|
40
|
40
90462-12142-00
Clamp
|
90462-12142-00 |
— | ||
| replacement | |||||
|
40
|
40
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
