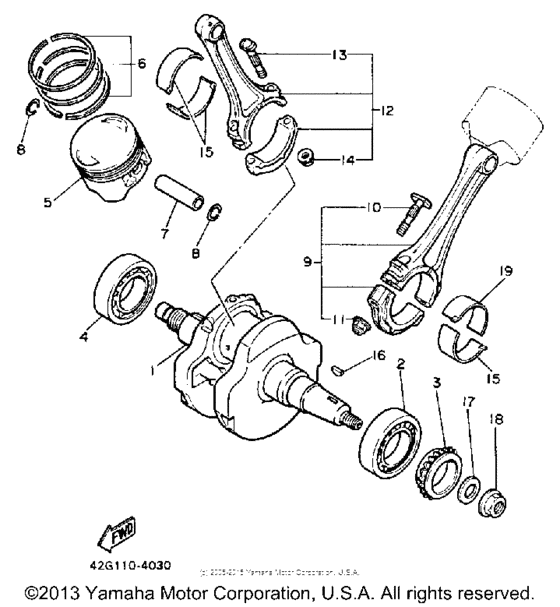

Crankshaft & Piston Diagram Yamaha XV1000 Virago
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- XV1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5A8-11411-01-00
Crankshaft
|
5A8-11411-01-00 |
— | ||
|
2
|
2
933-06308-08-00 Bearing (B6308C4-Special) |
933-06308-08-00 |
from US $110.80 |
||
|
3
|
3
4X7-13354-00-00 Sprocket, Drive |
4X7-13354-00-00 |
from US $41.45 |
||
|
4
|
4
933-06308-08-00 Bearing (B6308C4-Special) |
933-06308-08-00 |
from US $110.80 |
||
|
5
|
5
42H-11636-00-00
Piston 2 O/s 0.50 (0.50Mm O/s)
O/S 0.50 0.50MM O/S ALT. PART |
42H-11636-00-00 |
— | ||
|
5
|
5
42H-11638-00-00
Piston 4 O/s 1.00 (1.00Mm O/s)
O/S 1.00 1.00MM O/S ALT. PART |
42H-11638-00-00 |
— | ||
|
5
|
5
42H-11631-00-A0
Piston Std (Std)
|
42H-11631-00-A0 |
— | ||
|
6
|
6
5A8-11610-20-00
Piston Ringset 2Nd (2Nd O/s)
2ND 2ND O/S ALT. PART |
5A8-11610-20-00 |
— | ||
|
6
|
6
5A8-11610-40-00
Piston Ringset 4Th
4TH ALT. PART |
5A8-11610-40-00 |
— | ||
|
6
|
6
5A8-11610-00-00
Piston Ringset Std (Std)
|
5A8-11610-00-00 |
— | ||
|
7
|
7
5A8-11633-00-00 Pin, Piston |
5A8-11633-00-00 |
US $37.57 |
||
|
8
|
8
934-50240-28-00 Circlip |
934-50240-28-00 |
from US $1.39 |
||
|
9
|
9
5A8-11650-00-00 Connecting Rod Assembly |
5A8-11650-00-00 |
US $254.79 |
||
|
10
|
10
4X7-11654-01-00 Bolt, Connecting Rod |
4X7-11654-01-00 |
from US $9.83 |
||
|
11
|
11
90179-09379-00 Nut |
90179-09379-00 |
from US $2.36 |
||
|
12
|
12
5A8-11660-00-00 Connecting Rod Assembly |
5A8-11660-00-00 |
US $254.86 |
||
| replacement | |||||
|
12
|
12
5A8-11650-00-00 Connecting Rod Assembly |
5A8-11650-00-00 |
US $254.79 |
||
|
13
|
13
4X7-11654-01-00 Bolt, Connecting Rod |
4X7-11654-01-00 |
from US $9.83 |
||
|
14
|
14
90179-09379-00 Nut |
90179-09379-00 |
from US $2.36 |
||
|
15
|
15
4X7-11656-20-00 Plane Bearing, Connecting Rod |
4X7-11656-20-00 |
from US $19.55 |
||
|
15
|
15
4X7-11656-00-00 Plane Bearing, Connecting Rod |
4X7-11656-00-00 |
from US $22.33 |
||
|
15
|
15
4X7-11656-10-00 Plane Bearing, Connecting Rod |
4X7-11656-10-00 |
from US $22.33 |
||
|
15
|
15
4X7-11656-30-00 Plane Bearing, Connecting Rod |
4X7-11656-30-00 |
from US $19.55 |
||
|
15
|
15
4X7-11656-40-00 Plane Bearing, Connecting Rod |
4X7-11656-40-00 |
from US $14.69 |
||
|
16
|
16
902-80160-53-00
Key, Woodruff(3Tb)
|
902-80160-53-00 |
— | ||
| replacement | |||||
|
16
|
16
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.15 |
||
|
17
|
17
90201-165H4-00 Washer, Plate |
90201-165H4-00 |
from US $6.52 |
||
|
18
|
18
90179-16448-00 Nut |
90179-16448-00 |
from US $14.03 |
||
| replacement | |||||
|
18
|
18
90179-16662-00 Nut(3Jp) |
90179-16662-00 |
from US $24.37 |
||
|
19
|
19
5G5-11656-00-00 Plane Bearing, Connecting Rod |
5G5-11656-00-00 |
from US $17.57 |
||
|
19
|
19
5G5-11656-10-00 Plane Bearing, Connecting Rod |
5G5-11656-10-00 |
from US $17.57 |
||
|
19
|
19
5G5-11656-20-00 Plane Bearing, Connecting Rod |
5G5-11656-20-00 |
from US $17.57 |
||
