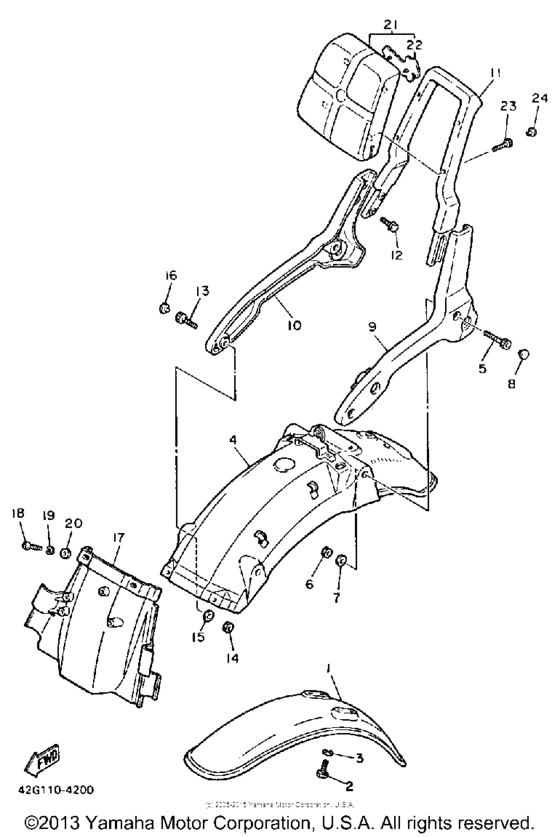

Fender Diagram Yamaha XV1000 Virago
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- XV1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42X-21510-00-93
Fender, Front
|
42X-21510-00-93 |
— | ||
|
2
|
2
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
2
|
2
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
42X-21610-00-93
Fender, Rear
|
42X-21610-00-93 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
91311-10040-00 Bolt |
91311-10040-00 |
from US $5.29 |
||
| replacement | |||||
|
5
|
5
91317-10040-00 Bolt |
91317-10040-00 |
from US $5.81 |
||
|
6
|
6
95380-10600-00 Ecrou |
95380-10600-00 |
from US $2.36 |
||
|
7
|
7
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
8
|
8
90338-10164-00 Plug |
90338-10164-00 |
from US $3.89 |
||
|
9
|
9
42H-2164F-01-00
Stay 1
|
42H-2164F-01-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
42H-2164G-01-00
Stay 2
|
42H-2164G-01-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
42H-2164A-02-00
Grip 1
|
42H-2164A-02-00 |
— | ||
|
12
|
12
95811-06016-00 Bolt, Flange |
95811-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
13
|
13
913-11080-40-00
Bolt, Hexagon Socket Head
|
913-11080-40-00 |
— | ||
| replacement | |||||
|
13
|
13
91314-08040-00 Bolt, Hexagon Socket Head |
91314-08040-00 |
from US $3.26 |
||
|
14
|
14
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
14
|
14
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
15
|
15
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
16
|
16
903-38081-63-00 Plug (Chrome) |
903-38081-63-00 |
from US $2.36 |
||
|
17
|
17
42X-21629-00-00
Guard, Mud
|
42X-21629-00-00 |
— | ||
|
18
|
18
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
18
|
18
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
20
|
20
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
21
|
21
1TA-2840F-00-00 Back Rest Assembly |
1TA-2840F-00-00 |
US $205.92 |
||
|
22
|
22
42H-24786-00-00
Emblem
|
42H-24786-00-00 |
— | ||
|
23
|
23
913-11060-35-00
Bolt, Hexagon Socket Head
|
913-11060-35-00 |
— | ||
| replacement | |||||
|
23
|
23
91314-06035-00 Bolt, Hexagon Socket Head |
91314-06035-00 |
from US $1.52 |
||
|
24
|
24
90338-06162-00 Plug |
90338-06162-00 |
from US $3.60 |
||
