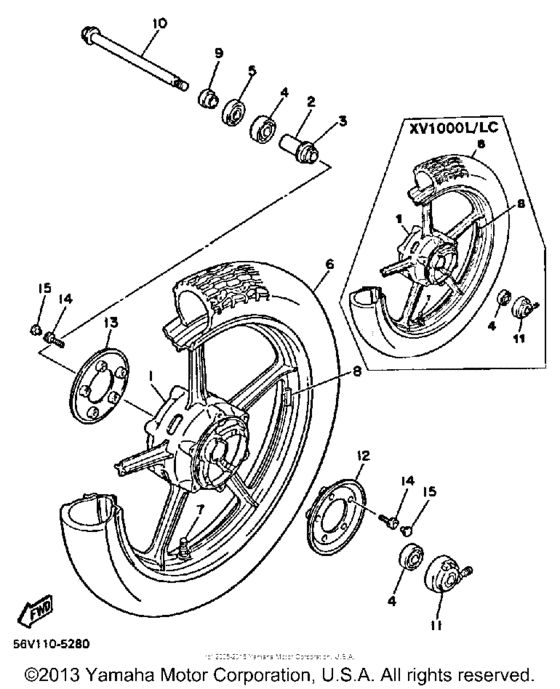

Front wheel Diagram Yamaha XV1000 Virago
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- XV1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42H-25168-00-8L
Wheel, Cast Front
|
42H-25168-00-8L |
— | ||
| replacement | |||||
|
1
|
1
56W-25168-00-8L
Cast Wheel, Front (N/nc)
|
56W-25168-00-8L |
— | ||
|
1
|
1
56W-25168-00-8L
Cast Wheel, Front (N/nc)
|
56W-25168-00-8L |
— | ||
|
2
|
2
90560-15116-00
Spacer 322251170000
|
90560-15116-00 |
— | ||
|
3
|
3
146-25115-00-00 Flange, Spacer |
146-25115-00-00 |
from US $6.23 |
||
|
4
|
4
933-06302-02-00 Bearing (1H7) |
933-06302-02-00 |
from US $20.54 |
||
| replacement | |||||
|
4
|
4
93306-30212-00 Bearing |
93306-30212-00 |
from US $16.84 |
||
|
5
|
5
931-02220-14-00 Oil Seal |
931-02220-14-00 |
from US $8.08 |
||
|
6
|
6
94110-196M3-00
110/90-19L303Rwltl (100/90-19-5
100/90-19-5 BRIDGESTONE |
94110-196M3-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
100/90-19-5 BRIDGESTONE |
999-99999-99-00 |
— | ||
|
7
|
7
93900-00001-00 Valve, Rim |
93900-00001-00 |
from US $12.75 |
||
| replacement | |||||
|
7
|
7
93900-00031-00 Valve, Rim |
93900-00031-00 |
from US $12.75 |
||
|
8
|
8
29L-25398-20-00 Balancer, Wheel (30G)30G U.N. |
29L-25398-20-00 |
from US $7.65 |
||
| replacement | |||||
|
8
|
8
5MT-25398-20-00 Balancer, Wheel (30G)30G U.N. |
5MT-25398-20-00 |
from US $8.46 |
||
|
8
|
8
29L-25398-10-00
Balancer, Wheel (20G)
20G U.N. |
29L-25398-10-00 |
— | ||
| replacement | |||||
|
8
|
8
5MT-25398-10-00 Balancer, Wheel (20G)20G U.N. |
5MT-25398-10-00 |
from US $8.46 |
||
|
8
|
8
29L-25398-00-00
Balancer, Wheel (10G)
10G U.N. |
29L-25398-00-00 |
— | ||
| replacement | |||||
|
8
|
8
5MT-25398-00-00 Balancer, Wheel (10G)10G U.N. |
5MT-25398-00-00 |
from US $8.46 |
||
|
9
|
9
90387-15550-00 Collar |
90387-15550-00 |
from US $12.18 |
||
|
10
|
10
42X-25181-00-00 Axle, Wheel |
42X-25181-00-00 |
US $52.34 |
||
|
11
|
11
42H-25190-00-00 Gear Unit Assembly |
42H-25190-00-00 |
from US $130.42 |
||
| replacement | |||||
|
11
|
11
42X-25190-00-00 Gear Unit Assembly |
42X-25190-00-00 |
from US $130.42 |
||
|
12
|
12
56W-2512A-00-00 Cap, Wheel |
56W-2512A-00-00 |
US $125.62 |
||
|
13
|
13
56W-2512A-10-00
Cap, Wheel
|
56W-2512A-10-00 |
— | ||
|
14
|
14
90110-06091-00 Bolt |
90110-06091-00 |
US $1.07 |
||
| replacement | |||||
|
14
|
14
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.18 |
||
|
15
|
15
90338-06162-00 Plug |
90338-06162-00 |
from US $3.60 |
||
