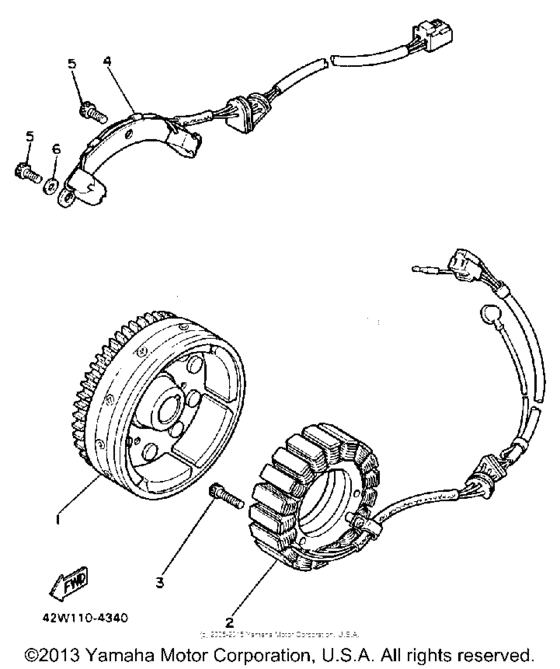

Generator Diagram Yamaha XV1000 Virago
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- XV1000
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42H-81450-20-00
Rotor Assembly
|
42H-81450-20-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
42X-81410-20-00
Stator Assembly
|
42X-81410-20-00 |
— | ||
|
3
|
3
913-16060-40-00
Bolt
|
913-16060-40-00 |
— | ||
| replacement | |||||
|
3
|
3
91317-06040-00 Bolt |
91317-06040-00 |
from US $1.07 |
||
|
4
|
4
42X-81670-20-00
Pick-Up Assembly
|
42X-81670-20-00 |
— | ||
|
5
|
5
913-16060-16-00
Bolt
|
913-16060-16-00 |
— | ||
| replacement | |||||
|
5
|
5
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.18 |
||
|
6
|
6
90201-06643-00 Washer, Plate |
90201-06643-00 |
from US $1.28 |
||
| replacement | |||||
|
6
|
6
90201-06045-00 Washer, Plate |
90201-06045-00 |
from US $1.28 |
||
