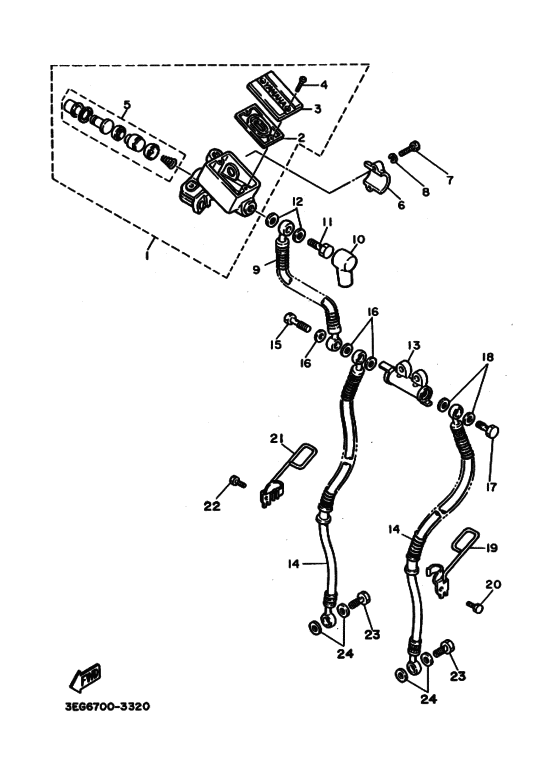

Front master cylinder Diagram Yamaha XV1100 Virago
- Year
- 1995
- Colour
- Dull Greenish Blue Metallic 1 (DGBME; 0158)
- Model code
- 4PP1
- Sales region
- Japan (010)
- Engine Capacity
- 1100
- Color Variant
- A
- Model
- XV1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22R-25850-02-00
Mstr. Cylinder. Sub Assemblysub
|
22R-25850-02-00 |
— | ||
| replacement | |||||
|
1
|
1
3SD-25870-20-00
Mstr. Cylinder. Sub Assemblysub
|
3SD-25870-20-00 |
— | ||
|
2
|
2
4HM-25854-00-00 Diaphragm, Reservoir．ダイヤフラム，リザーバ; |
4HM-25854-00-00 |
from US $17.48 |
||
|
3
|
3
3GM-25852-01-00
Cap, Reservoir
．キヤツプ，リザーバ; |
3GM-25852-01-00 |
— | ||
| replacement | |||||
|
3
|
3
3GM-25852-02-00 Cap, Reservoir．キヤツプ，リザーバ; |
3GM-25852-02-00 |
from US $15.84 |
||
|
4
|
4
98707-04012-00 Screw, Flat Head．スクリユ，フラツトヘツド; |
98707-04012-00 |
from US $1.52 |
||
|
5
|
5
4K0-W0041-50-00 Cylinder Kit, Master．シリンダキツト，マスタ; |
4K0-W0041-50-00 |
from US $51.26 |
||
|
6
|
6
4L0-25867-00-00 Holder |
4L0-25867-00-00 |
from US $18.42 |
||
|
7
|
7
97007-06025-00 Boltボルト; |
97007-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
7
|
7
970-17060-25-00 Boltボルト; |
970-17060-25-00 |
from US $1.36 |
||
|
8
|
8
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
9
|
9
42H-25872-02-00 Hose, Brake 1ホース，ブレーキ １; |
42H-25872-02-00 |
US $138.87 |
||
|
10
|
10
4L0-25862-00-00 Boot, Master Cylinderブーツ，マスタシリンダ; |
4L0-25862-00-00 |
from US $10.34 |
||
| replacement | |||||
|
10
|
10
4L0-25862-01-00 Boot, Master Cylinderブーツ，マスタシリンダ; |
4L0-25862-01-00 |
from US $10.34 |
||
|
11
|
11
90401-10159-00 Bolt, Union(3Gm)ボルト，ユニオン; |
90401-10159-00 |
from US $3.26 |
||
|
12
|
12
902-01101-18-00 Washer, Plateワツシヤ，プレート; |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
12
|
12
90201-108J9-00 Washer, Plateワツシヤ，プレート; |
90201-108J9-00 |
US $1.39 |
||
|
13
|
13
42H-25885-01-00
Joint
|
42H-25885-01-00 |
— | ||
|
14
|
14
42H-25873-02-00 Hose, Brake 2ホース，ブレーキ ２; |
42H-25873-02-00 |
US $138.87 |
||
|
15
|
15
90401-10160-00 Bolt, Union(3Gm)ボルト，ユニオン; |
90401-10160-00 |
from US $9.49 |
||
| replacement | |||||
|
15
|
15
90401-10038-00 Bolt, Unionボルト，ユニオン; |
90401-10038-00 |
from US $9.49 |
||
|
16
|
16
902-01101-18-00 Washer, Plateワツシヤ，プレート; |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
16
|
16
90201-108J9-00 Washer, Plateワツシヤ，プレート; |
90201-108J9-00 |
US $1.39 |
||
|
17
|
17
90401-10159-00 Bolt, Union(3Gm)ボルト，ユニオン; |
90401-10159-00 |
from US $3.26 |
||
|
18
|
18
902-01101-18-00 Washer, Plateワツシヤ，プレート; |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
18
|
18
90201-108J9-00 Washer, Plateワツシヤ，プレート; |
90201-108J9-00 |
US $1.39 |
||
|
19
|
19
55R-25875-00-00 Holder, Brake Hose 1ホルダ，ブレーキホース １; |
55R-25875-00-00 |
from US $21.45 |
||
|
20
|
20
95024-06020-00 Bolt, Flange (Small Head)ボルト，フランジ; |
95024-06020-00 |
from US $1.66 |
||
|
21
|
21
55R-25876-00-00 Holder, Brake Hose 2ホルダ，ブレーキホース ２; |
55R-25876-00-00 |
from US $26.10 |
||
|
22
|
22
95024-06020-00 Bolt, Flange (Small Head)ボルト，フランジ; |
95024-06020-00 |
from US $1.66 |
||
|
23
|
23
90401-10159-00 Bolt, Union(3Gm)ボルト，ユニオン; |
90401-10159-00 |
from US $3.26 |
||
|
24
|
24
902-01101-18-00 Washer, Plateワツシヤ，プレート; |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
24
|
24
90201-108J9-00 Washer, Plateワツシヤ，プレート; |
90201-108J9-00 |
US $1.39 |
||
