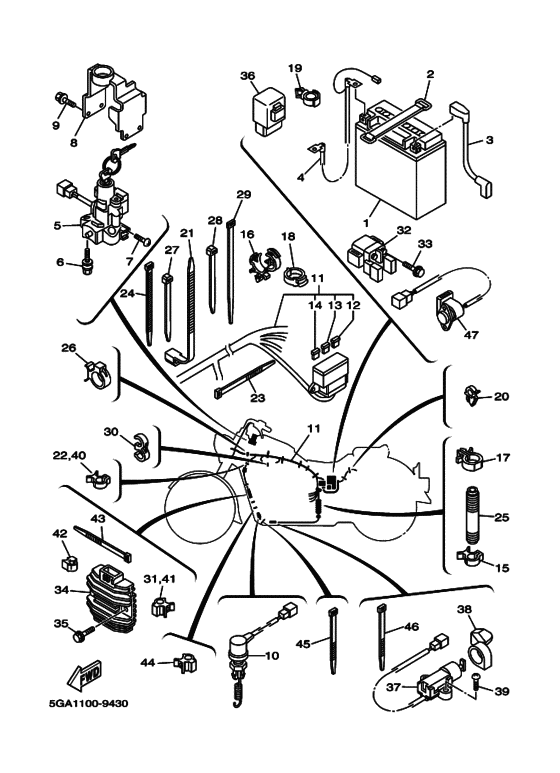

Electrical 2 Diagram Yamaha XV1600 Road Star Silverado
- Year
- 1999
- Colour
- Very Dark Blue Metallic 9 (VDBM9; 0677)
- Model code
- 5GA3
- Sales region
- Canada (010)
- Engine Capacity
- 1600
- Color Variant
- A
- Model
- XV1600AT (Road Star Silverado)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4SH-82100-21-00
Ytx20Lbs Yuasa Batt
|
4SH-82100-21-00 |
— | ||
| replacements | |||||
|
1
|
1
YTX-20LBS-00-00
Bat Ytx20L-Bs (Ptx20L-Bs) Yu
|
YTX-20LBS-00-00 |
— | ||
|
1
|
1
BTY-GTX20-LB-S0
Battery gtx-20l-bs
|
BTY-GTX20-LB-S0 |
— | ||
|
2
|
2
4WM-82131-00-00 Band, Battery |
4WM-82131-00-00 |
US $10.67 |
||
|
3
|
3
4WM-82115-00-00 Wire, Plus Lead |
4WM-82115-00-00 |
from US $27.25 |
||
| replacement | |||||
|
3
|
3
4NK-82115-00-00 Wire, Plus Lead |
4NK-82115-00-00 |
from US $27.34 |
||
|
4
|
4
4WM-82116-00-00 Wire, Minus Lead |
4WM-82116-00-00 |
from US $31.03 |
||
|
5
|
5
4WM-82501-00-00 Main Switch Steering |
4WM-82501-00-00 |
from US $210 |
||
| replacements | |||||
|
5
|
5
4WM-82501-02-00 Switch, Main Steering |
4WM-82501-02-00 |
from US $241.70 |
||
|
5
|
5
4WM-82501-03-00 Main Switch Steering Lock |
4WM-82501-03-00 |
from US $249.32 |
||
|
6
|
6
901-09080-G5-00
Bolt
|
901-09080-G5-00 |
— | ||
| replacement | |||||
|
6
|
6
901-09081-96-00 Bolt |
901-09081-96-00 |
from US $2.08 |
||
|
7
|
7
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
7
|
7
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
8
|
8
4WM-82568-00-00 Cover, Main Switch |
4WM-82568-00-00 |
from US $54.71 |
||
|
9
|
9
90105-06010-00 Bolt, Flange |
90105-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
10
|
10
4WM-82530-00-00 Stop Switch Assy |
4WM-82530-00-00 |
from US $26.84 |
||
|
11
|
11
4WM-82590-00-00 Wire Harness Assy |
4WM-82590-00-00 |
from US $508.08 |
||
| replacement | |||||
|
11
|
11
4WM-82590-10-00
Wire Harness Assy
|
4WM-82590-10-00 |
— | ||
|
12
|
12
1NL-82151-00-00 Fuse (5A-Bl)5A-BL |
1NL-82151-00-00 |
from US $6.38 |
||
|
13
|
13
36Y-82151-00-00 Fuse (15A-Blue)15A-BL |
36Y-82151-00-00 |
from US $2.86 |
||
|
14
|
14
42X-82151-00-00 Fuse (10A-Bl)10A-BL |
42X-82151-00-00 |
from US $1.66 |
||
|
15
|
15
90464-20191-00 Clamp |
90464-20191-00 |
from US $1.81 |
||
|
16
|
16
90464-07209-00 Clamp |
90464-07209-00 |
from US $1.35 |
||
|
17
|
17
90464-24230-00 Clamp |
90464-24230-00 |
from US $2.55 |
||
|
18
|
18
90464-25001-00
Clamp
|
90464-25001-00 |
— | ||
|
19
|
19
90464-20181-00 Clamp |
90464-20181-00 |
from US $1.70 |
||
|
20
|
20
90464-08263-00 Clamp |
90464-08263-00 |
from US $1.71 |
||
|
21
|
21
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
21
|
21
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
22
|
22
90464-15192-00 Clamp |
90464-15192-00 |
from US $1.81 |
||
|
23
|
23
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
24
|
24
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
25
|
25
4WM-82139-00-00 Tube |
4WM-82139-00-00 |
from US $5.38 |
||
|
26
|
26
90464-20191-00 Clamp |
90464-20191-00 |
from US $1.81 |
||
|
27
|
27
90464-12045-00 Band, Switch Cord |
90464-12045-00 |
from US $1.56 |
||
| replacement | |||||
|
27
|
27
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
28
|
28
90464-12045-00 Band, Switch Cord |
90464-12045-00 |
from US $1.56 |
||
| replacement | |||||
|
28
|
28
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
29
|
29
90464-32060-00 Band |
90464-32060-00 |
from US $1.39 |
||
| replacement | |||||
|
29
|
29
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
30
|
30
90464-60067-00 Clamp |
90464-60067-00 |
from US $1.70 |
||
|
31
|
31
90464-10190-00 Clamp |
90464-10190-00 |
from US $1.81 |
||
|
32
|
32
4BH-81940-00-00 Starter Relay Assy (Rc19-005) |
4BH-81940-00-00 |
from US $97.40 |
||
| replacement | |||||
|
32
|
32
4BH-81940-02-00 Starter Relay Assy (Rc19-005) |
4BH-81940-02-00 |
from US $108.50 |
||
|
33
|
33
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.52 |
||
|
34
|
34
5BN-81960-00-00 Rectifier & Regulator Assy |
5BN-81960-00-00 |
from US $132.50 |
||
|
35
|
35
95807-06020-00 Bolt, Flange |
95807-06020-00 |
from US $1.25 |
||
| replacement | |||||
|
35
|
35
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
36
|
36
3EN-81950-00-00 Relay Assy (3En-00) |
3EN-81950-00-00 |
from US $124.67 |
||
| replacements | |||||
|
36
|
36
3EN-81950-01-00 Relay Assy |
3EN-81950-01-00 |
from US $83.03 |
||
|
36
|
36
3EN-81950-02-00 Relay Assy |
3EN-81950-02-00 |
from US $77.56 |
||
|
37
|
37
3LD-82566-70-00 Switch, Side Stand |
3LD-82566-70-00 |
from US $47.72 |
||
| replacement | |||||
|
37
|
37
3LD-82566-71-00 Switch, Side Stand |
3LD-82566-71-00 |
US $56.83 |
||
|
38
|
38
4WM-8252U-00-00 Cover |
4WM-8252U-00-00 |
from US $7.08 |
||
|
39
|
39
901-57050-79-00
Screw, Pan Head
|
901-57050-79-00 |
— | ||
| replacement | |||||
|
39
|
39
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.42 |
||
|
40
|
40
90464-15192-00 Clamp |
90464-15192-00 |
from US $1.81 |
||
|
41
|
41
90464-10190-00 Clamp |
90464-10190-00 |
from US $1.81 |
||
|
42
|
42
90464-05188-00 Clamp |
90464-05188-00 |
from US $1.81 |
||
|
43
|
43
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
44
|
44
90464-10190-00 Clamp |
90464-10190-00 |
from US $1.81 |
||
|
45
|
45
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
46
|
46
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
47
|
47
4TR-82560-00-00 Thermo Switch Assy |
4TR-82560-00-00 |
US $68.53 |
||
