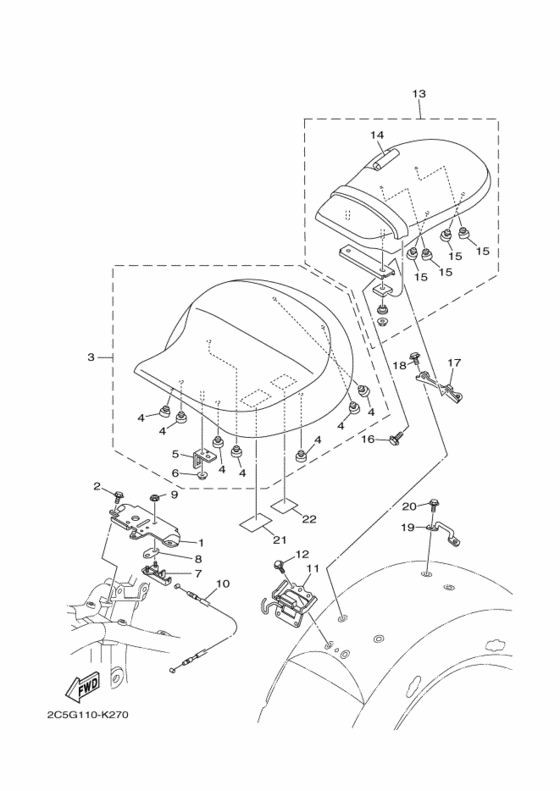

Seat Diagram Yamaha XV1900 Roadliner S
- Year
- 2012
- Colour
- Light Yellowish Gray Me 9 (LYNM9; 0752)
- Model code
- 1D7M
- Sales region
- Canada (010)
- Базовая модель
- XV1900A XV19SB
- Engine Capacity
- 1900
- Color Variant
- A
- Model
- XV1900AS (Roadliner S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1D7-21341-00-00 Bracket, Seat 1 |
1D7-21341-00-00 |
from US $23.52 |
||
|
2
|
2
90105-08485-00 Bolt, Flange |
90105-08485-00 |
from US $1.07 |
||
| replacements | |||||
|
2
|
2
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
2
|
2
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
3
|
3
1D7-24710-30-00 Single Seat Assy |
1D7-24710-30-00 |
from US $369.36 |
||
|
4
|
4
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2.36 |
||
|
5
|
5
4NK-24728-00-00 Bracket, Seat |
4NK-24728-00-00 |
from US $6.80 |
||
|
6
|
6
95602-06200-00 Nut, U Flange |
95602-06200-00 |
from US $1.52 |
||
| replacement | |||||
|
6
|
6
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
|
7
|
7
4BP-24780-00-00 Seat Lock Assy |
4BP-24780-00-00 |
from US $55.40 |
||
|
8
|
8
4BP-24792-00-00 Plate |
4BP-24792-00-00 |
from US $4.53 |
||
|
9
|
9
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
9
|
9
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
10
|
10
5PX-2478E-00-00 Cable, Seat Lock |
5PX-2478E-00-00 |
from US $13.87 |
||
|
11
|
11
1D7-2475N-00-00 Bracket |
1D7-2475N-00-00 |
from US $26.64 |
||
|
12
|
12
95022-08012-00 Bolt, Flange |
95022-08012-00 |
from US $1.66 |
||
|
13
|
13
1D7-24750-20-00 Tandem Seat Assy |
1D7-24750-20-00 |
from US $253.65 |
||
|
14
|
14
1D7-2470H-20-00 Seat Cover Comp., 2 |
1D7-2470H-20-00 |
from US $67.33 |
||
|
15
|
15
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2.36 |
||
|
16
|
16
95022-08012-00 Bolt, Flange |
95022-08012-00 |
from US $1.66 |
||
|
17
|
17
1D7-2475H-00-00 Bracket, Seat Lever 1 |
1D7-2475H-00-00 |
from US $11.23 |
||
|
18
|
18
95022-08012-00 Bolt, Flange |
95022-08012-00 |
from US $1.66 |
||
|
19
|
19
1D7-2475R-00-00 Bracket 6 |
1D7-2475R-00-00 |
from US $10.83 |
||
|
20
|
20
95022-08012-00 Bolt, Flange |
95022-08012-00 |
from US $1.66 |
||
|
21
|
21
1D7-21668-00-00 Label, Tire |
1D7-21668-00-00 |
from US $3.12 |
||
|
22
|
22
1D7-21668-10-00 Label, Tire |
1D7-21668-10-00 |
from US $3.12 |
||
