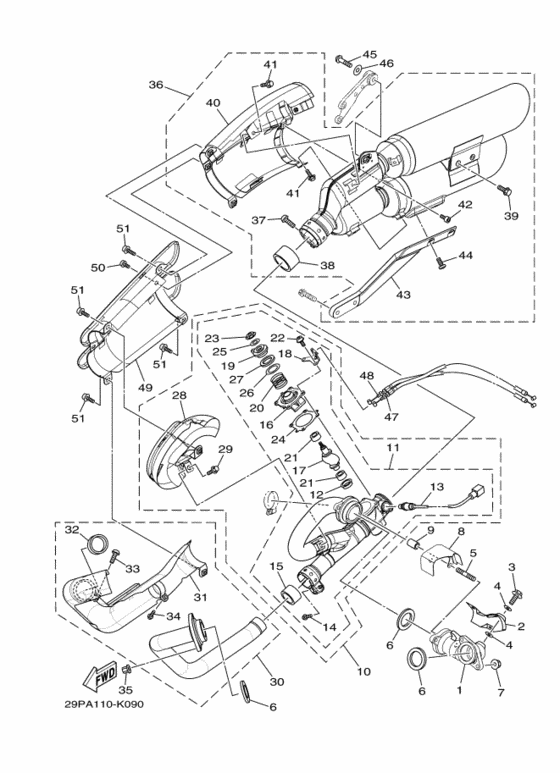

Exhaust Diagram Yamaha XV1900 Raider S
- Year
- 2011
- Colour
- Pale Blue Metallic J (PBMJ; 1221)
- Model code
- 29PC
- Sales region
- Canada (010)
- Базовая модель
- XV1900CU XV19CSA
- Engine Capacity
- 1900
- Color Variant
- B
- Model
- XV1900CU (Raider S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1D7-14615-00-00 Joint, Exhaust 1 |
1D7-14615-00-00 |
from US $289.01 |
||
|
2
|
2
1D7-14628-00-00 Protector, Exhaust Pipe |
1D7-14628-00-00 |
from US $58.86 |
||
|
3
|
3
95880-06012-00 Bolt, Flange |
95880-06012-00 |
from US $2.13 |
||
|
4
|
4
90201-05015-00 Washer, Plate |
90201-05015-00 |
from US $2.69 |
||
|
5
|
5
95617-08630-00 Bolt, Stud |
95617-08630-00 |
from US $4.03 |
||
|
6
|
6
3EG-14613-00-00 Сollar, Exhaust Pipe |
3EG-14613-00-00 |
from US $8.08 |
||
|
7
|
7
90185-08097-00 Nut,self-Locking |
90185-08097-00 |
US $1.52 |
||
| replacement | |||||
|
7
|
7
90185-08146-00 Nut, Self-Locking |
90185-08146-00 |
from US $1.52 |
||
|
8
|
8
1D7-14624-00-00 Cover, Exhaust |
1D7-14624-00-00 |
from US $53.47 |
||
|
9
|
9
90179-08022-00 Nut |
90179-08022-00 |
from US $10.06 |
||
| replacement | |||||
|
9
|
9
90179-08442-00 Nut |
90179-08442-00 |
from US $5.38 |
||
|
10
|
10
5C7-14610-01-00 Exhaust Pipe Assy 1 |
5C7-14610-01-00 |
from US $898.45 |
||
|
11
|
11
5C7-14611-01-00 Pipe, Exhaust 1 |
5C7-14611-01-00 |
from US $849.40 |
||
|
12
|
12
5VY-14816-00-00 Plug, Blind |
5VY-14816-00-00 |
from US $4.25 |
||
|
13
|
13
5C7-8592A-00-00 Sensor, Oxygen |
5C7-8592A-00-00 |
from US $203.10 |
||
|
14
|
14
92014-08035-00 Bolt, Button Head |
92014-08035-00 |
from US $4.03 |
||
|
15
|
15
5PX-14755-00-00 Gasket, Silencer |
5PX-14755-00-00 |
from US $20.12 |
||
|
16
|
16
1D7-14811-01-00 Housing |
1D7-14811-01-00 |
from US $139.54 |
||
|
17
|
17
1D7-14821-00-00 Arm, Shaft (Valve) |
1D7-14821-00-00 |
from US $185.13 |
||
|
18
|
18
1D7-14849-00-00 Bracket |
1D7-14849-00-00 |
from US $8.93 |
||
|
19
|
19
1D7-14865-01-00 Pulley |
1D7-14865-01-00 |
from US $22.24 |
||
|
20
|
20
1D7-14856-00-00 Spring |
1D7-14856-00-00 |
from US $3.40 |
||
|
21
|
21
5VY-14638-00-00 Collar |
5VY-14638-00-00 |
from US $35.65 |
||
|
22
|
22
90110-06025-00 Bolt, Hexagon Socket Head |
90110-06025-00 |
from US $2.98 |
||
| replacement | |||||
|
22
|
22
91314-06055-00 Bolt, Hexagon Socket Head |
91314-06055-00 |
from US $1.42 |
||
|
23
|
23
90179-06063-00 Nut |
90179-06063-00 |
from US $3.26 |
||
|
24
|
24
1D7-14643-00-00 Gasket 3 |
1D7-14643-00-00 |
from US $13.60 |
||
|
25
|
25
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
26
|
26
5VY-14674-00-00 Valve, Plate |
5VY-14674-00-00 |
from US $3.12 |
||
|
27
|
27
5VY-14648-00-00 Collar 2 |
5VY-14648-00-00 |
from US $38.41 |
||
|
28
|
28
5C7-14718-00-00 Protector, Muffler 1 |
5C7-14718-00-00 |
from US $477.72 |
||
|
29
|
29
95024-06010-00 Bolt, Flange (Small Head) |
95024-06010-00 |
from US $1.56 |
||
|
30
|
30
5C7-14620-00-00 Exhaust Pipe Assy 2 |
5C7-14620-00-00 |
from US $511.60 |
||
|
31
|
31
5C7-14728-00-00 Protector, Muffler 2 |
5C7-14728-00-00 |
from US $576.84 |
||
|
32
|
32
5C7-14714-00-00 Gasket, Muffler |
5C7-14714-00-00 |
from US $18.70 |
||
|
33
|
33
95024-08020-00 Bolt, Flange (Small Head) |
95024-08020-00 |
from US $1.18 |
||
|
34
|
34
92014-06016-00 Bolt, Button Head |
92014-06016-00 |
from US $1.52 |
||
|
35
|
35
90179-08410-00 Nut |
90179-08410-00 |
from US $1.81 |
||
|
36
|
36
5C7-14710-00-00
Muffler Assy 1
|
5C7-14710-00-00 |
— | ||
| replacement | |||||
|
36
|
36
5C7-14710-30-00 Muffler Assy 1 |
5C7-14710-30-00 |
from US $2,220.70 |
||
|
37
|
37
92014-08035-00 Bolt, Button Head |
92014-08035-00 |
from US $4.03 |
||
|
38
|
38
5YU-14714-00-00 Gasket, Muffler |
5YU-14714-00-00 |
from US $31.03 |
||
|
39
|
39
95024-08020-00 Bolt, Flange (Small Head) |
95024-08020-00 |
from US $1.18 |
||
|
40
|
40
5C7-14738-00-00 Protector, Muffler 3 |
5C7-14738-00-00 |
from US $552.42 |
||
|
41
|
41
95024-06010-00 Bolt, Flange (Small Head) |
95024-06010-00 |
from US $1.56 |
||
|
42
|
42
91314-06010-00 Bolt, Hexagon Socket Head |
91314-06010-00 |
from US $1.56 |
||
|
43
|
43
5C7-14772-00-00 Stay, Muffler 2 |
5C7-14772-00-00 |
from US $312.24 |
||
|
44
|
44
90111-08029-00 Bolt, Hex. Socket Button |
90111-08029-00 |
from US $1.84 |
||
|
45
|
45
90110-08221-00 Bolt (3Xf1) |
90110-08221-00 |
from US $5.95 |
||
| replacement | |||||
|
45
|
45
92017-08040-00 Bolt, Button Head |
92017-08040-00 |
from US $3.74 |
||
|
46
|
46
90201-087G2-00 Washer, Plate |
90201-087G2-00 |
from US $1.98 |
||
|
47
|
47
5C7-1133E-00-00 Cable, Pulley 1 |
5C7-1133E-00-00 |
from US $59.96 |
||
|
48
|
48
5C7-1133F-00-00 Cable, Pulley 2 |
5C7-1133F-00-00 |
from US $59.69 |
||
|
49
|
49
5C7-14627-00-00 Cover, Exhaust |
5C7-14627-00-00 |
from US $557.04 |
||
|
50
|
50
901-10062-88-00 Bolt, Hexagon Socket Head |
901-10062-88-00 |
from US $1.42 |
||
|
51
|
51
901-10063-01-00 Bolt, Hexagon Socket Head |
901-10063-01-00 |
from US $3.68 |
||
