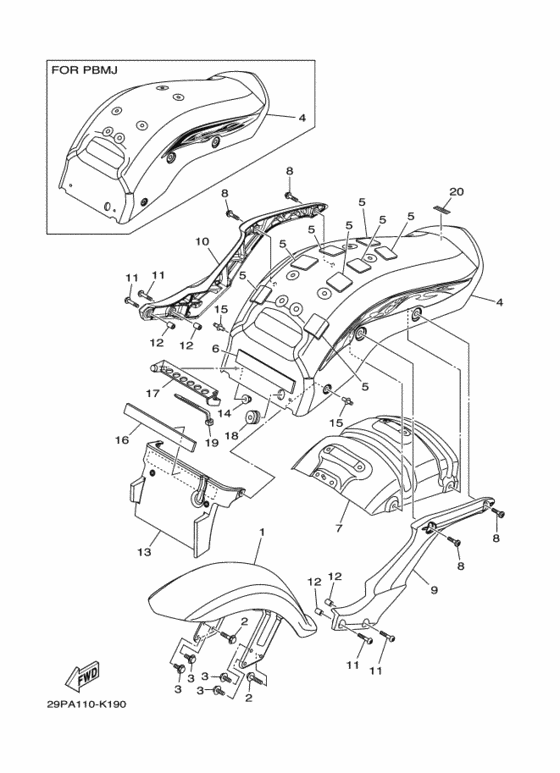

Fender Diagram Yamaha XV1900 Raider S
- Year
- 2011
- Colour
- Pale Blue Metallic J (PBMJ; 1221)
- Model code
- 29PC
- Sales region
- Canada (010)
- Базовая модель
- XV1900CU XV19CSA
- Engine Capacity
- 1900
- Color Variant
- B
- Model
- XV1900CU (Raider S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5C7-YK215-01-P5 Front Fender CompUR FOR PBMJ |
5C7-YK215-01-P5 |
from US $1,024.94 |
||
| replacement | |||||
|
1
|
1
5C7-YK215-02-P5 FRONT FENDER COMP.UR FOR PBMJ |
5C7-YK215-02-P5 |
from US $869.06 |
||
|
2
|
2
901-19081-11-00 Bolt, With Washer |
901-19081-11-00 |
from US $1.42 |
||
|
3
|
3
901-19081-10-00 Bolt, With Washer |
901-19081-10-00 |
from US $1.42 |
||
|
4
|
4
5C7-Y2161-90-P5 Rear Fender CompUR FOR PBMJ |
5C7-Y2161-90-P5 |
from US $1,146.70 |
||
|
5
|
5
5PX-21669-01-00 Seal |
5PX-21669-01-00 |
from US $6.74 |
||
|
6
|
6
5C7-21649-00-00 Damper |
5C7-21649-00-00 |
from US $1.70 |
||
|
7
|
7
5C7-21643-00-00 Stay, Rear |
5C7-21643-00-00 |
from US $128.21 |
||
|
8
|
8
90110-08071-00 Bolt, Hexagon Socket Head |
90110-08071-00 |
from US $4.16 |
||
|
9
|
9
5C7-21613-01-00 Stay, Fender 1 |
5C7-21613-01-00 |
from US $657.83 |
||
|
10
|
10
5C7-21614-01-00 Stay, Fender 2 |
5C7-21614-01-00 |
from US $526.28 |
||
|
11
|
11
92014-10050-00 Bolt, Button Head(3Ls) |
92014-10050-00 |
from US $4.99 |
||
|
12
|
12
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.66 |
||
|
13
|
13
5C7-21629-00-00 Guard, Mud |
5C7-21629-00-00 |
from US $17.71 |
||
|
14
|
14
95602-06200-00 Nut, U Flange |
95602-06200-00 |
from US $1.52 |
||
| replacement | |||||
|
14
|
14
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
|
15
|
15
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $2.08 |
||
|
16
|
16
5C7-21639-00-00 Damper 2 |
5C7-21639-00-00 |
from US $1.42 |
||
|
17
|
17
5C7-21688-00-00 Bracket, Rear Stay |
5C7-21688-00-00 |
from US $16.43 |
||
|
18
|
18
90480-01015-00 Grommet |
90480-01015-00 |
from US $3.83 |
||
|
19
|
19
90464-13077-00 Clamp |
90464-13077-00 |
from US $1.70 |
||
| replacement | |||||
|
19
|
19
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
20
|
20
1D6-2153E-00-00 Emblem, Yamaha |
1D6-2153E-00-00 |
from US $6.19 |
||
| replacements | |||||
|
20
|
20
3WF-2153E-70-00 Emblem, Yamaha |
3WF-2153E-70-00 |
from US $6.19 |
||
|
20
|
20
3WF-2153E-71-00 Emblem, Yamaha |
3WF-2153E-71-00 |
from US $6.82 |
||
