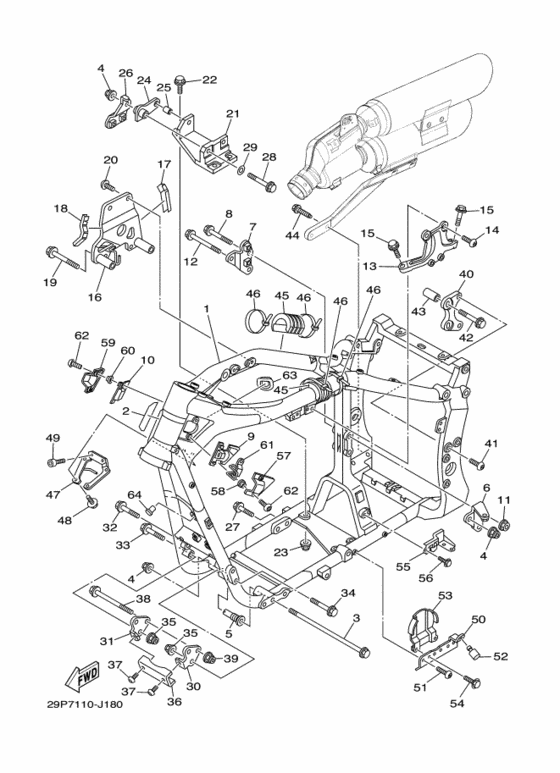

Frame Diagram Yamaha XV1900 Raider S
- Year
- 2011
- Colour
- Pale Blue Metallic J (PBMJ; 1221)
- Model code
- 29PC
- Sales region
- Canada (010)
- Базовая модель
- XV1900CU XV19CSA
- Engine Capacity
- 1900
- Color Variant
- B
- Model
- XV1900CU (Raider S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5C7-21110-01-00 Frame Comp |
5C7-21110-01-00 |
US $5,161.20 |
||
|
2
|
2
1D7-24141-00-00 Protector, Fuel Tank |
1D7-24141-00-00 |
from US $9.49 |
||
|
3
|
3
90105-126A6-00 Bolt, Flange |
90105-126A6-00 |
from US $20.69 |
||
|
4
|
4
95602-12200-00 Nut, Self-Locking |
95602-12200-00 |
from US $3.47 |
||
|
5
|
5
5PX-21495-00-00 Bolt, Engine Adjusting |
5PX-21495-00-00 |
from US $32.45 |
||
| replacement | |||||
|
5
|
5
5PX-21495-01-00 Bolt, Engine Adjusting |
5PX-21495-01-00 |
from US $32.87 |
||
|
6
|
6
1D7-21315-00-00 Stay, Engine 1 |
1D7-21315-00-00 |
from US $23.52 |
||
|
7
|
7
5PX-21316-00-00 Stay, Engine 2 |
5PX-21316-00-00 |
from US $14.03 |
||
|
8
|
8
90105-10170-00 Bolt, Flange |
90105-10170-00 |
from US $7.37 |
||
| replacement | |||||
|
8
|
8
90105-10737-00 Bolt, Flange |
90105-10737-00 |
from US $7.37 |
||
|
9
|
9
5C7-2112C-00-00 Damper 2 |
5C7-2112C-00-00 |
from US $3.40 |
||
|
10
|
10
5C7-2112D-00-00 Damper 3 |
5C7-2112D-00-00 |
from US $3.54 |
||
|
11
|
11
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.66 |
||
|
12
|
12
90105-12309-00 Bolt, Washer Based |
90105-12309-00 |
from US $11.19 |
||
| replacement | |||||
|
12
|
12
90105-12689-00
Bolt, Flange
|
90105-12689-00 |
— | ||
|
13
|
13
5C7-21317-00-00 Stay, Engine 3 |
5C7-21317-00-00 |
from US $134.43 |
||
|
14
|
14
90111-10003-00 Bolt, Hex. Socket Button |
90111-10003-00 |
from US $4.82 |
||
|
15
|
15
90105-12041-00 Bolt, FlangeBolt, flange |
90105-12041-00 |
from US $6.94 |
||
| replacement | |||||
|
15
|
15
90105-12018-00 Bolt, Flange |
90105-12018-00 |
from US $6.94 |
||
|
16
|
16
5C7-21319-00-00 Stay, Engine 6 |
5C7-21319-00-00 |
US $248 |
||
|
17
|
17
1D7-21669-00-00 Seal |
1D7-21669-00-00 |
from US $5.29 |
||
|
18
|
18
5C7-21268-00-00 Seal |
5C7-21268-00-00 |
from US $8.93 |
||
|
19
|
19
901-05120-67-00 Bolt, Flange |
901-05120-67-00 |
from US $9.21 |
||
|
20
|
20
901-11100-30-00 Bolt, Hex. Socket Button |
901-11100-30-00 |
from US $3.54 |
||
|
21
|
21
1D7-21318-00-00 Stay, Engine 4 |
1D7-21318-00-00 |
from US $197.57 |
||
| replacement | |||||
|
21
|
21
1D7-21318-01-00 Stay, Engine 4 |
1D7-21318-01-00 |
from US $197.57 |
||
|
22
|
22
95812-10030-00 Bolt, Flange |
95812-10030-00 |
from US $1.07 |
||
| replacements | |||||
|
22
|
22
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.18 |
||
|
22
|
22
95811-10030-00 Bolt, Flange (95812-10030-00) |
95811-10030-00 |
from US $1.07 |
||
|
23
|
23
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.66 |
||
|
24
|
24
1D7-2142G-00-00 Stay 1 |
1D7-2142G-00-00 |
from US $29.33 |
||
|
25
|
25
90387-12033-00 Collar |
90387-12033-00 |
from US $3.54 |
||
|
26
|
26
1D7-21387-00-00 Stay, Engine 7 |
1D7-21387-00-00 |
from US $15.30 |
||
|
27
|
27
95812-10045-00 Bolt, Flange |
95812-10045-00 |
from US $2.55 |
||
| replacement | |||||
|
27
|
27
95817-10045-00 Bolt, Flange |
95817-10045-00 |
from US $2.77 |
||
|
28
|
28
90101-12025-00 Bolt |
90101-12025-00 |
from US $10.06 |
||
|
29
|
29
90201-12045-00 Washer, Plate |
90201-12045-00 |
from US $1.70 |
||
|
30
|
30
1D7-2142H-01-00 Stay 2 |
1D7-2142H-01-00 |
US $11.76 |
||
|
31
|
31
1D7-2142J-01-00 Stay 3 |
1D7-2142J-01-00 |
US $11.76 |
||
|
32
|
32
90105-10049-00 Bolt, Flange |
90105-10049-00 |
from US $4.25 |
||
|
33
|
33
90105-10060-00 Bolt, Flange |
90105-10060-00 |
from US $4.25 |
||
|
34
|
34
90105-10167-00 Bolt, Flange |
90105-10167-00 |
from US $4.25 |
||
|
35
|
35
90185-10008-00 Nut, Self-Locking |
90185-10008-00 |
from US $4.53 |
||
|
36
|
36
1D7-2115L-00-00 Bracket, Member 1 |
1D7-2115L-00-00 |
from US $14.03 |
||
|
37
|
37
90111-08039-00 Bolt, Button Head |
90111-08039-00 |
from US $1.56 |
||
| replacement | |||||
|
37
|
37
92014-08020-00 Bolt, Button Head |
92014-08020-00 |
from US $1.66 |
||
|
38
|
38
90105-12016-00 Bolt, Flange |
90105-12016-00 |
from US $12.61 |
||
|
39
|
39
90185-12002-00 Nut, Self-Locking |
90185-12002-00 |
from US $9.57 |
||
|
40
|
40
1D7-2137F-00-00 Stay 1 |
1D7-2137F-00-00 |
from US $36.75 |
||
|
41
|
41
90111-10009-00 Bolt, Hex. Socket ButtonBolt,hex. socket button |
90111-10009-00 |
from US $4.82 |
||
|
42
|
42
95812-10075-00 Bolt, Flange |
95812-10075-00 |
from US $2.55 |
||
| replacement | |||||
|
42
|
42
901-05104-47-00 Bolt, Flange |
901-05104-47-00 |
from US $2.55 |
||
|
43
|
43
1D7-21116-01-00 Collar |
1D7-21116-01-00 |
from US $7.51 |
||
|
44
|
44
90105-10165-00 Bolt, FlangeBolt, flange |
90105-10165-00 |
from US $5.99 |
||
| replacement | |||||
|
44
|
44
901-05101-66-00 Bolt, Flange |
901-05101-66-00 |
from US $4.84 |
||
|
45
|
45
5C7-24183-00-00 Damper, Locating 3 |
5C7-24183-00-00 |
from US $8.78 |
||
|
46
|
46
3MA-82591-00-00 Band |
3MA-82591-00-00 |
from US $2.69 |
||
|
47
|
47
5C7-2116A-00-00 Stay 1 |
5C7-2116A-00-00 |
from US $32.73 |
||
|
48
|
48
950-27060-14-00 Bolt, Flange |
950-27060-14-00 |
from US $1.42 |
||
| replacement | |||||
|
48
|
48
950-22060-14-00 Bolt, Flange |
950-22060-14-00 |
from US $1.52 |
||
|
49
|
49
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
50
|
50
5C7-21343-00-00 Bracket, Horn |
5C7-21343-00-00 |
from US $66.87 |
||
|
51
|
51
901-11080-31-00 Bolt, Hex. Socket Button |
901-11080-31-00 |
from US $2.27 |
||
| replacement | |||||
|
51
|
51
90111-08002-00 Bolt, Hex. Socket Button |
90111-08002-00 |
from US $2.09 |
||
|
52
|
52
1D7-27114-00-00 Stopper, Main Stand |
1D7-27114-00-00 |
from US $1.90 |
||
|
53
|
53
5C7-2317L-00-00 Cover, Horn |
5C7-2317L-00-00 |
from US $31.88 |
||
|
54
|
54
90105-06078-00 Bolt, Flange |
90105-06078-00 |
from US $0.90 |
||
| replacement | |||||
|
54
|
54
95022-06012-00 Bolt, Flange |
95022-06012-00 |
from US $1.18 |
||
|
55
|
55
5C7-21453-00-00 Bracket, Switch |
5C7-21453-00-00 |
from US $16.86 |
||
|
56
|
56
950-27060-16-00
Bolt, Flange
|
950-27060-16-00 |
— | ||
| replacement | |||||
|
56
|
56
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.64 |
||
|
57
|
57
5C7-2171E-00-00 Cover, Side 5 |
5C7-2171E-00-00 |
from US $13.60 |
||
|
58
|
58
90387-06210-00 Collar |
90387-06210-00 |
from US $4.16 |
||
|
59
|
59
5C7-2171X-00-00 Cover, Side 6 |
5C7-2171X-00-00 |
from US $13.60 |
||
|
60
|
60
903-87061-92-00 Collar |
903-87061-92-00 |
from US $5.24 |
||
|
61
|
61
5C7-2171H-00-00 Guide |
5C7-2171H-00-00 |
from US $28.19 |
||
|
62
|
62
90111-06007-00 Bolt, Button Head |
90111-06007-00 |
from US $1.56 |
||
| replacement | |||||
|
62
|
62
92017-06016-00 Bolt, Button Head |
92017-06016-00 |
from US $1.66 |
||
|
63
|
63
5C7-21773-00-00 Grommet |
5C7-21773-00-00 |
from US $3.68 |
||
|
64
|
64
90338-16148-00 Plug |
90338-16148-00 |
from US $2.09 |
||
