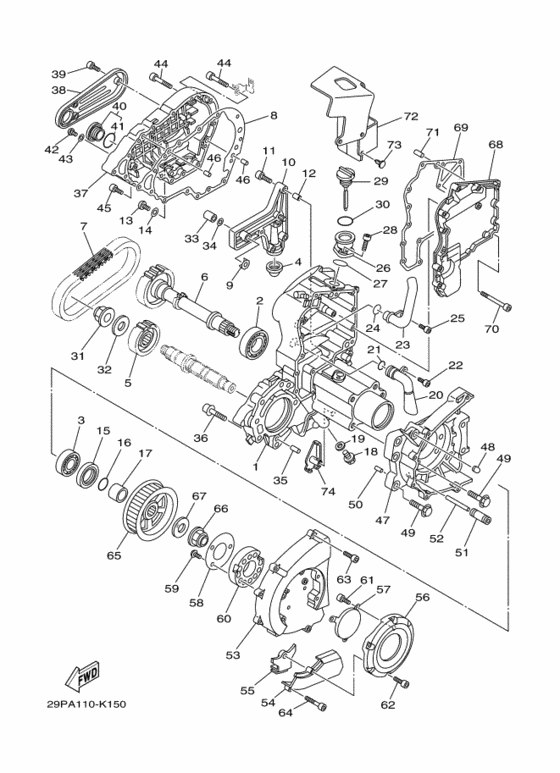

Middle drive gear Diagram Yamaha XV1900 Raider S
- Year
- 2011
- Colour
- Pale Blue Metallic J (PBMJ; 1221)
- Model code
- 29PC
- Sales region
- Canada (010)
- Базовая модель
- XV1900CU XV19CSA
- Engine Capacity
- 1900
- Color Variant
- B
- Model
- XV1900CU (Raider S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1D7-17541-00-00 Case, Transfer 1 |
1D7-17541-00-00 |
from US $834.24 |
||
|
2
|
2
93306-20801-00 Bearing |
93306-20801-00 |
from US $42.28 |
||
|
3
|
3
93306-28204-00 Bearing |
93306-28204-00 |
from US $40.07 |
||
|
4
|
4
4WM-13286-00-00 Cleaner |
4WM-13286-00-00 |
from US $6.66 |
||
|
5
|
5
1D7-17682-00-00 Sprocket, Chain Drive |
1D7-17682-00-00 |
from US $79.17 |
||
|
6
|
6
1D7-1755A-00-00 Middle Driven Shaft Assy |
1D7-1755A-00-00 |
from US $344.02 |
||
|
7
|
7
4WM-16139-00-00 Chain, Primary |
4WM-16139-00-00 |
US $371.01 |
||
| replacement | |||||
|
7
|
7
4WM-16139-01-00 Chain, Primary |
4WM-16139-01-00 |
from US $342.14 |
||
|
8
|
8
1D7-17929-00-00 Gasket 1 |
1D7-17929-00-00 |
from US $23.31 |
||
|
9
|
9
1D7-17931-00-00 Gasket 2 |
1D7-17931-00-00 |
from US $1.70 |
||
|
10
|
10
1D7-13100-00-00 Oil Pump Assy |
1D7-13100-00-00 |
from US $124.21 |
||
|
11
|
11
91314-06035-00 Bolt, Hexagon Socket Head |
91314-06035-00 |
from US $1.52 |
||
|
12
|
12
99530-08012-00 Pin, Dowel |
99530-08012-00 |
from US $1.18 |
||
|
13
|
13
901-49080-31-00 Screw |
901-49080-31-00 |
from US $2.13 |
||
|
14
|
14
904-30081-19-00
Gasket
|
904-30081-19-00 |
— | ||
| replacement | |||||
|
14
|
14
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.39 |
||
|
15
|
15
93102-42008-00 Oil Seal |
93102-42008-00 |
from US $10.54 |
||
|
16
|
16
93210-32001-00 O-Ring |
93210-32001-00 |
from US $3.72 |
||
|
17
|
17
90387-32005-00 Collar |
90387-32005-00 |
from US $25.79 |
||
|
18
|
18
903-40141-32-00 Plug, Straight Screw |
903-40141-32-00 |
from US $1.66 |
||
|
19
|
19
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $2.02 |
||
|
20
|
20
1D7-13421-00-00 Strainer 2 |
1D7-13421-00-00 |
from US $57.61 |
||
|
21
|
21
93210-21631-00 O-Ring |
93210-21631-00 |
from US $5.74 |
||
|
22
|
22
90110-06161-00 Bolt |
90110-06161-00 |
US $1.07 |
||
| replacement | |||||
|
22
|
22
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.18 |
||
|
23
|
23
1D7-13582-00-00 Pipe |
1D7-13582-00-00 |
from US $19.84 |
||
|
24
|
24
93210-21631-00 O-Ring |
93210-21631-00 |
from US $5.74 |
||
|
25
|
25
90110-06161-00 Bolt |
90110-06161-00 |
US $1.07 |
||
| replacement | |||||
|
25
|
25
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.18 |
||
|
26
|
26
1D7-13132-00-00 Joint |
1D7-13132-00-00 |
from US $49.32 |
||
|
27
|
27
93210-40351-00 O-Ring |
93210-40351-00 |
from US $8.37 |
||
| replacement | |||||
|
27
|
27
93210-40745-00 O-Ring |
93210-40745-00 |
from US $9.07 |
||
|
28
|
28
90110-06179-00 Bolt, Hexagon Socket Head |
90110-06179-00 |
from US $1.28 |
||
| replacement | |||||
|
28
|
28
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.39 |
||
|
29
|
29
5PX-15362-10-00 Plug, Oil Level |
5PX-15362-10-00 |
from US $20.40 |
||
|
30
|
30
932-10355-12-00 O-Ring |
932-10355-12-00 |
from US $7.21 |
||
|
31
|
31
90179-22016-00 Nut |
90179-22016-00 |
from US $21.92 |
||
|
32
|
32
90208-22004-00 Washer, Conical Spring |
90208-22004-00 |
from US $10.96 |
||
|
33
|
33
90179-10013-00 Nut |
90179-10013-00 |
from US $9.07 |
||
|
34
|
34
90430-10004-00 Gasket |
90430-10004-00 |
from US $1.70 |
||
|
35
|
35
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
36
|
36
90110-10013-00 Bolt, Hexagon Socket Head |
90110-10013-00 |
from US $4.53 |
||
|
37
|
37
1D7-15779-00-00 Cover |
1D7-15779-00-00 |
from US $456.88 |
||
|
38
|
38
1D7-17821-00-00 Cover, Housing |
1D7-17821-00-00 |
from US $55.54 |
||
|
39
|
39
90110-05013-00 Bolt, Hexagon Socket Head |
90110-05013-00 |
from US $1.84 |
||
| replacements | |||||
|
39
|
39
91314-05010-00 Bolt, Hexagon Socket Head |
91314-05010-00 |
from US $1.84 |
||
|
39
|
39
901-49050-10-00 Screw |
901-49050-10-00 |
from US $1.25 |
||
|
40
|
40
903-40200-05-00 Plug, Straight Screw |
903-40200-05-00 |
from US $20.40 |
||
|
41
|
41
1D7-176F4-09-00 O-Ring |
1D7-176F4-09-00 |
from US $1.56 |
||
|
42
|
42
92014-06010-00 Bolt, Button Head |
92014-06010-00 |
from US $1.66 |
||
|
43
|
43
90430-06016-00 Gasket |
90430-06016-00 |
from US $2.77 |
||
|
44
|
44
91314-06050-00 Bolt |
91314-06050-00 |
from US $1.66 |
||
|
45
|
45
91314-06030-00 Bolt, Hexagon Socket Head |
91314-06030-00 |
from US $1.42 |
||
|
46
|
46
99530-08012-00 Pin, Dowel |
99530-08012-00 |
from US $1.18 |
||
|
47
|
47
1D7-17613-00-00 Stay |
1D7-17613-00-00 |
from US $161.65 |
||
|
48
|
48
5PX-17654-00-00 Spacer 1 |
5PX-17654-00-00 |
from US $3.54 |
||
|
49
|
49
95814-12050-00 Bolt, Flange |
95814-12050-00 |
from US $4.53 |
||
|
50
|
50
99530-08012-00 Pin, Dowel |
99530-08012-00 |
from US $1.18 |
||
|
51
|
51
4WM-17653-00-00 Slider |
4WM-17653-00-00 |
from US $4.43 |
||
|
52
|
52
93606-76002-00 Pin, Dowel |
93606-76002-00 |
from US $10.27 |
||
|
53
|
53
1D7-17076-00-00 Cover |
1D7-17076-00-00 |
from US $388.74 |
||
|
54
|
54
1D7-17662-00-00 Plate, Stay |
1D7-17662-00-00 |
from US $107.76 |
||
|
55
|
55
1D7-15486-00-00 Grommet |
1D7-15486-00-00 |
from US $6.94 |
||
|
56
|
56
1D7-17665-00-00 Plate 1 |
1D7-17665-00-00 |
from US $240.40 |
||
|
57
|
57
1D7-17675-00-00 Plate 2 |
1D7-17675-00-00 |
from US $27.06 |
||
|
58
|
58
1D7-17672-00-00 Plate, Stay |
1D7-17672-00-00 |
from US $8.22 |
||
|
59
|
59
901-49060-82-00
Screw
|
901-49060-82-00 |
— | ||
| replacement | |||||
|
59
|
59
901-49060-81-00 Screw |
901-49060-81-00 |
from US $1.56 |
||
|
60
|
60
1D7-17655-00-00 Damper, Slider |
1D7-17655-00-00 |
from US $27.49 |
||
|
61
|
61
91314-05010-00 Bolt, Hexagon Socket Head |
91314-05010-00 |
from US $1.84 |
||
|
62
|
62
91314-06025-00 Bolt, Hexagon Socket Head |
91314-06025-00 |
from US $1.66 |
||
|
63
|
63
91314-06030-00 Bolt, Hexagon Socket Head |
91314-06030-00 |
from US $1.42 |
||
|
64
|
64
91314-06050-00 Bolt |
91314-06050-00 |
from US $1.66 |
||
|
65
|
65
1D7-17651-00-00 Pulley, Belt |
1D7-17651-00-00 |
from US $323.29 |
||
|
66
|
66
90179-22016-00 Nut |
90179-22016-00 |
from US $21.92 |
||
|
67
|
67
90208-22004-00 Washer, Conical Spring |
90208-22004-00 |
from US $10.96 |
||
|
68
|
68
1D7-17538-00-00 Cap, Housing |
1D7-17538-00-00 |
from US $98.23 |
||
|
69
|
69
1D7-17933-00-00 Gasket,4 |
1D7-17933-00-00 |
from US $19.69 |
||
|
70
|
70
913-12060-25-00
Bolt
|
913-12060-25-00 |
— | ||
| replacement | |||||
|
70
|
70
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.39 |
||
|
71
|
71
99530-08012-00 Pin, Dowel |
99530-08012-00 |
from US $1.18 |
||
|
72
|
72
5C7-1763A-00-00 Plate, Cap |
5C7-1763A-00-00 |
from US $84.42 |
||
|
73
|
73
90269-07005-00 Rivet |
90269-07005-00 |
from US $1.98 |
||
|
74
|
74
5PX-17446-00-00 Plate |
5PX-17446-00-00 |
from US $6.94 |
||
