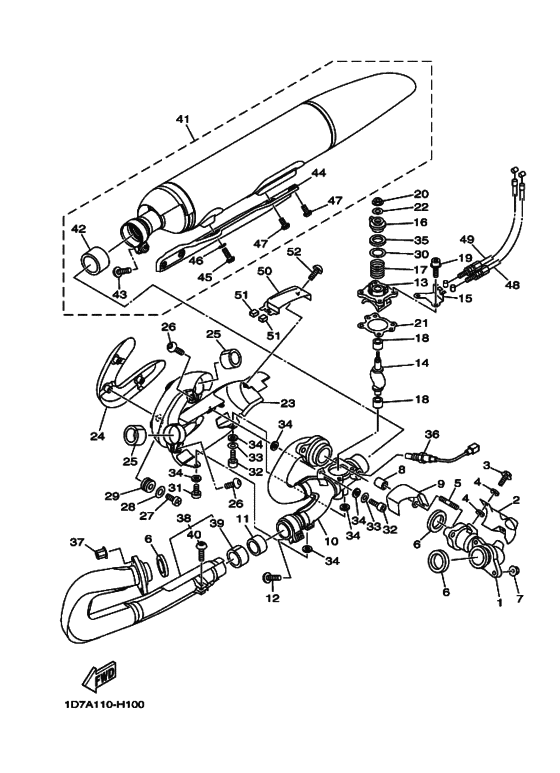

Exhaust Diagram Yamaha XV1900 Stratoliner S
- Year
- 2009
- Colour
- Dark Purplish Blue Metallic L (DPBML; 0865)
- Model code
- 2C5C
- Sales region
- Canada (020)
- Базовая модель
- XV1900CT XV19CTSY
- Engine Capacity
- 1900
- Color Variant
- B
- Model
- XV1900CT (Stratoliner S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1D7-14615-00-00 Joint, Exhaust 1 |
1D7-14615-00-00 |
from US $289.01 |
||
|
2
|
2
1D7-14628-00-00 Protector, Exhaust Pipe |
1D7-14628-00-00 |
from US $58.86 |
||
|
3
|
3
95880-06012-00 Bolt, Flange |
95880-06012-00 |
from US $2.13 |
||
|
4
|
4
90201-05015-00 Washer, Plate |
90201-05015-00 |
from US $2.69 |
||
|
5
|
5
95617-08630-00 Bolt, Stud |
95617-08630-00 |
from US $4.03 |
||
|
6
|
6
3EG-14613-00-00 Сollar, Exhaust Pipe |
3EG-14613-00-00 |
from US $7.90 |
||
|
7
|
7
90185-08097-00 Nut,self-Locking |
90185-08097-00 |
US $1.52 |
||
| replacement | |||||
|
7
|
7
90185-08146-00 Nut, Self-Locking |
90185-08146-00 |
from US $1.52 |
||
|
8
|
8
90179-08022-00 Nut |
90179-08022-00 |
from US $10.06 |
||
| replacement | |||||
|
8
|
8
90179-08442-00 Nut |
90179-08442-00 |
from US $5.38 |
||
|
9
|
9
1D7-14624-00-00 Cover, Exhaust |
1D7-14624-00-00 |
from US $53.47 |
||
|
10
|
10
1D7-14602-00-00 Exhaust Pipe Comp |
1D7-14602-00-00 |
from US $565.38 |
||
|
11
|
11
5YU-14755-00-00 Gasket, Silencer |
5YU-14755-00-00 |
from US $22.98 |
||
|
12
|
12
92014-08035-00 Bolt, Button Head |
92014-08035-00 |
from US $4.03 |
||
|
13
|
13
1D7-14811-00-00 Housing |
1D7-14811-00-00 |
from US $139.54 |
||
| replacement | |||||
|
13
|
13
1D7-14811-01-00 Housing |
1D7-14811-01-00 |
from US $139.54 |
||
|
14
|
14
1D7-14821-00-00 Arm, Shaft (Valve) |
1D7-14821-00-00 |
from US $185.13 |
||
|
15
|
15
1D7-14849-00-00 Bracket |
1D7-14849-00-00 |
from US $8.93 |
||
|
16
|
16
1D7-14865-00-00 Pulley |
1D7-14865-00-00 |
from US $22.24 |
||
| replacement | |||||
|
16
|
16
1D7-14865-01-00 Pulley |
1D7-14865-01-00 |
from US $22.24 |
||
|
17
|
17
1D7-14856-00-00 Spring |
1D7-14856-00-00 |
from US $3.40 |
||
|
18
|
18
5VY-14638-00-00 Collar |
5VY-14638-00-00 |
from US $35.65 |
||
|
19
|
19
90110-06025-00 Bolt, Hexagon Socket Head |
90110-06025-00 |
from US $2.98 |
||
| replacement | |||||
|
19
|
19
91314-06055-00 Bolt, Hexagon Socket Head |
91314-06055-00 |
from US $1.42 |
||
|
20
|
20
90179-06063-00 Nut |
90179-06063-00 |
from US $3.26 |
||
|
21
|
21
1D7-14643-00-00 Gasket 3 |
1D7-14643-00-00 |
from US $13.60 |
||
|
22
|
22
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
23
|
23
1D7-14718-01-00 Protector, Muffler 1 |
1D7-14718-01-00 |
from US $549.20 |
||
|
24
|
24
1D7-14728-00-00 Protector, Muffler 2 |
1D7-14728-00-00 |
from US $256.98 |
||
|
25
|
25
1D7-14714-00-00 Gasket, Muffler |
1D7-14714-00-00 |
from US $22.53 |
||
|
26
|
26
92014-08020-00 Bolt, Button Head |
92014-08020-00 |
from US $1.66 |
||
|
27
|
27
98904-06012-00 Screw, Bind(3Dm) |
98904-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
27
|
27
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
28
|
28
90201-06081-00 Washer, Plate |
90201-06081-00 |
from US $1.15 |
||
|
29
|
29
90480-17001-00 Grommet |
90480-17001-00 |
from US $6.66 |
||
|
30
|
30
5VY-14674-00-00 Valve, Plate |
5VY-14674-00-00 |
from US $3.12 |
||
|
31
|
31
98904-06012-00 Screw, Bind(3Dm) |
98904-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
31
|
31
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
32
|
32
91314-06016-00 Bolt, Hexagon Socket Head |
91314-06016-00 |
from US $1.42 |
||
|
33
|
33
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
34
|
34
90201-05015-00 Washer, Plate |
90201-05015-00 |
from US $2.69 |
||
|
35
|
35
5VY-14648-00-00 Collar 2 |
5VY-14648-00-00 |
from US $38.41 |
||
|
36
|
36
1D7-8592A-00-00 Sensor, Oxygen |
1D7-8592A-00-00 |
from US $274.94 |
||
|
37
|
37
90179-08410-00 Nut |
90179-08410-00 |
from US $1.81 |
||
|
38
|
38
1D7-14620-00-00 Exhaust Pipe Assy 2 |
1D7-14620-00-00 |
from US $771.12 |
||
|
39
|
39
1D7-14714-00-00 Gasket, Muffler |
1D7-14714-00-00 |
from US $22.53 |
||
|
40
|
40
92014-08020-00 Bolt, Button Head |
92014-08020-00 |
from US $1.66 |
||
|
41
|
41
1D7-14710-00-00 Muffler Assy 1 |
1D7-14710-00-00 |
from US $1,518 |
||
| replacement | |||||
|
41
|
41
1D7-14710-01-00 Muffler Assy 1 |
1D7-14710-01-00 |
from US $1,518 |
||
|
42
|
42
5YU-14714-00-00 Gasket, Muffler |
5YU-14714-00-00 |
from US $31.03 |
||
|
43
|
43
92014-08035-00 Bolt, Button Head |
92014-08035-00 |
from US $4.03 |
||
|
44
|
44
1D7-21440-00-00 Muffler Stay Sub-KumiMuff. stay sub-kumi muff. staysub- |
1D7-21440-00-00 |
from US $299.81 |
||
|
45
|
45
90111-08030-00 Bolt, Hex. Socket Button |
90111-08030-00 |
from US $1.98 |
||
|
46
|
46
90201-08048-00 Washer, Plate |
90201-08048-00 |
from US $1.70 |
||
|
47
|
47
90111-08029-00 Bolt, Hex. Socket Button |
90111-08029-00 |
from US $1.84 |
||
|
48
|
48
1D7-1133E-00-00 Cable, Pulley 1 |
1D7-1133E-00-00 |
from US $78.15 |
||
|
49
|
49
1D7-1133F-00-00 Cable, Pulley 2 |
1D7-1133F-00-00 |
from US $78.15 |
||
|
50
|
50
1D7-14826-00-00 Protector, Exhaust |
1D7-14826-00-00 |
from US $74.33 |
||
|
51
|
51
3MA-24181-00-00 Damper, Locating 1 |
3MA-24181-00-00 |
from US $4.58 |
||
|
52
|
52
92014-06010-00 Bolt, Button Head |
92014-06010-00 |
from US $1.66 |
||
