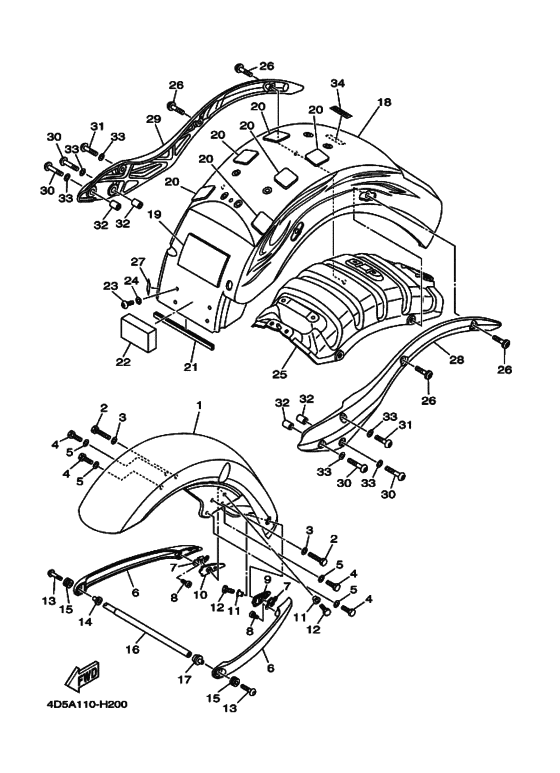

Fender Diagram Yamaha XV1900 Roadliner Midnight
- Year
- 2009
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 4D5C
- Sales region
- Canada (010)
- Базовая модель
- XV1900A XV19MY
- Engine Capacity
- 1900
- Color Variant
- A
- Model
- XV1900A (Roadliner Midnight)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1D7-YK215-00-P1 Front Fender AssyFront fender comp. FOR SMX |
1D7-YK215-00-P1 |
from US $1,027.06 |
||
| replacement | |||||
|
1
|
1
1D7-YK215-01-P1 Front Fender CompFOR SMX |
1D7-YK215-01-P1 |
from US $1,034.88 |
||
|
2
|
2
97027-08030-00 Bolt |
97027-08030-00 |
from US $1.70 |
||
| replacement | |||||
|
2
|
2
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
3
|
3
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.39 |
||
|
4
|
4
970-27080-16-00
Bolt
|
970-27080-16-00 |
— | ||
| replacement | |||||
|
4
|
4
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
5
|
5
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.39 |
||
|
6
|
6
1D7-21562-00-00 Stay, Fender 3 |
1D7-21562-00-00 |
from US $95.22 |
||
| replacement | |||||
|
6
|
6
1D7-21562-01-00 Stay, Fender 3 |
1D7-21562-01-00 |
from US $97.12 |
||
|
7
|
7
1D7-21512-00-00 Bracket, Fender |
1D7-21512-00-00 |
from US $5.97 |
||
|
8
|
8
97707-40610-00 Screw, Tapping |
97707-40610-00 |
from US $1.66 |
||
|
9
|
9
1D7-21541-00-00 Damper 1 |
1D7-21541-00-00 |
from US $3.26 |
||
|
10
|
10
1D7-21542-00-00 Damper 2 |
1D7-21542-00-00 |
from US $3.26 |
||
|
11
|
11
90387-087L0-00 Collar |
90387-087L0-00 |
from US $3.54 |
||
|
12
|
12
97012-06014-00 Bolt |
97012-06014-00 |
from US $1.42 |
||
|
13
|
13
90110-06202-00 Bolt, Hexagon Socket Head |
90110-06202-00 |
from US $1.81 |
||
|
14
|
14
90387-06125-00 Collar |
90387-06125-00 |
from US $6.09 |
||
|
15
|
15
90480-14323-00 Grommet |
90480-14323-00 |
from US $1.94 |
||
| replacement | |||||
|
15
|
15
90480-14329-00 Grommet |
90480-14329-00 |
from US $1.94 |
||
|
16
|
16
1D7-21544-00-00 Collar 1 |
1D7-21544-00-00 |
from US $42.69 |
||
|
17
|
17
1D7-21545-00-00 Plate 3 |
1D7-21545-00-00 |
from US $12.96 |
||
|
18
|
18
1D7-Y2161-E0-P1 Rear Fender CompFOR SMX |
1D7-Y2161-E0-P1 |
US $1,631.11 |
||
|
19
|
19
5PX-21779-00-00 Damper, Locating 2 |
5PX-21779-00-00 |
from US $2.98 |
||
|
20
|
20
5PX-21669-01-00 Seal |
5PX-21669-01-00 |
from US $6.74 |
||
|
21
|
21
1D7-24188-00-00 Mold, Fuel Tank |
1D7-24188-00-00 |
from US $9.07 |
||
|
22
|
22
1D7-21639-00-00 Damper 2 |
1D7-21639-00-00 |
from US $6.66 |
||
|
23
|
23
90111-06065-00 Bolt, Button Head |
90111-06065-00 |
from US $1.56 |
||
| replacement | |||||
|
23
|
23
92012-06012-00 Bolt, Button Head |
92012-06012-00 |
from US $1.36 |
||
|
24
|
24
90201-06036-00 Washer, Plate |
90201-06036-00 |
from US $1.70 |
||
|
25
|
25
1D7-21643-00-00 Stay, Rear |
1D7-21643-00-00 |
from US $204.48 |
||
|
26
|
26
90111-08033-00 Bolt, Hex. Socket Button |
90111-08033-00 |
from US $3.74 |
||
|
27
|
27
3FY-21575-01-00 Seal 1 |
3FY-21575-01-00 |
from US $8.08 |
||
|
28
|
28
1D7-21613-20-00 Stay, Fender 1 |
1D7-21613-20-00 |
US $1,027.04 |
||
|
29
|
29
1D7-21614-20-00 Stay, Fender 2 |
1D7-21614-20-00 |
US $1,027.04 |
||
|
30
|
30
92014-10050-00 Bolt, Button Head(3Ls) |
92014-10050-00 |
from US $4.99 |
||
|
31
|
31
90111-10025-00 Bolt, Button Head |
90111-10025-00 |
from US $3.54 |
||
| replacement | |||||
|
31
|
31
920-14100-40-00 Bolt, Button Head |
920-14100-40-00 |
from US $2.94 |
||
|
32
|
32
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.66 |
||
|
33
|
33
902-0110M-63-00
Washer, Plate
|
902-0110M-63-00 |
— | ||
| replacement | |||||
|
33
|
33
902-01100-81-00 WASHER PLATE |
902-01100-81-00 |
from US $2.69 |
||
|
34
|
34
1D6-2153E-00-00 Emblem, Yamaha |
1D6-2153E-00-00 |
from US $6.19 |
||
| replacements | |||||
|
34
|
34
3WF-2153E-70-00 Emblem, Yamaha |
3WF-2153E-70-00 |
from US $6.19 |
||
|
34
|
34
3WF-2153E-71-00 Emblem, Yamaha |
3WF-2153E-71-00 |
from US $6.82 |
||
