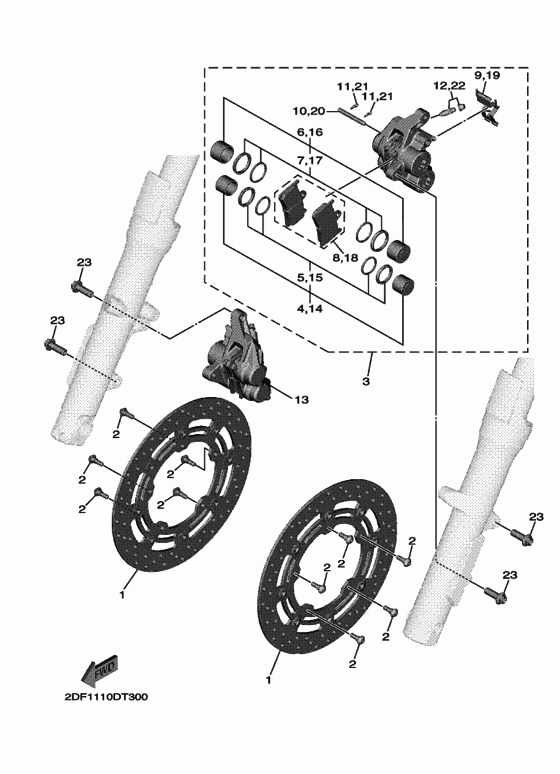

Front brake caliper Diagram Yamaha XV1900 Star Venture
- Year
- 2018
- Colour
- Dark Gray Metallic G
- Model code
- 2DF4
- Sales region
- Canada (010)
- Engine Capacity
- 1900
- Color Variant
- A
- Model
- XV1900FD (Star Venture)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2DF-2581T-00-00 DISK BRAKE ASSY |
2DF-2581T-00-00 |
US $218.18 |
||
|
2
|
2
90109-064G6-00 Bolt |
90109-064G6-00 |
from US $1.66 |
||
| replacement | |||||
|
2
|
2
901-09062-54-00 Bolt |
901-09062-54-00 |
from US $1.66 |
||
|
3
|
3
2DF-2580T-00-00 CALIPER ASSY (LEFT) |
2DF-2580T-00-00 |
US $506.59 |
||
|
4
|
4
4SV-25802-00-00 Piston Assy, Caliper |
4SV-25802-00-00 |
from US $116.23 |
||
|
5
|
5
3MA-25803-10-00 Caliper Seal Kit |
3MA-25803-10-00 |
from US $38.60 |
||
|
6
|
6
4SV-25802-10-00 Piston Assy, Caliper |
4SV-25802-10-00 |
from US $105.55 |
||
|
7
|
7
3GM-25803-10-00 Caliper Seal Kit |
3GM-25803-10-00 |
from US $37.32 |
||
|
8
|
8
2DF-25805-00-00 BRAKE PAD KIT |
2DF-25805-00-00 |
from US $73.22 |
||
|
9
|
9
13S-25919-00-00 Support, Pad |
13S-25919-00-00 |
from US $12.61 |
||
|
10
|
10
4SV-25924-00-00 Pin, Pad |
4SV-25924-00-00 |
from US $16.37 |
||
|
11
|
11
3GM-25925-00-00 Clip |
3GM-25925-00-00 |
from US $5.68 |
||
|
12
|
12
51H-W0048-00-00
Bleed Screw Kit
|
51H-W0048-00-00 |
— | ||
| replacement | |||||
|
12
|
12
1J3-W0048-00-00 Bleed Screw Kit |
1J3-W0048-00-00 |
from US $15.95 |
||
|
13
|
13
2DF-2580U-00-00 CALIPER ASSY (RIGHT) |
2DF-2580U-00-00 |
US $506.59 |
||
|
14
|
14
4SV-25802-00-00 Piston Assy, Caliper |
4SV-25802-00-00 |
from US $116.23 |
||
|
15
|
15
3MA-25803-10-00 Caliper Seal Kit |
3MA-25803-10-00 |
from US $38.60 |
||
|
16
|
16
4SV-25802-10-00 Piston Assy, Caliper |
4SV-25802-10-00 |
from US $105.55 |
||
|
17
|
17
3GM-25803-10-00 Caliper Seal Kit |
3GM-25803-10-00 |
from US $37.32 |
||
|
18
|
18
2DF-25805-00-00 BRAKE PAD KIT |
2DF-25805-00-00 |
from US $73.22 |
||
|
19
|
19
13S-25919-00-00 Support, Pad |
13S-25919-00-00 |
from US $12.61 |
||
|
20
|
20
4SV-25924-00-00 Pin, Pad |
4SV-25924-00-00 |
from US $16.37 |
||
|
21
|
21
3GM-25925-00-00 Clip |
3GM-25925-00-00 |
from US $5.68 |
||
|
22
|
22
51H-W0048-00-00
Bleed Screw Kit
|
51H-W0048-00-00 |
— | ||
| replacement | |||||
|
22
|
22
1J3-W0048-00-00 Bleed Screw Kit |
1J3-W0048-00-00 |
from US $15.95 |
||
|
23
|
23
90105-105A7-00 Bolt, Flange |
90105-105A7-00 |
from US $5.85 |
||
