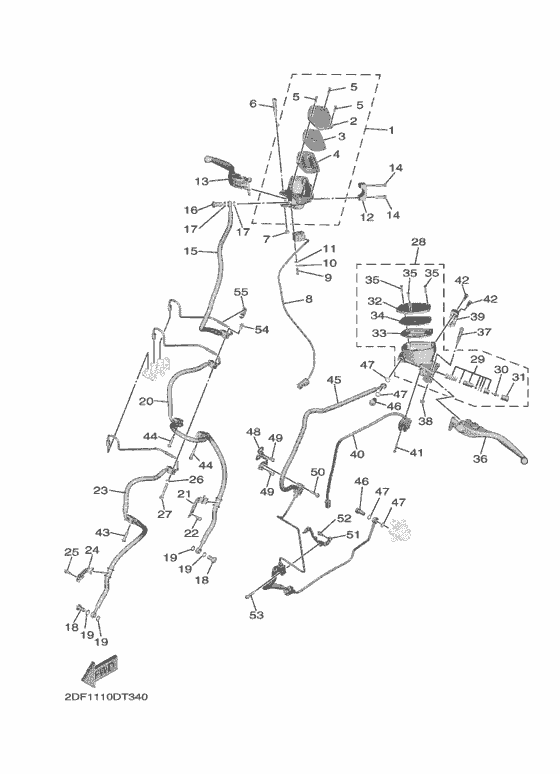

Front master cylinder Diagram Yamaha XV1900 Star Venture
- Year
- 2018
- Colour
- Dark Gray Metallic G
- Model code
- 2DF4
- Sales region
- Canada (010)
- Engine Capacity
- 1900
- Color Variant
- A
- Model
- XV1900FD (Star Venture)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2DF-2580A-00-00 MASTER CYLINDER SUB |
2DF-2580A-00-00 |
from US $132.22 |
||
|
2
|
2
2DF-25852-00-00 Cap, Reservoir |
2DF-25852-00-00 |
US $31.75 |
||
|
3
|
3
2DF-25855-00-00 Bush,diaphragm |
2DF-25855-00-00 |
US $7.81 |
||
|
4
|
4
2DF-25854-00-00 Diaphragm, Reservoir |
2DF-25854-00-00 |
US $10.76 |
||
|
5
|
5
2DF-2589H-00-00 SCREW |
2DF-2589H-00-00 |
US $1.48 |
||
|
6
|
6
2DF-2589F-00-00 Bolt, Lever |
2DF-2589F-00-00 |
from US $11.48 |
||
|
7
|
7
95604-06100-00 Nut, U |
95604-06100-00 |
from US $1.42 |
||
|
8
|
8
2DF-83980-00-00 FRONT STOP SWITCH AS |
2DF-83980-00-00 |
US $129.51 |
||
| replacement | |||||
|
8
|
8
2DF-83980-01-00 |
2DF-83980-01-00 |
US $152.41 |
||
|
9
|
9
985-02040-16-00
Screw, Pan Head
|
985-02040-16-00 |
— | ||
| replacements | |||||
|
9
|
9
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
9
|
9
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
10
|
10
92907-04100-00 Washer, Spring |
92907-04100-00 |
from US $1.21 |
||
|
11
|
11
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
12
|
12
4NK-25867-20-00 Holder |
4NK-25867-20-00 |
US $45.63 |
||
|
13
|
13
2DF-83922-00-00 LEVER 2 |
2DF-83922-00-00 |
from US $63 |
||
|
14
|
14
91314-06025-00 Bolt, Hexagon Socket Head |
91314-06025-00 |
from US $1.66 |
||
|
15
|
15
2DF-2584A-00-00 BRAKE HOSE ASSY |
2DF-2584A-00-00 |
US $89.48 |
||
|
16
|
16
90401-10172-00 Bolt, Union |
90401-10172-00 |
from US $2.77 |
||
|
17
|
17
90430-10005-00 Gasket |
90430-10005-00 |
from US $1.66 |
||
|
18
|
18
90401-10172-00 Bolt, Union |
90401-10172-00 |
from US $2.77 |
||
|
19
|
19
90430-10005-00 Gasket |
90430-10005-00 |
from US $1.66 |
||
|
20
|
20
2DF-2584B-00-00 HOSE, BRAKE |
2DF-2584B-00-00 |
US $179.44 |
||
|
21
|
21
2DF-25876-00-00 HOLDER, BRAKE HOSE 2 |
2DF-25876-00-00 |
US $12.53 |
||
|
22
|
22
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.52 |
||
|
23
|
23
2DF-2584C-00-00 HOSE, BRAKE |
2DF-2584C-00-00 |
US $124.38 |
||
|
24
|
24
2DF-25887-00-00 HOLDER, BRAKE HOSE |
2DF-25887-00-00 |
US $10.62 |
||
|
25
|
25
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.52 |
||
|
26
|
26
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
27
|
27
90110-06149-00 Bolt |
90110-06149-00 |
from US $1.07 |
||
| replacement | |||||
|
27
|
27
91317-06040-00 Bolt |
91317-06040-00 |
from US $1.07 |
||
|
28
|
28
2DF-26401-00-00 MASTER CYLINDER SUB |
2DF-26401-00-00 |
US $290.14 |
||
|
29
|
29
2DF-26402-00-00 CYLINDER KIT, MASTER |
2DF-26402-00-00 |
US $23.47 |
||
|
30
|
30
1D7-26464-00-00 Rod, Push |
1D7-26464-00-00 |
from US $38.41 |
||
|
31
|
31
3GM-26455-00-00 Bush |
3GM-26455-00-00 |
from US $9.85 |
||
|
32
|
32
2DF-25852-00-00 Cap, Reservoir |
2DF-25852-00-00 |
US $31.75 |
||
|
33
|
33
2DF-25854-00-00 Diaphragm, Reservoir |
2DF-25854-00-00 |
US $10.76 |
||
|
34
|
34
2DF-25855-00-00 Bush,diaphragm |
2DF-25855-00-00 |
US $7.81 |
||
|
35
|
35
2DF-2589H-00-00 SCREW |
2DF-2589H-00-00 |
US $1.48 |
||
|
36
|
36
2DF-83912-00-00 LEVER 1 |
2DF-83912-00-00 |
US $83.20 |
||
|
37
|
37
2DF-2589F-00-00 Bolt, Lever |
2DF-2589F-00-00 |
from US $11.48 |
||
|
38
|
38
95604-06100-00 Nut, U |
95604-06100-00 |
from US $1.42 |
||
|
39
|
39
4NK-25867-20-00 Holder |
4NK-25867-20-00 |
US $45.63 |
||
|
40
|
40
2DF-82917-00-00 SWITCH |
2DF-82917-00-00 |
US $125.55 |
||
|
41
|
41
901-59040-11-00 Screw, Pan Head With |
901-59040-11-00 |
US $1.70 |
||
| replacement | |||||
|
41
|
41
97602-04230-00 Screw, Pan Head With Washer |
97602-04230-00 |
from US $1.70 |
||
|
42
|
42
91314-06025-00 Bolt, Hexagon Socket Head |
91314-06025-00 |
from US $1.66 |
||
|
43
|
43
92017-06025-00 Bolt, Button Head |
92017-06025-00 |
from US $1.66 |
||
|
44
|
44
92017-06025-00 Bolt, Button Head |
92017-06025-00 |
from US $1.66 |
||
|
45
|
45
2DF-26472-00-00 HOSE, CLUTCH 1 |
2DF-26472-00-00 |
US $196.69 |
||
|
46
|
46
90401-10172-00 Bolt, Union |
90401-10172-00 |
from US $2.77 |
||
|
47
|
47
90430-10005-00 Gasket |
90430-10005-00 |
from US $1.66 |
||
|
48
|
48
2DF-26296-00-00 BRACKET |
2DF-26296-00-00 |
US $12.73 |
||
|
49
|
49
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.52 |
||
|
50
|
50
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
50
|
50
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
51
|
51
2DF-26292-00-00 STAY |
2DF-26292-00-00 |
US $11.97 |
||
|
52
|
52
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.52 |
||
|
53
|
53
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
53
|
53
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
54
|
54
950-27060-10-00 Bolt, Flange(4My) |
950-27060-10-00 |
from US $1.18 |
||
|
55
|
55
90464-07003-00 Clamp |
90464-07003-00 |
from US $1.84 |
||
