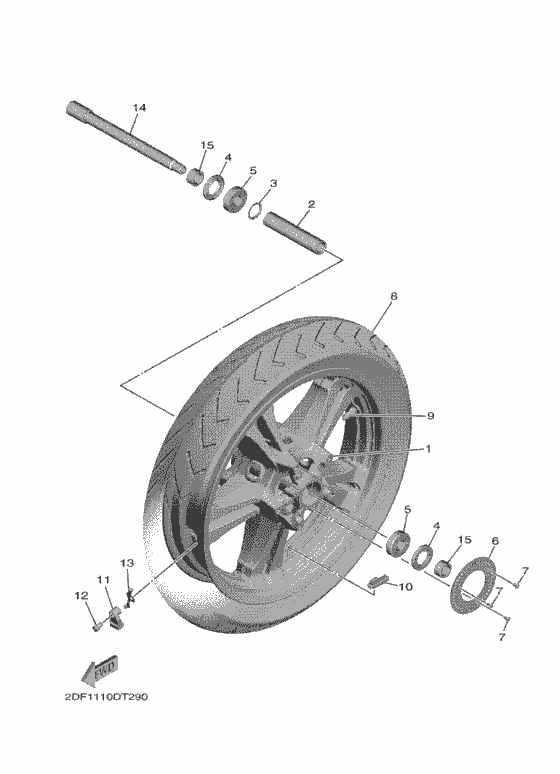

Front wheel Diagram Yamaha XV1900 Star Venture
- Year
- 2018
- Colour
- Dark Gray Metallic G
- Model code
- 2DF4
- Sales region
- Canada (010)
- Engine Capacity
- 1900
- Color Variant
- A
- Model
- XV1900FD (Star Venture)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2DF-25168-00-00 CAST WHEEL, FRONT |
2DF-25168-00-00 |
US $680.76 |
||
|
2
|
2
2DF-25105-00-00 SPACER |
2DF-25105-00-00 |
US $30.58 |
||
|
3
|
3
2DF-25115-00-00 FLANGE, SPACER 1 |
2DF-25115-00-00 |
US $9.95 |
||
|
4
|
4
93106-30044-00 Oil Seal |
93106-30044-00 |
from US $4.16 |
||
|
5
|
5
933-06272-12-00 Bearing |
933-06272-12-00 |
from US $40.51 |
||
|
6
|
6
1XC-2517G-00-00 Rotor, Sensor |
1XC-2517G-00-00 |
from US $94.78 |
||
|
7
|
7
901-49050-29-00
Screw
|
901-49050-29-00 |
— | ||
| replacement | |||||
|
7
|
7
901-49050-30-00 Screw |
901-49050-30-00 |
from US $1.52 |
||
|
8
|
8
94113-18039-00 TIREBRIDGESTONE |
94113-18039-00 |
US $530.24 |
||
|
9
|
9
939-00000-30-00 Valve, Rim (Tr412)TAIHEIYO |
939-00000-30-00 |
from US $7.65 |
||
|
10
|
10
5MT-25398-00-00 Balancer, Wheel (10G)UN |
5MT-25398-00-00 |
from US $8.46 |
||
|
10
|
10
5MT-25398-10-00 Balancer, Wheel (20G)UN |
5MT-25398-10-00 |
from US $8.46 |
||
|
10
|
10
5MT-25398-20-00 Balancer, Wheel (30G)UN |
5MT-25398-20-00 |
from US $8.46 |
||
|
11
|
11
2DF-82765-00-00 SENSOR, TIRE PRESS. |
2DF-82765-00-00 |
US $291.92 |
||
| replacement | |||||
|
11
|
11
2DF-82765-01-00 Sensor, Tire Press. |
2DF-82765-01-00 |
US $366.80 |
||
|
12
|
12
2DF-25411-00-00 Bolt |
2DF-25411-00-00 |
US $60.71 |
||
|
13
|
13
2DF-2511A-00-00 PLATE, FLANG |
2DF-2511A-00-00 |
US $9.70 |
||
|
14
|
14
2DF-25181-00-00 AXLE, WHEEL |
2DF-25181-00-00 |
US $71.82 |
||
|
15
|
15
90387-22035-00 COLLAR |
90387-22035-00 |
US $15.05 |
||
