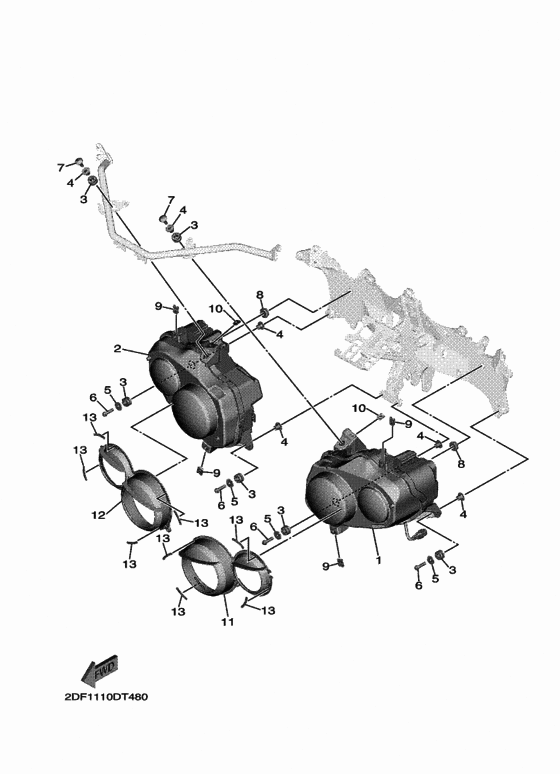

Headlight Diagram Yamaha XV1900 Star Venture
- Year
- 2018
- Colour
- Dark Gray Metallic G
- Model code
- 2DF4
- Sales region
- Canada (010)
- Engine Capacity
- 1900
- Color Variant
- A
- Model
- XV1900FD (Star Venture)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2DF-84300-20-00 HEADLIGHT ASSY |
2DF-84300-20-00 |
US $877.46 |
||
|
2
|
2
2DF-84300-30-00 HEADLIGHT ASSY |
2DF-84300-30-00 |
US $858.82 |
||
|
3
|
3
5PS-83513-00-00 Damper |
5PS-83513-00-00 |
from US $2.08 |
||
|
4
|
4
90387-06161-00 Collar |
90387-06161-00 |
from US $2.91 |
||
|
5
|
5
90201-06036-00 Washer, Plate |
90201-06036-00 |
from US $1.70 |
||
|
6
|
6
95022-06025-00 Bolt, Flange |
95022-06025-00 |
from US $1.52 |
||
|
7
|
7
901-11061-37-00 Bolt,hex. Socket Button |
901-11061-37-00 |
from US $1.52 |
||
|
8
|
8
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
8
|
8
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.36 |
||
|
9
|
9
90183-060A2-00 Nut, Spring |
90183-060A2-00 |
from US $1.70 |
||
|
10
|
10
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
10
|
10
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $2.08 |
||
|
11
|
11
2DF-2838D-00-00 COVER, HEADLIGHT 1 |
2DF-2838D-00-00 |
US $81.58 |
||
|
12
|
12
2DF-2838S-00-00 COVER, HEADLIGHT 2 |
2DF-2838S-00-00 |
US $81.58 |
||
|
13
|
13
2DF-8336V-00-00 SHEET |
2DF-8336V-00-00 |
US $2.36 |
||
