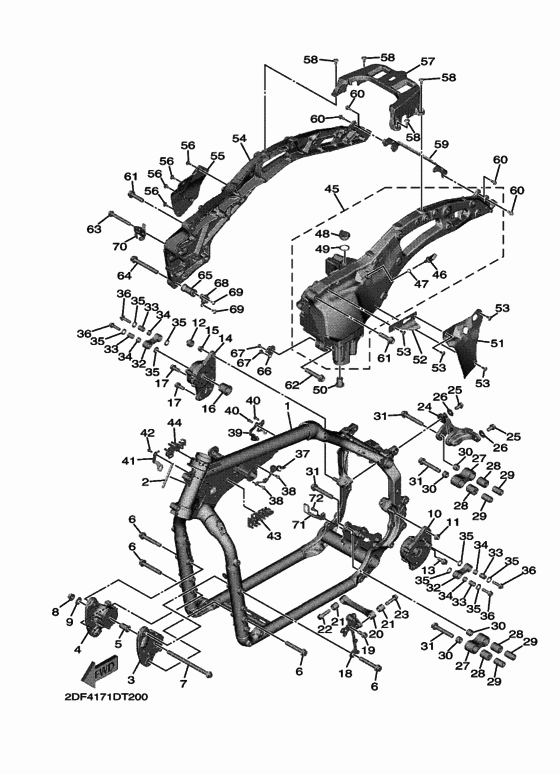

Frame Diagram Yamaha XV1900 Star Venture
- Year
- 2018
- Colour
- Dull Red Metallic D
- Model code
- 2DF4
- Sales region
- Canada (010)
- Engine Capacity
- 1900
- Color Variant
- B
- Model
- XV1900FD (Star Venture)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2DF-21110-00-00 FRAME COMP. |
2DF-21110-00-00 |
US $3,215.66 |
||
|
2
|
2
3D8-2117G-00-00 Protector |
3D8-2117G-00-00 |
from US $4.97 |
||
|
3
|
3
2DF-2140X-00-00 ENGINE BRACKET SUB-C |
2DF-2140X-00-00 |
US $158.90 |
||
|
4
|
4
2DF-2140Y-00-00 ENGINE BRACKET SUB-C |
2DF-2140Y-00-00 |
US $149.65 |
||
|
5
|
5
2DF-2149C-00-00 Bolt |
2DF-2149C-00-00 |
US $17.77 |
||
|
6
|
6
90105-12102-00 BOLT, FLANGE |
90105-12102-00 |
US $10.22 |
||
|
7
|
7
90105-12026-00 Bolt, Flange |
90105-12026-00 |
from US $10.20 |
||
|
8
|
8
956-07122-00-00 Nut, Self-Locking |
956-07122-00-00 |
from US $9.02 |
||
|
9
|
9
90201-126A7-00 Washer, Plate (4N0) |
90201-126A7-00 |
from US $1.81 |
||
|
10
|
10
2DF-21410-00-00 ENGINE BRACKET COMP. |
2DF-21410-00-00 |
US $153.56 |
||
|
11
|
11
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
12
|
12
5YU-2143A-00-00 Cap |
5YU-2143A-00-00 |
US $1.70 |
||
|
13
|
13
90105-10236-00 Bolt, Washer BasedBolt, flange |
90105-10236-00 |
from US $3.60 |
||
| replacement | |||||
|
13
|
13
90105-102A3-00 Bolt, Flange |
90105-102A3-00 |
from US $3.60 |
||
|
14
|
14
2DF-21420-00-00 ENGINE BRACKET COMP. |
2DF-21420-00-00 |
US $235.48 |
||
|
15
|
15
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
16
|
16
2DF-21495-00-00 BOLT, ENGINE ADJUSTI |
2DF-21495-00-00 |
US $29.70 |
||
|
17
|
17
90105-10236-00 Bolt, Washer BasedBolt, flange |
90105-10236-00 |
from US $3.60 |
||
| replacement | |||||
|
17
|
17
90105-102A3-00 Bolt, Flange |
90105-102A3-00 |
from US $3.60 |
||
|
18
|
18
2DF-2145B-00-00 PLATE, ENGINE MOUNT |
2DF-2145B-00-00 |
US $39.33 |
||
|
19
|
19
901-05104-75-00 Bolt, Flange |
901-05104-75-00 |
from US $1.28 |
||
| replacement | |||||
|
19
|
19
95D-37100-25-00 Bolt, Flange Deep Recess |
95D-37100-25-00 |
from US $1.28 |
||
|
20
|
20
2DF-21319-00-00 STAY, ENGINE 6 |
2DF-21319-00-00 |
US $32.35 |
||
|
21
|
21
90388-10003-00 DAMPER |
90388-10003-00 |
US $20.75 |
||
|
22
|
22
90105-10463-00 BOLT, FLANGE |
90105-10463-00 |
US $2.57 |
||
| replacement | |||||
|
22
|
22
90105-10256-00 Bolt, Flange |
90105-10256-00 |
US $5.02 |
||
|
23
|
23
95D32-10040-00 BOLT, FLANGE DEEP RE |
95D32-10040-00 |
from US $1.21 |
||
|
24
|
24
2DF-21317-00-00 STAY, ENGINE 3 |
2DF-21317-00-00 |
US $47.16 |
||
|
25
|
25
901-05104-77-00
Bolt, Flange
|
901-05104-77-00 |
— | ||
|
26
|
26
90201-10065-00 Washer, Plate |
90201-10065-00 |
from US $1.81 |
||
|
27
|
27
2DF-21387-00-00 STAY, ENGINE 7 |
2DF-21387-00-00 |
US $32.36 |
||
|
28
|
28
93315-32075-00 BEARING |
93315-32075-00 |
US $21.91 |
||
|
29
|
29
90387-12604-00 COLLAR |
90387-12604-00 |
US $11.23 |
||
|
30
|
30
90387-12607-00 COLLAR |
90387-12607-00 |
from US $7.65 |
||
|
31
|
31
90105-12102-00 BOLT, FLANGE |
90105-12102-00 |
US $10.22 |
||
|
32
|
32
2DF-2118W-00-00 STOPPER |
2DF-2118W-00-00 |
US $43.18 |
||
|
33
|
33
903-87081-02-00 Collar |
903-87081-02-00 |
from US $5.67 |
||
|
34
|
34
90383-14004-00 BUSH, FORMED |
90383-14004-00 |
US $1.42 |
||
|
35
|
35
93109-14001-00 OIL SEAL |
93109-14001-00 |
US $4.41 |
||
|
36
|
36
90105-08254-00 Bolt, Flange |
90105-08254-00 |
from US $2.45 |
||
|
37
|
37
2DF-2117A-00-00 STAY |
2DF-2117A-00-00 |
US $14.69 |
||
|
38
|
38
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.52 |
||
|
39
|
39
2DF-2116J-00-00 BRACKET 7 |
2DF-2116J-00-00 |
US $11.20 |
||
|
40
|
40
92012-06016-00 Bolt, Button Head |
92012-06016-00 |
from US $1.50 |
||
|
41
|
41
2DF-2116K-00-00 BRACKET 8 |
2DF-2116K-00-00 |
US $5.92 |
||
|
42
|
42
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.52 |
||
|
43
|
43
2DF-2117R-00-00 COVER 4 |
2DF-2117R-00-00 |
US $32.78 |
||
|
44
|
44
2DF-2117Y-00-00 COVER 10 |
2DF-2117Y-00-00 |
US $29.32 |
||
|
45
|
45
2DF-2110C-00-00 BACK STAY COMP. , 1 |
2DF-2110C-00-00 |
US $1,172.17 |
||
|
46
|
46
2DF-15362-00-00 PLUG, OIL LEVEL |
2DF-15362-00-00 |
US $23.13 |
||
|
47
|
47
932-10091-65-00
O-Ring
|
932-10091-65-00 |
— | ||
| replacements | |||||
|
47
|
47
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.39 |
||
|
47
|
47
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.39 |
||
|
48
|
48
3F9-15362-10-00 Plug, Oil Level |
3F9-15362-10-00 |
from US $11.79 |
||
| replacement | |||||
|
48
|
48
BAT-15362-00-00 PLUG OIL LEVEL |
BAT-15362-00-00 |
from US $11.79 |
||
|
49
|
49
932-10277-78-00 O-Ring(1Kt) |
932-10277-78-00 |
from US $4.04 |
||
|
50
|
50
2DF-13421-00-00 STRAINER 2 |
2DF-13421-00-00 |
US $33.10 |
||
|
51
|
51
2DF-2117T-00-00 COVER 5 |
2DF-2117T-00-00 |
US $50.31 |
||
|
52
|
52
2DF-2117N-00-00 COVER 3 |
2DF-2117N-00-00 |
US $10.67 |
||
|
53
|
53
90269-05073-00 Rivet |
90269-05073-00 |
from US $1.98 |
||
|
54
|
54
2DF-21152-00-00 BRACKET, REAR FENDER |
2DF-21152-00-00 |
US $690.14 |
||
|
55
|
55
2DF-2117U-00-00 COVER 6 |
2DF-2117U-00-00 |
US $27 |
||
|
56
|
56
90269-05073-00 Rivet |
90269-05073-00 |
from US $1.98 |
||
|
57
|
57
2DF-21131-00-00 BRACKET |
2DF-21131-00-00 |
US $104.11 |
||
|
58
|
58
90111-06116-00 Bolt, Hex. Socket Button |
90111-06116-00 |
from US $1.42 |
||
|
59
|
59
2DF-2115L-00-00 BRACKET, MEMBER 1 |
2DF-2115L-00-00 |
US $51.19 |
||
|
60
|
60
90110-06107-00 Bolt, Hexagon Socket Head |
90110-06107-00 |
from US $1.56 |
||
|
61
|
61
901-05121-15-00
Bolt, Flange
|
901-05121-15-00 |
— | ||
|
62
|
62
901-05121-16-00
Bolt, Flange
|
901-05121-16-00 |
— | ||
|
63
|
63
901-10100-47-00 Bolt, Hexagon Socket Head |
901-10100-47-00 |
from US $4.86 |
||
| replacement | |||||
|
63
|
63
901-10100-42-00 Bolt, Hexagon Socket Head |
901-10100-42-00 |
from US $5.10 |
||
|
64
|
64
901-05121-17-00
Bolt, Flange
|
901-05121-17-00 |
— | ||
|
65
|
65
2DF-2115H-00-00 BOSS |
2DF-2115H-00-00 |
US $12.85 |
||
|
66
|
66
2DF-2119W-00-00 BRKT., LH. |
2DF-2119W-00-00 |
US $7.85 |
||
|
67
|
67
90111-05049-00 BOLT,HEX. SOCKET BUT |
90111-05049-00 |
from US $1.42 |
||
|
68
|
68
2DF-2119V-00-00 BRACKET |
2DF-2119V-00-00 |
US $9.31 |
||
|
69
|
69
90111-05049-00 BOLT,HEX. SOCKET BUT |
90111-05049-00 |
from US $1.42 |
||
|
70
|
70
2DF-2116M-00-00 BRACKET 10 |
2DF-2116M-00-00 |
US $15.71 |
||
|
71
|
71
2DF-21161-00-00 HOLDER, CABLE |
2DF-21161-00-00 |
US $13.64 |
||
|
72
|
72
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.52 |
||
