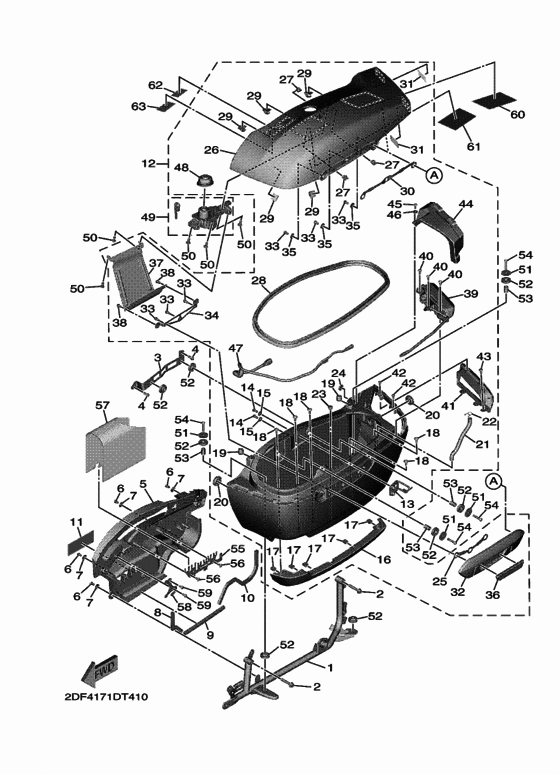

Saddlebag Diagram Yamaha XV1900 Star Venture
- Year
- 2018
- Colour
- Dull Red Metallic D
- Model code
- 2DF4
- Sales region
- Canada (010)
- Engine Capacity
- 1900
- Color Variant
- B
- Model
- XV1900FD (Star Venture)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2DF-28473-00-00 FRAME, SADDLEBAG 1 |
2DF-28473-00-00 |
US $229.27 |
||
|
2
|
2
95D32-08045-00 BOLT, FLANGE DEEP RE |
95D32-08045-00 |
from US $1.07 |
||
|
3
|
3
2DF-28413-00-00 STAY, FRONT GUARD 1 |
2DF-28413-00-00 |
US $28.15 |
||
|
4
|
4
950-27060-16-00
Bolt, Flange
|
950-27060-16-00 |
— | ||
| replacement | |||||
|
4
|
4
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.64 |
||
|
5
|
5
2DF-2846T-00-00 COVER, SIDE BOX 1 |
2DF-2846T-00-00 |
US $87.82 |
||
|
6
|
6
95022-06012-00 Bolt, Flange |
95022-06012-00 |
from US $1.18 |
||
|
7
|
7
90387-06071-00 Collar |
90387-06071-00 |
from US $5.53 |
||
|
8
|
8
2DF-28425-00-00 DAMPER 3 |
2DF-28425-00-00 |
US $3.26 |
||
|
9
|
9
90520-08005-00 DAMPER, PLATE |
90520-08005-00 |
US $2.52 |
||
|
10
|
10
2DF-28455-00-00 DAMPER, 4 |
2DF-28455-00-00 |
US $11.29 |
||
|
11
|
11
4GY-2414H-00-00 Damper, Plate 1 |
4GY-2414H-00-00 |
from US $2.25 |
||
|
12
|
12
2DF-28410-00-P1 Saddlebag Assy., 1UR FOR DRMD |
2DF-28410-00-P1 |
US $2,719.10 |
||
| replacement | |||||
|
12
|
12
2DF-28410-04-P1 Saddlebag Assy., 1UR FOR DRMD |
2DF-28410-04-P1 |
US $2,834.93 |
||
|
13
|
13
2DF-28494-00-00 HOOK 3 |
2DF-28494-00-00 |
US $74.63 |
||
|
14
|
14
92017-06014-00 Bolt, Button Head |
92017-06014-00 |
from US $1.70 |
||
|
15
|
15
90201-06055-00 Washer, Plate |
90201-06055-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
90201-06049-00 Washer, Plate |
90201-06049-00 |
from US $1.70 |
||
|
16
|
16
2DF-2843J-00-00 COVER 3 |
2DF-2843J-00-00 |
US $85.59 |
||
|
17
|
17
90183-05073-00 Nut, Spring |
90183-05073-00 |
from US $4.53 |
||
|
18
|
18
90111-05021-00 Bolt,hex. Socket Button |
90111-05021-00 |
from US $1.77 |
||
|
19
|
19
2DF-28415-00-00 DAMPER 1 |
2DF-28415-00-00 |
US $5.02 |
||
|
20
|
20
2DF-2847F-00-00 SEAL 5 |
2DF-2847F-00-00 |
US $6.32 |
||
|
21
|
21
904-45123-G4-00 New Genuine Part |
904-45123-G4-00 |
from US $2.69 |
||
| replacement | |||||
|
21
|
21
84M-1243F-00-00 Hose, 3 |
84M-1243F-00-00 |
from US $2.69 |
||
|
22
|
22
90467-12M11-00 Clip |
90467-12M11-00 |
from US $1.84 |
||
|
23
|
23
90338-10132-00 Plug |
90338-10132-00 |
from US $1.39 |
||
|
24
|
24
2DF-2846F-00-00 SEAL 4 |
2DF-2846F-00-00 |
US $2.61 |
||
|
25
|
25
2DF-284BE-00-00 STAY, 7 |
2DF-284BE-00-00 |
US $18.76 |
||
|
26
|
26
2DF-28448-00-P1 SADDLEBAG 3UR FOR DRMD |
2DF-28448-00-P1 |
US $357.34 |
||
|
27
|
27
90183-062A0-00 NUT, SPRING |
90183-062A0-00 |
US $3.64 |
||
|
28
|
28
2DF-28429-00-00 SEAL 2 |
2DF-28429-00-00 |
US $41.02 |
||
|
29
|
29
2DF-81128-00-00 CLAMP |
2DF-81128-00-00 |
US $4.34 |
||
|
30
|
30
2DF-284BG-00-00 STAY, 9 |
2DF-284BG-00-00 |
US $24.73 |
||
|
31
|
31
2DF-284BP-00-00 SEAL, 16 |
2DF-284BP-00-00 |
US $3.06 |
||
|
32
|
32
2DF-2843S-00-00 HINGE SUB-ASSY., 1 |
2DF-2843S-00-00 |
from US $598.19 |
||
|
33
|
33
901-11061-02-00 Bolt,hex. Socket But |
901-11061-02-00 |
from US $1.42 |
||
| replacement | |||||
|
33
|
33
901-11061-03-00 BOLT, BUTTON HEAD |
901-11061-03-00 |
from US $1.42 |
||
|
34
|
34
2DF-2846M-00-00 BRACKET, HINGE |
2DF-2846M-00-00 |
US $23.90 |
||
|
35
|
35
90201-06557-00 Washer, Plate |
90201-06557-00 |
from US $1.70 |
||
| replacement | |||||
|
35
|
35
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
36
|
36
2DF-85130-00-00 REAR REFLECTOR ASSY |
2DF-85130-00-00 |
from US $23.38 |
||
|
37
|
37
2DF-2846K-00-00 COVER, HINGE 1 |
2DF-2846K-00-00 |
US $154.04 |
||
|
38
|
38
92017-06010-00 Bolt, Button Head |
92017-06010-00 |
from US $1.56 |
||
|
39
|
39
2DF-83330-00-00 REAR FLASHER LIGHT A |
2DF-83330-00-00 |
US $275.02 |
||
|
40
|
40
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
40
|
40
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
41
|
41
2DF-833A1-00-00 GARNISH, FLASHER 1 |
2DF-833A1-00-00 |
US $146.92 |
||
|
42
|
42
98907-05012-00 Screw, Bind |
98907-05012-00 |
from US $1.42 |
||
|
43
|
43
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
43
|
43
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
44
|
44
2DF-2844B-00-00 LID 1 |
2DF-2844B-00-00 |
US $40.95 |
||
|
45
|
45
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
45
|
45
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
46
|
46
90202-07015-00 Washer, Plate (122-21725-00) |
90202-07015-00 |
from US $3.74 |
||
|
47
|
47
2DF-86176-00-00 WIRE, LEAD |
2DF-86176-00-00 |
US $82.93 |
||
| replacement | |||||
|
47
|
47
2DF-86176-01-00 Wire, Lead |
2DF-86176-01-00 |
US $78.98 |
||
|
48
|
48
2DF-2845W-00-00 CAP,1 |
2DF-2845W-00-00 |
US $35.44 |
||
|
49
|
49
2DF-W2849-10-00 LOCK ASSY |
2DF-W2849-10-00 |
US $359.12 |
||
| replacement | |||||
|
49
|
49
2DF-W2849-11-00 Lock Assy |
2DF-W2849-11-00 |
US $440.64 |
||
|
50
|
50
90111-06041-00 Bolt, Hex. Socket Button |
90111-06041-00 |
from US $1.81 |
||
|
51
|
51
90201-065G8-00 Washer, Plate |
90201-065G8-00 |
from US $1.70 |
||
|
52
|
52
90480-20447-00 Grommet |
90480-20447-00 |
from US $2.55 |
||
|
53
|
53
90387-08111-00 COLLAR |
90387-08111-00 |
US $5.53 |
||
|
54
|
54
92017-06035-00 Bolt, Button Head |
92017-06035-00 |
from US $1.80 |
||
|
55
|
55
2DF-2849V-00-00 PLATE, 11 |
2DF-2849V-00-00 |
US $16.09 |
||
|
56
|
56
97702-50014-00 Screw, Truss Head Tapping |
97702-50014-00 |
from US $1.52 |
||
| replacement | |||||
|
56
|
56
97707-50014-00 Screw, Truss Head Tapping |
97707-50014-00 |
from US $1.52 |
||
|
57
|
57
2DF-82176-00-00 DAMPER |
2DF-82176-00-00 |
US $11.45 |
||
|
58
|
58
2DF-2849W-00-00 PLATE, 12 |
2DF-2849W-00-00 |
US $14.26 |
||
|
59
|
59
97702-50014-00 Screw, Truss Head Tapping |
97702-50014-00 |
from US $1.52 |
||
| replacement | |||||
|
59
|
59
97707-50014-00 Screw, Truss Head Tapping |
97707-50014-00 |
from US $1.52 |
||
|
60
|
60
4XY-28446-02-00 Label, Caution |
4XY-28446-02-00 |
US $14.67 |
||
|
61
|
61
4XY-28446-12-00
Label, Caution
|
4XY-28446-12-00 |
— | ||
|
62
|
62
BL3-21668-A0-00 LABEL, TIRE |
BL3-21668-A0-00 |
US $18.43 |
||
|
63
|
63
BL3-21668-B0-00
Label, Tire
|
BL3-21668-B0-00 |
— | ||
