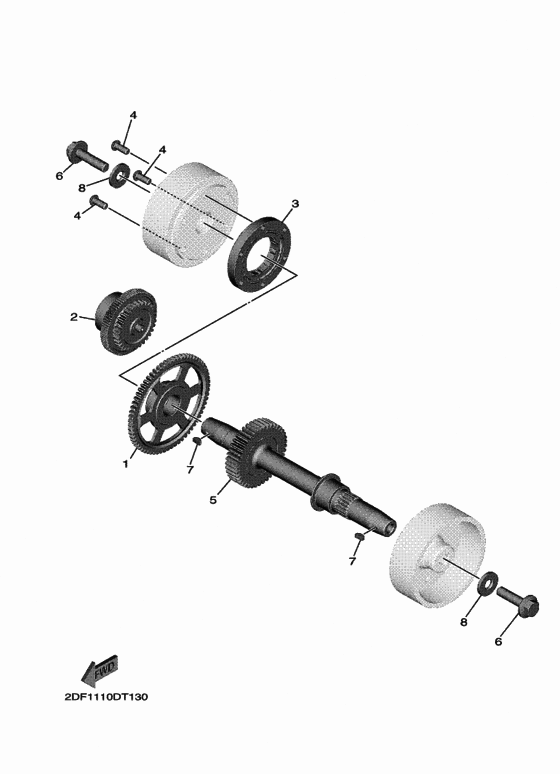

Starter Diagram Yamaha XV1900 Star Venture
- Year
- 2018
- Colour
- Dull Red Metallic D
- Model code
- 2DF4
- Sales region
- Canada (010)
- Engine Capacity
- 1900
- Color Variant
- B
- Model
- XV1900FD (Star Venture)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2DF-15515-00-00 GEAR 3 |
2DF-15515-00-00 |
US $116.59 |
||
|
2
|
2
2DF-15560-00-00 DAMPER ASSY |
2DF-15560-00-00 |
US $395.01 |
||
|
3
|
3
2DF-15590-00-00 Starter One-Way Assy |
2DF-15590-00-00 |
US $166.70 |
||
|
4
|
4
90149-08038-00 Screw |
90149-08038-00 |
from US $1.84 |
||
| replacement | |||||
|
4
|
4
901-49080-42-00 Screw |
901-49080-42-00 |
from US $1.84 |
||
|
5
|
5
2DF-15659-00-00 SHAFT |
2DF-15659-00-00 |
US $566.64 |
||
|
6
|
6
90105-12584-00 Bolt, Flange |
90105-12584-00 |
from US $7.37 |
||
|
7
|
7
902-80050-48-00
Key, Woodruff
|
902-80050-48-00 |
— | ||
| replacement | |||||
|
7
|
7
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.15 |
||
|
8
|
8
90201-12008-00 Washer, Plate |
90201-12008-00 |
from US $11.76 |
||
