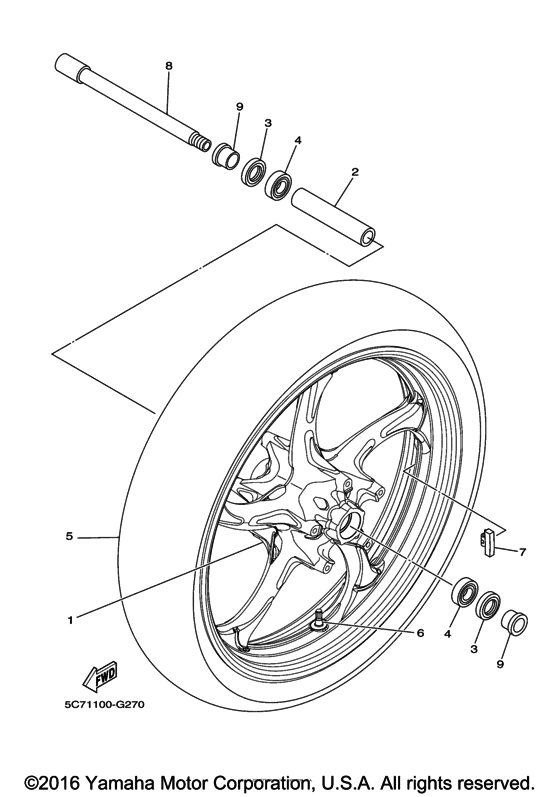

Front wheel Diagram Yamaha XV1900 Raider
- Year
- 2017
- Model code
- BL94
- Sales region
- USA
- Базовая модель
- XV19CHB
- Engine Capacity
- 1900
- Model
- XV1900CU (Raider)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5C7-25168-11-98 CAST WHEEL, FRONTLGB FOR SMX |
5C7-25168-11-98 |
from US $1,104.30 |
||
|
2
|
2
903-87220-8J-00 Collar |
903-87220-8J-00 |
from US $17.61 |
||
|
3
|
3
93106-28043-00 Oil Seal |
93106-28043-00 |
from US $5.68 |
||
|
4
|
4
93306-00420-00 Bearing |
93306-00420-00 |
from US $21.37 |
||
|
6
|
6
939-00000-30-00 Valve, Rim (Tr412)TAIHEIYO |
939-00000-30-00 |
from US $7.65 |
||
|
7
|
7
5MT-25398-00-00 Balancer, Wheel (10G)UN |
5MT-25398-00-00 |
from US $8.46 |
||
|
7
|
7
5MT-25398-10-00 Balancer, Wheel (20G)UN |
5MT-25398-10-00 |
from US $8.46 |
||
|
7
|
7
5MT-25398-20-00 Balancer, Wheel (30G)UN |
5MT-25398-20-00 |
from US $8.46 |
||
|
8
|
8
1D7-25181-10-00 Axle, Wheel |
1D7-25181-10-00 |
from US $70.38 |
||
| replacement | |||||
|
8
|
8
1D7-25181-00-00 Axle, Wheel |
1D7-25181-00-00 |
from US $73.22 |
||
|
9
|
9
903-87220-16-00 Collar, Wheel |
903-87220-16-00 |
from US $12.62 |
||
