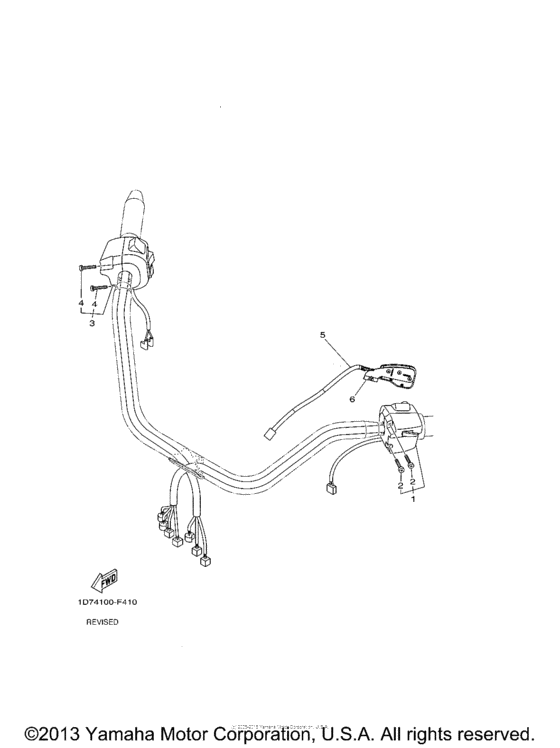

Handle switch & lever Diagram Yamaha XV1900 Stratoliner Deluxe
- Year
- 2011
- Model code
- 2C5G
- Sales region
- USA
- Базовая модель
- XV19CTFAB
- Engine Capacity
- 1900
- Model
- XV1900CT (Stratoliner Deluxe)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1D7-83972-21-00 Switch, Handle 4UR FOR SMX |
1D7-83972-21-00 |
from US $288.54 |
||
|
2
|
2
985-80050-25-00
Screw, Pan Head
|
985-80050-25-00 |
— | ||
| replacement | |||||
|
2
|
2
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
3
|
3
1D7-83973-20-00 Switch, Handle 3UR FOR SMX |
1D7-83973-20-00 |
US $317.99 |
||
|
4
|
4
985-80050-25-00
Screw, Pan Head
|
985-80050-25-00 |
— | ||
| replacement | |||||
|
4
|
4
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
5
|
5
2C5-H8168-V0-00 Remocon, 1 |
2C5-H8168-V0-00 |
US $202.64 |
||
|
6
|
6
2C5-F412F-V0-00 Bracket, Set |
2C5-F412F-V0-00 |
US $29.72 |
||
