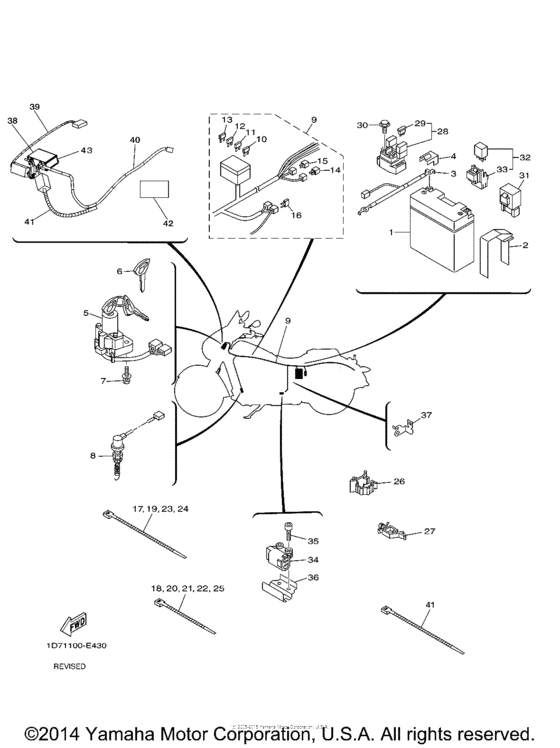

Electrical (2) Diagram Yamaha XV1900 Stratoliner Deluxe
- Year
- 2012
- Model code
- 2C5T
- Sales region
- USA
- Базовая модель
- XV19CTFBCS
- Engine Capacity
- 1900
- Model
- XV1900CT (Stratoliner Deluxe)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EA-82100-11-00
Gt14B4 Gs Battery -
|
5EA-82100-11-00 |
— | ||
| replacements | |||||
|
1
|
1
GT1-4B400-00-00
GS Battery
|
GT1-4B400-00-00 |
— | ||
|
1
|
1
YT1-4BBS0-00-00
Bat Yt14B-Bs (Pt14B-4) Yu
|
YT1-4BBS0-00-00 |
— | ||
|
2
|
2
4AS-82131-01-00 Band, Battery |
4AS-82131-01-00 |
from US $13.18 |
||
|
3
|
3
1D7-82116-00-00 Wire, Minus Lead |
1D7-82116-00-00 |
from US $14.73 |
||
|
4
|
4
1D7-82119-00-00 Cover, Lead Wire |
1D7-82119-00-00 |
from US $2.35 |
||
|
5
|
5
1D7-82501-10-00 Main Switch Steering Lock |
1D7-82501-10-00 |
US $335.27 |
||
|
6
|
6
5PX-82511-09-00 Blank KeyAP |
5PX-82511-09-00 |
from US $38.96 |
||
|
7
|
7
90109-08195-00 Bolt |
90109-08195-00 |
from US $1.81 |
||
| replacement | |||||
|
7
|
7
901-09081-96-00 Bolt |
901-09081-96-00 |
from US $2.08 |
||
|
8
|
8
1D7-82530-00-00 Stop Switch Assy |
1D7-82530-00-00 |
from US $34.29 |
||
|
9
|
9
1D7-82590-40-00 Wire Harness Assy |
1D7-82590-40-00 |
US $803.30 |
||
|
10
|
10
5JJ-82151-70-00 Fuse (25A-Bl)25A-BL |
5JJ-82151-70-00 |
from US $2.83 |
||
|
11
|
11
5JJ-82151-30-00
Fuse (10A-Bl)
10A |
5JJ-82151-30-00 |
— | ||
| replacement | |||||
|
11
|
11
67F-82151-40-00 Fuse (10A)10A |
67F-82151-40-00 |
from US $1.90 |
||
|
12
|
12
5JJ-82151-20-00 Fuse (20A-Bl)20A-BL |
5JJ-82151-20-00 |
from US $3.74 |
||
|
13
|
13
5JJ-H554E-V0-00
Fuse (5A-Bl)
5A-BL |
5JJ-H554E-V0-00 |
— | ||
|
14
|
14
3XV-81980-00-00 Diode Assy |
3XV-81980-00-00 |
from US $15.02 |
||
|
15
|
15
3WP-81980-00-00 Diode Assy |
3WP-81980-00-00 |
from US $16.15 |
||
|
16
|
16
5JW-82151-10-00 Fuse (50A)50A |
5JW-82151-10-00 |
from US $10.96 |
||
|
17
|
17
3MA-82591-00-00 Band |
3MA-82591-00-00 |
from US $2.69 |
||
|
18
|
18
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
19
|
19
3MA-82591-00-00 Band |
3MA-82591-00-00 |
from US $2.69 |
||
|
20
|
20
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
21
|
21
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
22
|
22
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
23
|
23
3MA-82591-00-00 Band |
3MA-82591-00-00 |
from US $2.69 |
||
|
24
|
24
3MA-82591-00-00 Band |
3MA-82591-00-00 |
from US $2.69 |
||
|
25
|
25
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
26
|
26
90464-20002-00 Clamp |
90464-20002-00 |
from US $4.30 |
||
|
27
|
27
90464-16021-00 Clamp |
90464-16021-00 |
from US $1.39 |
||
|
28
|
28
5JW-81940-02-00 Starter Relay Assy (Rc19-032) |
5JW-81940-02-00 |
from US $67.66 |
||
|
29
|
29
36Y-82151-00-00 Fuse (15A-Blue)15A-BLUE |
36Y-82151-00-00 |
from US $2.86 |
||
|
30
|
30
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.52 |
||
|
31
|
31
5VK-81950-30-00
Relay Assy (5Vk-30)
5VK-30 |
5VK-81950-30-00 |
— | ||
| replacements | |||||
|
31
|
31
5VK-81950-31-00 RELAY ASSY5VK-30 |
5VK-81950-31-00 |
from US $69.86 |
||
|
31
|
31
5VK-81950-33-00 RELAY ASSY5VK-30 |
5VK-81950-33-00 |
from US $63.31 |
||
|
32
|
32
5EA-81950-20-00 Relay Assy (5Ea-02)5EA-02 |
5EA-81950-20-00 |
from US $26.63 |
||
|
33
|
33
5EA-81952-00-00 Holder, Relay |
5EA-81952-00-00 |
from US $4.86 |
||
|
34
|
34
5PS-82576-01-00
Sensor, Lean Angle
|
5PS-82576-01-00 |
— | ||
| replacement | |||||
|
34
|
34
5PS-82576-02-00 Sensor, Lean Angle |
5PS-82576-02-00 |
from US $93.26 |
||
|
35
|
35
90110-04003-00 Bolt |
90110-04003-00 |
from US $1.42 |
||
| replacement | |||||
|
35
|
35
91312-04025-00 Bolt |
91312-04025-00 |
from US $1.42 |
||
|
36
|
36
1D7-82388-00-00 Plate |
1D7-82388-00-00 |
from US $7.23 |
||
|
37
|
37
1D7-82581-00-00 Stay, Cord Clamp |
1D7-82581-00-00 |
from US $5.24 |
||
|
38
|
38
2C5-H8132-V0-00 B-Box, Amp |
2C5-H8132-V0-00 |
US $384.07 |
||
|
39
|
39
2C5-H8146-V0-00 I-Pod Cable |
2C5-H8146-V0-00 |
US $214.25 |
||
|
40
|
40
2C5-H2105-V0-00 Harness, Wire |
2C5-H2105-V0-00 |
US $98.03 |
||
|
41
|
41
2C5-H2130-V0-00 BandOF 12 BANDS |
2C5-H2130-V0-00 |
US $31.43 |
||
|
42
|
42
2C5-H2178-V0-00 Label, Fuse Box |
2C5-H2178-V0-00 |
US $7.74 |
||
|
43
|
43
2C5-H8132-T0-00 B-Box, Amp |
2C5-H8132-T0-00 |
US $440.78 |
||
