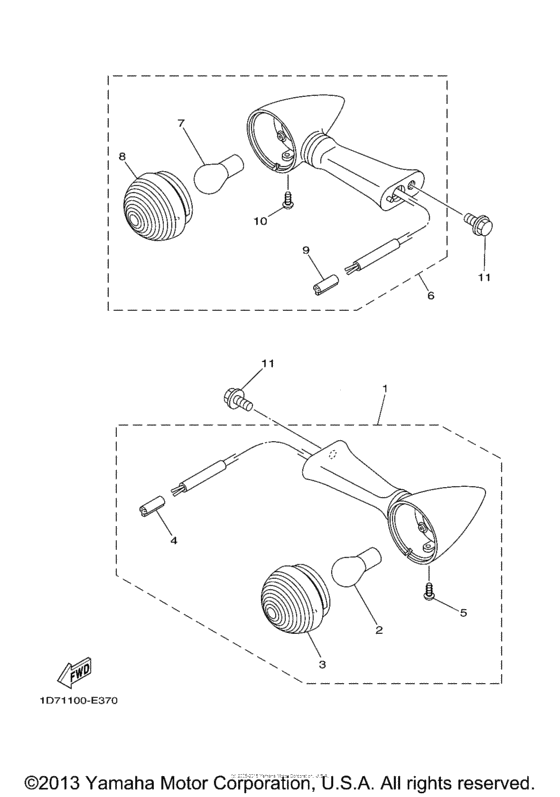

Flasher light Diagram Yamaha XV1900 Roadliner
- Year
- 2007
- Model code
- 4D45
- Sales region
- USA
- Базовая модель
- XV19W
- Engine Capacity
- 1900
- Model
- XV1900A (Roadliner)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1D7-83310-00-00 Front Flasher Light Assy 1 |
1D7-83310-00-00 |
from US $334.46 |
||
|
2
|
2
5VN-83311-00-00 Bulb, Flasher (12V-23/8W)12V-23/8W |
5VN-83311-00-00 |
from US $11.56 |
||
|
3
|
3
1D7-83312-00-00 Lens, Flasher |
1D7-83312-00-00 |
from US $37.03 |
||
|
4
|
4
9E477-03746-00 Connector |
9E477-03746-00 |
US $6.55 |
||
|
5
|
5
97780-40010-00 Screw, Tapping |
97780-40010-00 |
from US $1.70 |
||
|
6
|
6
1D7-83320-00-00 Front Flasher Light Assy 2 |
1D7-83320-00-00 |
from US $334.46 |
||
|
7
|
7
5VN-83311-00-00 Bulb, Flasher (12V-23/8W)12V-23/8W |
5VN-83311-00-00 |
from US $11.56 |
||
|
8
|
8
1D7-83312-10-00 Lens, Flasher |
1D7-83312-10-00 |
from US $37.03 |
||
|
9
|
9
9E471-03746-00 Connector |
9E471-03746-00 |
US $6.39 |
||
|
10
|
10
97780-40010-00 Screw, Tapping |
97780-40010-00 |
from US $1.70 |
||
|
11
|
11
90105-08126-00 Bolt, Flange |
90105-08126-00 |
from US $1.66 |
||
| replacement | |||||
|
11
|
11
95022-08012-00 Bolt, Flange |
95022-08012-00 |
from US $1.66 |
||
