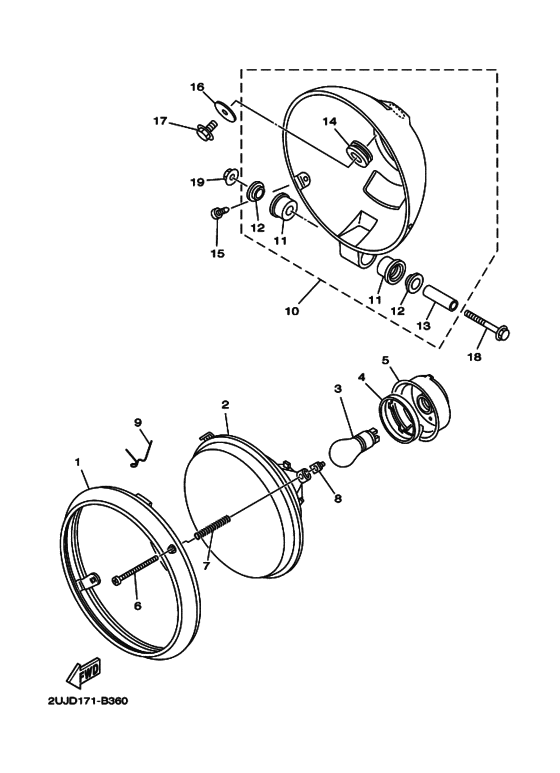

Headlight Diagram Yamaha XV250 Virago
- Year
- 2003
- Colour
- Black 2 (BL2; 004B)
- Model code
- 2UJD
- Sales region
- Europe (010)
- Базовая модель
- XV250 XV250R
- Engine Capacity
- 250
- Color Variant
- A
- Model
- Virago
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42X-84315-01-00 Rim, Headlight |
42X-84315-01-00 |
from US $69.49 |
||
|
2
|
2
2GV-84320-A0-00 Lens Assy |
2GV-84320-A0-00 |
US $170.62 |
||
| replacement | |||||
|
2
|
2
2GV-84321-A0-00 Lens Assembly |
2GV-84321-A0-00 |
US $170.62 |
||
|
3
|
3
11H-84314-00-00 Bulb, Headlight12V-65/60W |
11H-84314-00-00 |
from US $24.94 |
||
| replacement | |||||
|
3
|
3
46B-84314-00-00 Bulb, Headlight12V-65/60W |
46B-84314-00-00 |
from US $24.82 |
||
|
4
|
4
2F9-84375-00-00 Setting Plate, Bulb |
2F9-84375-00-00 |
from US $20.25 |
||
|
5
|
5
2F9-84397-01-00 Cover, Socket Ttr250 94 Adr |
2F9-84397-01-00 |
from US $17.48 |
||
|
6
|
6
341-84331-60-00
Screw, Adjusting
|
341-84331-60-00 |
— | ||
| replacement | |||||
|
6
|
6
901-57040-01-00 Screw, Rim Adjusting |
901-57040-01-00 |
from US $6.23 |
||
|
7
|
7
1A0-84332-60-00 Spring, Screw |
1A0-84332-60-00 |
from US $10.81 |
||
| replacement | |||||
|
7
|
7
447-84332-60-00 Spring, Screw |
447-84332-60-00 |
from US $10.75 |
||
|
8
|
8
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.47 |
||
|
9
|
9
42X-84124-60-00 Spring, Set |
42X-84124-60-00 |
from US $3.05 |
||
|
10
|
10
2UJ-84330-00-00 Body Assy |
2UJ-84330-00-00 |
from US $147.83 |
||
| replacement | |||||
|
10
|
10
42X-84330-01-00 Body Assy |
42X-84330-01-00 |
from US $147.83 |
||
|
11
|
11
42X-84345-00-00 Damper, Headlight |
42X-84345-00-00 |
from US $3.68 |
||
|
12
|
12
1FK-84338-00-00 Collar, Body Fitting |
1FK-84338-00-00 |
from US $1.70 |
||
|
13
|
13
2UJ-84338-00-00 Collar, Body Ftng |
2UJ-84338-00-00 |
from US $3.26 |
||
|
14
|
14
42X-84366-00-00 Damper, Headlight 1 |
42X-84366-00-00 |
from US $8.78 |
||
|
15
|
15
90157-05084-00 Screw, Pan Head |
90157-05084-00 |
from US $2.69 |
||
|
16
|
16
90201-060A3-00 Washer, Plate |
90201-060A3-00 |
from US $1.98 |
||
| replacement | |||||
|
16
|
16
90201-06086-00 Washer, Plate |
90201-06086-00 |
from US $1.98 |
||
|
17
|
17
958-07060-14-00
Bolt, Flange
|
958-07060-14-00 |
— | ||
| replacement | |||||
|
17
|
17
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.18 |
||
|
18
|
18
95824-06045-00 Bolt, Flange |
95824-06045-00 |
from US $2.13 |
||
| replacement | |||||
|
18
|
18
95814-06045-00 Bolt, Flange |
95814-06045-00 |
from US $2.13 |
||
|
19
|
19
957-04065-00-00
Nut, Flange(3Bm)
|
957-04065-00-00 |
— | ||
| replacement | |||||
|
19
|
19
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
