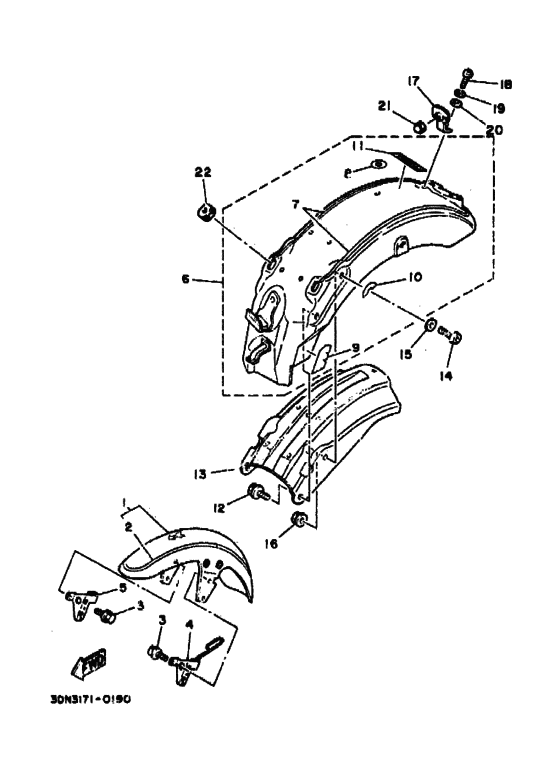

Fender Diagram Yamaha XV250 Virago
- Year
- 1990
- Colour
- Glorious Maxi Brown (GMB; 00JN)
- Model code
- 3DN3
- Sales region
- Europe (010)
- Базовая модель
- XV250 XV250A
- Engine Capacity
- 250
- Color Variant
- A
- Model
- Virago
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2UJ-Y2151-00-0X
Front Fender Comp
BROWN/GRAY |
2UJ-Y2151-00-0X |
— | ||
|
2
|
2
3DM-21570-00-00
Graphic Set, Front Fender
|
3DM-21570-00-00 |
— | ||
|
3
|
3
950-23080-12-00
Bolt, Flange (Small Head)
|
950-23080-12-00 |
— | ||
| replacement | |||||
|
3
|
3
95024-08012-00 Bolt, Flange (Small Head) |
95024-08012-00 |
from US $1.42 |
||
|
4
|
4
2GV-21597-00-00
Holder,wire 1
|
2GV-21597-00-00 |
— | ||
|
5
|
5
2GV-21598-00-00 Holder, Wire 2 |
2GV-21598-00-00 |
US $27.40 |
||
|
6
|
6
2UJ-Y2161-90-0X
Rear Fender Comp
BROWN/GRAY |
2UJ-Y2161-90-0X |
— | ||
|
7
|
7
3DM-2165A-00-00
Graphic Set, Rear Fender
|
3DM-2165A-00-00 |
— | ||
|
8
|
8
2UJ-21735-00-00 Seal 2 |
2UJ-21735-00-00 |
from US $1.53 |
||
|
9
|
9
2UJ-2173M-00-00 Seal 3 |
2UJ-2173M-00-00 |
from US $2.69 |
||
| replacements | |||||
|
9
|
9
2UJ-2173M-01-00 Seal 3 |
2UJ-2173M-01-00 |
from US $2.69 |
||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
3DM-2173N-00-00 Seal 4 |
3DM-2173N-00-00 |
from US $1.84 |
||
|
11
|
11
99235-00020-00 Emblem, Yamaha |
99235-00020-00 |
from US $9.77 |
||
| replacement | |||||
|
11
|
11
99245-00080-00 Emblem, Yamaha |
99245-00080-00 |
from US $10.06 |
||
|
12
|
12
95812-10020-00 Bolt, Flange |
95812-10020-00 |
from US $1.16 |
||
| replacement | |||||
|
12
|
12
958-17100-20-00 Bolt, Flange |
958-17100-20-00 |
from US $1.18 |
||
|
13
|
13
2UJ-21670-00-00 Reinf. Comp |
2UJ-21670-00-00 |
US $47.80 |
||
| replacement | |||||
|
13
|
13
2UJ-21670-30-00 Reinf. Comp |
2UJ-21670-30-00 |
US $47.80 |
||
|
14
|
14
91316-10035-00 Bolt |
91316-10035-00 |
from US $2.69 |
||
| replacement | |||||
|
14
|
14
91317-10035-00 Bolt |
91317-10035-00 |
from US $2.69 |
||
|
15
|
15
92906-10600-00 Washer, Plate |
92906-10600-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
92907-10600-00 Washer, Plate |
92907-10600-00 |
from US $1.18 |
||
|
16
|
16
957-02105-00-00
Nut, Flange
|
957-02105-00-00 |
— | ||
| replacements | |||||
|
16
|
16
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
16
|
16
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
17
|
17
2UJ-21641-00-00 Bracket, Reflector |
2UJ-21641-00-00 |
from US $8.93 |
||
|
18
|
18
98501-05010-00 Screw, Pan Head |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
18
|
18
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.18 |
||
|
19
|
19
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
20
|
20
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
20
|
20
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
20
|
20
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
21
|
21
95306-05800-00 Nut |
95306-05800-00 |
from US $1.56 |
||
| replacement | |||||
|
21
|
21
95307-05800-00 Nut |
95307-05800-00 |
from US $1.56 |
||
|
22
|
22
90480-01502-00 Grommet |
90480-01502-00 |
from US $1.70 |
||
| replacement | |||||
|
22
|
22
90480-15061-00 Grommet (438) |
90480-15061-00 |
from US $1.70 |
||
