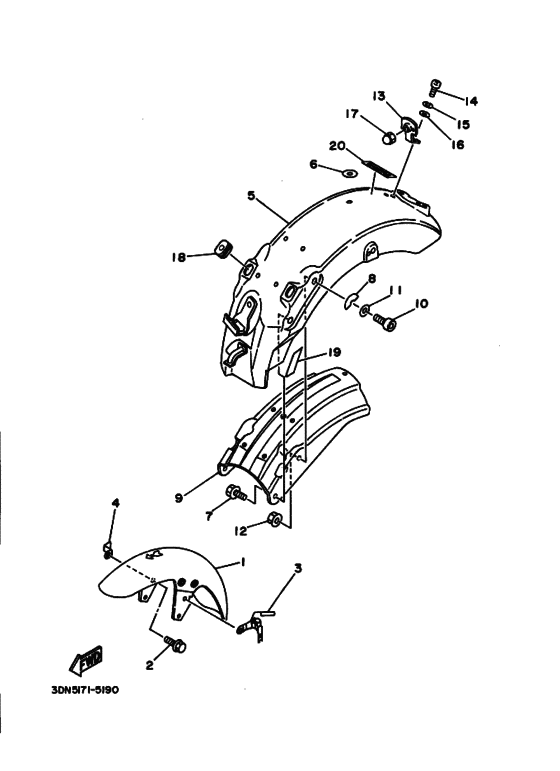

Fender Diagram Yamaha XV250 Virago
- Year
- 1995
- Colour
- Red-E Sparkle (RES; 00MV)
- Model code
- 3DN5
- Sales region
- Europe (010)
- Базовая модель
- XV250S XV250SG
- Engine Capacity
- 250
- Color Variant
- B
- Model
- Virago
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2UJ-21510-00-MV
Front Fender Comp
UR RED-E SPARKLE |
2UJ-21510-00-MV |
— | ||
|
2
|
2
95024-08012-00 Bolt, Flange (Small Head) |
95024-08012-00 |
from US $1.42 |
||
|
3
|
3
3DN-21597-00-00 Holder,wire 1 |
3DN-21597-00-00 |
US $68.35 |
||
|
4
|
4
3DN-21586-00-00 Bracket |
3DN-21586-00-00 |
from US $142.30 |
||
|
5
|
5
2UJ-21610-00-MV
Rear Fender Comp
UR RED-E SPARKLE |
2UJ-21610-00-MV |
— | ||
|
6
|
6
2UJ-21735-00-00 Seal 2 |
2UJ-21735-00-00 |
from US $1.53 |
||
|
7
|
7
958-17100-20-00 Bolt, Flange |
958-17100-20-00 |
from US $1.18 |
||
|
8
|
8
3DM-2173N-00-00 Seal 4 |
3DM-2173N-00-00 |
from US $1.84 |
||
|
9
|
9
2UJ-21670-00-00 Reinf. Comp |
2UJ-21670-00-00 |
US $47.80 |
||
| replacement | |||||
|
9
|
9
2UJ-21670-30-00 Reinf. Comp |
2UJ-21670-30-00 |
US $47.80 |
||
|
10
|
10
91317-10035-00 Bolt |
91317-10035-00 |
from US $2.69 |
||
|
11
|
11
92907-10600-00 Washer, Plate |
92907-10600-00 |
from US $1.18 |
||
|
12
|
12
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.39 |
||
| replacement | |||||
|
12
|
12
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
13
|
13
2UJ-21641-00-00 Bracket, Reflector |
2UJ-21641-00-00 |
from US $8.93 |
||
|
14
|
14
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
14
|
14
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
15
|
15
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
16
|
16
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
17
|
17
95307-05800-00 Nut |
95307-05800-00 |
from US $1.56 |
||
|
18
|
18
90480-01502-00 Grommet |
90480-01502-00 |
from US $1.70 |
||
| replacement | |||||
|
18
|
18
90480-15061-00 Grommet (438) |
90480-15061-00 |
from US $1.70 |
||
|
19
|
19
2UJ-2173M-01-00 Seal 3 |
2UJ-2173M-01-00 |
from US $2.69 |
||
|
20
|
20
99235-00080-00 Emblem, YamahaUR FOR RES |
99235-00080-00 |
US $10.06 |
||
| replacement | |||||
|
20
|
20
99245-00080-00 Emblem, YamahaUR FOR RES |
99245-00080-00 |
from US $10.06 |
||
