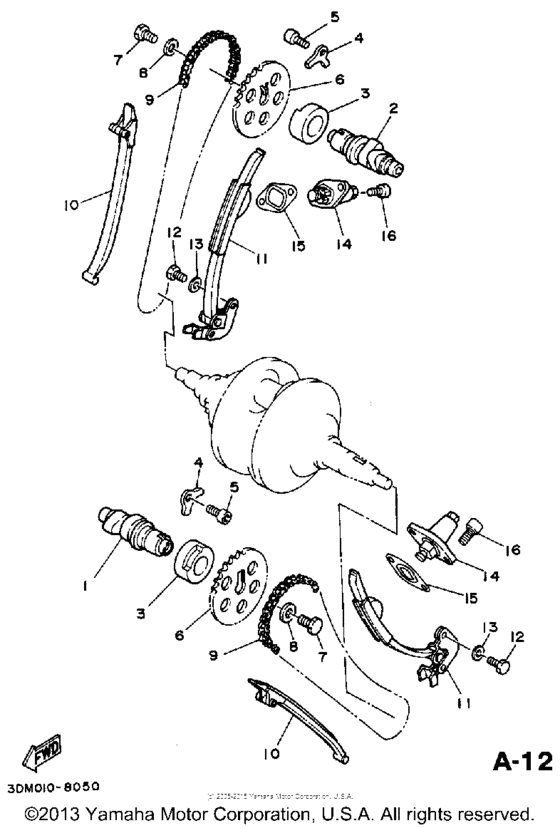

Camshaft & chain Diagram Yamaha XV250 Route 66
- Year
- 1989
- Sales region
- USA
- Базовая модель
- XV250WC
- Engine Capacity
- 250
- Model
- Route 66
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2UJ-12171-00-00 Camshaft 1 |
2UJ-12171-00-00 |
from US $156.12 |
||
|
2
|
2
2UJ-12181-00-00 Camshaft 2 |
2UJ-12181-00-00 |
from US $156.12 |
||
|
3
|
3
90381-22070-00 Bush, Solid |
90381-22070-00 |
from US $13 |
||
|
4
|
4
2UJ-1111F-00-00 Plate |
2UJ-1111F-00-00 |
from US $2.13 |
||
|
5
|
5
91312-06012-00 Bolt, Hext. Socket Head |
91312-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
|
6
|
6
2UJ-12176-00-00 Sprocket, Cam Chain |
2UJ-12176-00-00 |
from US $24.37 |
||
|
7
|
7
90101-08590-00 Bolt |
90101-08590-00 |
from US $1.56 |
||
|
8
|
8
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.70 |
||
| replacement | |||||
|
8
|
8
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
|
9
|
9
94580-25110-00 Chain (Did25-110Le) |
94580-25110-00 |
from US $13.46 |
||
|
10
|
10
2UJ-12231-00-00 Guide, Stopper 1 |
2UJ-12231-00-00 |
from US $19.84 |
||
|
11
|
11
2UJ-12241-00-00 Guide, Stopper 2 |
2UJ-12241-00-00 |
from US $33.58 |
||
|
12
|
12
97021-06012-00 Bolt |
97021-06012-00 |
from US $1.21 |
||
| replacements | |||||
|
12
|
12
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
12
|
12
970-27060-12-00
Bolt, Hexagon
|
970-27060-12-00 |
— | ||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
2UJ-12210-00-00 Tensioner Assy, Cam Chain |
2UJ-12210-00-00 |
from US $61.58 |
||
| replacement | |||||
|
14
|
14
4GL-12210-00-00 Tensioner Assy, Cam Chain |
4GL-12210-00-00 |
from US $99.95 |
||
|
15
|
15
3DM-12213-00-00 Gasket, Tensioner Case |
3DM-12213-00-00 |
from US $4.96 |
||
| replacement | |||||
|
15
|
15
4RF-12213-00-00 Gasket, Tensioner Case |
4RF-12213-00-00 |
from US $2.70 |
||
|
16
|
16
91311-06016-00 Bolt, Hexagon Socket Head |
91311-06016-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
91314-06016-00 Bolt, Hexagon Socket Head |
91314-06016-00 |
from US $1.42 |
||
