Carburetor Diagram Yamaha XV250 Route 66
- Year
- 1989
- Sales region
- USA
- Базовая модель
- XV250WC
- Engine Capacity
- 250
- Model
- Route 66
Difficulties in parts search?
Difficulties in parts search?

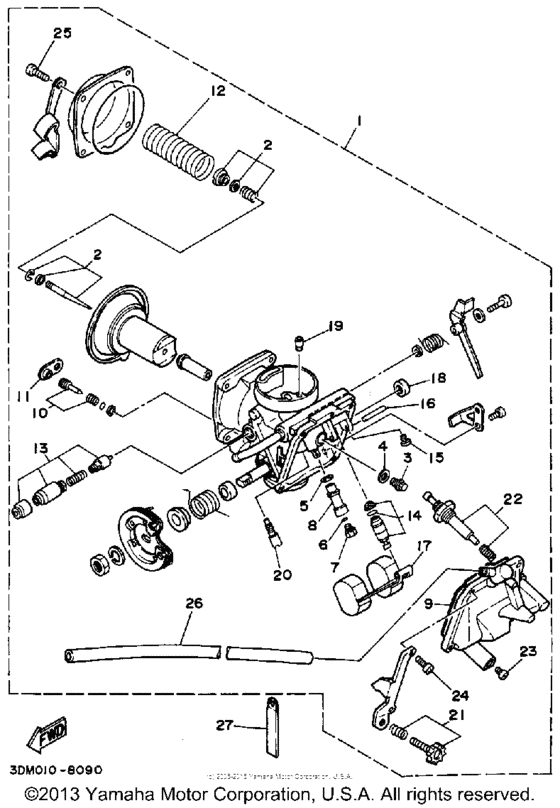

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2UJ-14900-01-00 Carburetor Assy |
2UJ-14900-01-00 |
from US $563.64 |
||
|
1
|
1
3BG-14900-00-00 Carburetor AssemblyUR |
3BG-14900-00-00 |
from US $331.02 |
||
|
2
|
2
3BG-1490J-00-00 Needle Set |
3BG-1490J-00-00 |
US $32.87 |
||
|
3
|
3
1HX-14565-00-00 Screw |
1HX-14565-00-00 |
from US $8.36 |
||
|
4
|
4
137-14153-00-00 Washer,main Jet |
137-14153-00-00 |
from US $2.98 |
||
|
5
|
5
1AE-14237-00-00 Gasket |
1AE-14237-00-00 |
from US $2.13 |
||
|
6
|
6
1AE-14227-00-00 O-Ring |
1AE-14227-00-00 |
from US $4.96 |
||
|
7
|
7
620-14231-22-A0 Jet, Main (110)110 |
620-14231-22-A0 |
from US $14.03 |
||
|
8
|
8
1AE-14261-00-00 Holder |
1AE-14261-00-00 |
from US $7.42 |
||
|
9
|
9
1HX-14147-00-00 O-Ring |
1HX-14147-00-00 |
from US $7.42 |
||
|
10
|
10
12R-14105-00-00 Pilot Screw Set |
12R-14105-00-00 |
from US $19.13 |
||
|
11
|
11
3F9-14118-00-00 Cap |
3F9-14118-00-00 |
from US $5.10 |
||
|
12
|
12
1HX-14933-00-00 Spring, Diaphragm |
1HX-14933-00-00 |
from US $13.32 |
||
|
13
|
13
3DM-1410A-01-00 Starter Set |
3DM-1410A-01-00 |
from US $51.81 |
||
| replacement | |||||
|
13
|
13
3DM-1410A-10-00 Starter Set |
3DM-1410A-10-00 |
from US $51.81 |
||
|
14
|
14
3CF-14107-10-00 Needle Valve Set |
3CF-14107-10-00 |
from US $40.55 |
||
|
15
|
15
1FN-14565-00-00 Screw |
1FN-14565-00-00 |
from US $1.36 |
||
|
16
|
16
353-14186-00-00 Pin, Float |
353-14186-00-00 |
from US $4.39 |
||
|
17
|
17
1HX-14985-00-00 Float |
1HX-14985-00-00 |
from US $39.38 |
||
|
18
|
18
256-14997-00-00 Seal |
256-14997-00-00 |
from US $4.39 |
||
|
19
|
19
1HX-14231-31-00 Jet, Main |
1HX-14231-31-00 |
from US $8 |
||
|
20
|
20
22F-14142-17-00 Jet, Pilot (#17.5) |
22F-14142-17-00 |
from US $10.73 |
||
|
21
|
21
1HX-14103-00-00 Throttle Screw Set |
1HX-14103-00-00 |
from US $14.17 |
||
|
22
|
22
3DM-14504-00-00 Rod Set |
3DM-14504-00-00 |
from US $27.34 |
||
| replacement | |||||
|
22
|
22
3DM-14504-01-00 Rod Set |
3DM-14504-01-00 |
from US $27.34 |
||
|
23
|
23
12R-14191-00-00 Plug, Drain |
12R-14191-00-00 |
from US $8.64 |
||
|
24
|
24
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
24
|
24
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
25
|
25
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
26
|
26
2LH-14197-00-00 Pipe |
2LH-14197-00-00 |
from US $22.52 |
||
| replacement | |||||
|
26
|
26
50H-14987-00-00 Hose |
50H-14987-00-00 |
from US $40.34 |
||
|
27
|
27
90461-06087-00 Clamp |
90461-06087-00 |
US $4.50 |
||
| replacement | |||||
|
27
|
27
3XV-14243-00-00 Clamp |
3XV-14243-00-00 |
US $4.50 |
||
