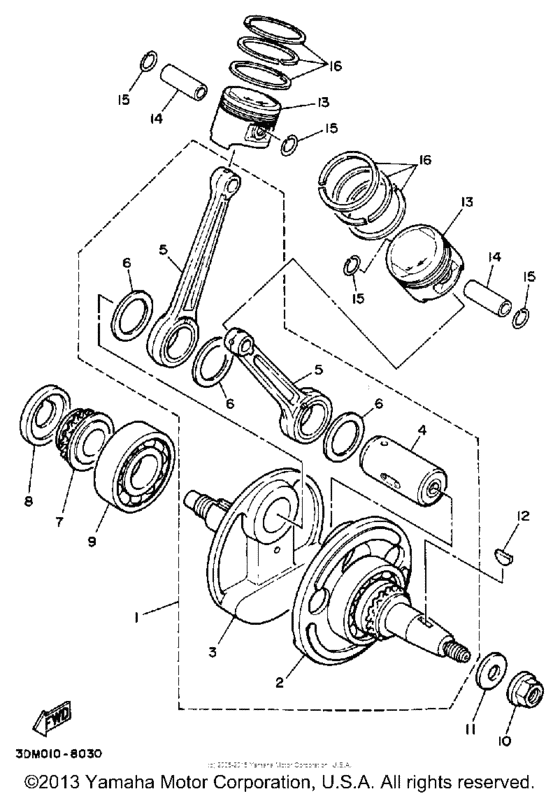

Crankshaft & Piston Diagram Yamaha XV250 Route 66
- Year
- 1989
- Sales region
- USA
- Базовая модель
- XV250WC
- Engine Capacity
- 250
- Model
- Route 66
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2UJ-11400-00-00 Crankshaft Assy |
2UJ-11400-00-00 |
from US $696.91 |
||
|
2
|
2
2UJ-W1141-00-00 Crank 1 |
2UJ-W1141-00-00 |
from US $226.58 |
||
| replacement | |||||
|
2
|
2
2UJ-11401-09-00 Crank Sub Assy 1 |
2UJ-11401-09-00 |
from US $226.58 |
||
|
3
|
3
2UJ-11422-00-00 Crank 2 |
2UJ-11422-00-00 |
from US $163.03 |
||
|
4
|
4
2UJ-11681-00-00 Pin, Crank 1 |
2UJ-11681-00-00 |
from US $43.52 |
||
|
5
|
5
2UJ-11651-00-00 Rod, Connecting |
2UJ-11651-00-00 |
from US $87.04 |
||
|
6
|
6
90209-31300-00 Washer |
90209-31300-00 |
from US $1.80 |
||
|
7
|
7
2UJ-1154A-00-00 Sprocket, Cam Chain |
2UJ-1154A-00-00 |
from US $35.78 |
||
|
8
|
8
2UJ-11478-00-00 Collar |
2UJ-11478-00-00 |
from US $6.52 |
||
|
9
|
9
93306-30615-00 Bearing |
93306-30615-00 |
from US $29.30 |
||
|
10
|
10
90179-12421-00 Nut |
90179-12421-00 |
from US $4.34 |
||
| replacement | |||||
|
10
|
10
90179-12657-00 Nut |
90179-12657-00 |
from US $6.52 |
||
|
11
|
11
90201-12191-00 Washer, Plate |
90201-12191-00 |
from US $5.81 |
||
|
12
|
12
902-80160-53-00
Key, Woodruff(3Tb)
|
902-80160-53-00 |
— | ||
| replacement | |||||
|
12
|
12
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.35 |
||
|
13
|
13
2UJ-11638-00-00 Piston (1.00Mm O/s)1.00MM O/S ALT. PART |
2UJ-11638-00-00 |
US $123.44 |
||
|
13
|
13
2UJ-11631-00-A0 Piston (Std) |
2UJ-11631-00-A0 |
from US $55.68 |
||
|
13
|
13
2UJ-11636-00-00 Piston (0.50Mm O/s)0.50MM O/S ALT. PART |
2UJ-11636-00-00 |
from US $52.86 |
||
|
14
|
14
22K-11633-01-00 Pin, Piston |
22K-11633-01-00 |
from US $10.91 |
||
|
15
|
15
93450-14088-00 Circlip |
93450-14088-00 |
from US $1.70 |
||
|
16
|
16
50M-11610-40-00 Piston Ring Set (1.00Mm O/S)1.00MM O/S ALT. PART |
50M-11610-40-00 |
from US $45.94 |
||
|
16
|
16
50M-11610-20-00
Piston Ring Set (0.50Mm O/S)
0.50MM O/S ALT. PART |
50M-11610-20-00 |
— | ||
|
16
|
16
50M-11610-00-00 Piston Ring Set |
50M-11610-00-00 |
from US $23.58 |
||
