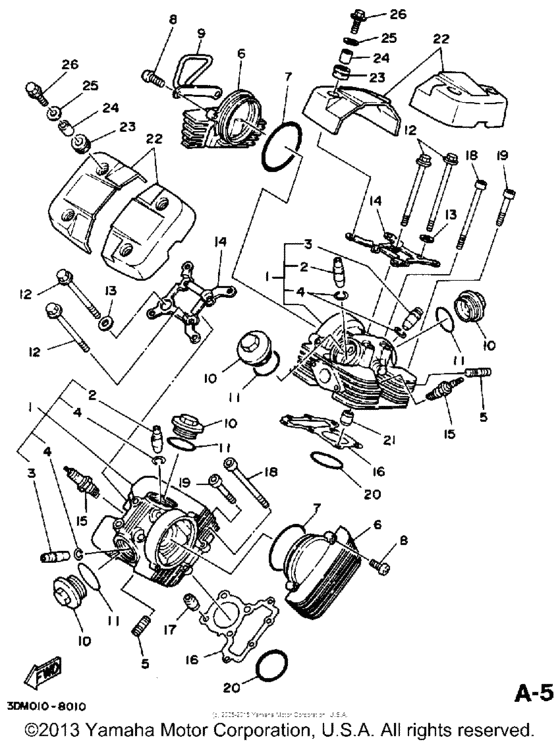

Cylinder head (Non calinia) Diagram Yamaha XV250 Route 66
- Year
- 1989
- Sales region
- USA
- Базовая модель
- XV250WC
- Engine Capacity
- 250
- Model
- Route 66
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2UJ-11102-00-00 Cylinder Head Assy |
2UJ-11102-00-00 |
from US $555.15 |
||
| replacement | |||||
|
1
|
1
2UJ-11102-01-00 Cylinder Head Assy |
2UJ-11102-01-00 |
from US $468.92 |
||
|
2
|
2
2UJ-11133-10-00 Guide, Valve 1 |
2UJ-11133-10-00 |
from US $28.76 |
||
|
3
|
3
22F-11134-10-00 Guide, Valve 2 |
22F-11134-10-00 |
from US $36.36 |
||
|
4
|
4
93440-10109-00 Circlip |
93440-10109-00 |
from US $1.36 |
||
|
5
|
5
95611-06630-00 Bolt, Stud |
95611-06630-00 |
from US $2.69 |
||
| replacement | |||||
|
5
|
5
90116-06466-00 Bolt, Stud |
90116-06466-00 |
from US $2.69 |
||
|
6
|
6
2UJ-11185-00-00 Cover, Cylinder Head Side 3 |
2UJ-11185-00-00 |
from US $61.07 |
||
| replacement | |||||
|
6
|
6
2UJ-11185-01-00 Cover, Cylinder Head Side 1 |
2UJ-11185-01-00 |
from US $61.07 |
||
|
7
|
7
932-10785-44-00 O-Ring |
932-10785-44-00 |
from US $5.74 |
||
|
8
|
8
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
8
|
8
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
9
|
9
2UJ-11152-00-00 Bracket, Cylinder Head Cover |
2UJ-11152-00-00 |
from US $23.38 |
||
|
10
|
10
22F-11186-00-00 Cover, Cylinder Head Side 2 |
22F-11186-00-00 |
from US $12.89 |
||
| replacement | |||||
|
10
|
10
22F-11186-10-00 Cover, Cylinder Head Side 2 |
22F-11186-10-00 |
from US $10.44 |
||
|
11
|
11
93210-44704-00 O-Ring |
93210-44704-00 |
from US $1.42 |
||
|
12
|
12
90105-08324-00 Bolt, Washer Based |
90105-08324-00 |
from US $5.72 |
||
| replacement | |||||
|
12
|
12
90105-08181-00 Bolt, Flange |
90105-08181-00 |
from US $6.06 |
||
|
13
|
13
90201-080L7-00 Washer, Plate |
90201-080L7-00 |
from US $2.69 |
||
|
14
|
14
2UJ-11142-00-00 Bracket, Cylinder Head Cover 2 |
2UJ-11142-00-00 |
from US $20.26 |
||
| replacement | |||||
|
14
|
14
2UJ-11142-01-00 Bracket, Cylinder Head Cover 2 |
2UJ-11142-01-00 |
from US $20.26 |
||
|
15
|
15
NGK-C6HSA-00-00 C6Hsa Ngk Splug 1010 |
NGK-C6HSA-00-00 |
US $4.23 |
||
| replacement | |||||
|
15
|
15
C6H-SA000-00-00 element10 |
C6H-SA000-00-00 |
US $21.88 |
||
|
16
|
16
2UJ-11181-01-00 Gasket, Cylinder Head 1 |
2UJ-11181-01-00 |
from US $24.51 |
||
|
17
|
17
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
| replacement | |||||
|
17
|
17
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.70 |
||
|
18
|
18
91311-06110-00 Bolt |
91311-06110-00 |
from US $3.54 |
||
| replacement | |||||
|
18
|
18
91317-06110-00 Bolt |
91317-06110-00 |
from US $3.54 |
||
|
19
|
19
913-11060-40-00
Bolt, Hexagon Socket Head
|
913-11060-40-00 |
— | ||
| replacement | |||||
|
19
|
19
91314-06040-00 Bolt, Hexagon Socket Head |
91314-06040-00 |
from US $1.42 |
||
|
20
|
20
93210-53679-00 O-Ring |
93210-53679-00 |
from US $2.55 |
||
|
21
|
21
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
| replacement | |||||
|
21
|
21
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.70 |
||
|
22
|
22
2UJ-11186-00-00 Cover, Cylinder Head Side 2 |
2UJ-11186-00-00 |
US $115.46 |
||
|
23
|
23
90480-13018-00 Grommet |
90480-13018-00 |
from US $1.56 |
||
|
24
|
24
903-87066-M3-00
Collar
|
903-87066-M3-00 |
— | ||
| replacement | |||||
|
24
|
24
903-87060-43-00 Collar |
903-87060-43-00 |
from US $1.70 |
||
|
25
|
25
90201-06697-00 Washer, Plate |
90201-06697-00 |
from US $1.84 |
||
|
26
|
26
95023-06020-00 Bolt, Flg.(Small Head) |
95023-06020-00 |
from US $1.56 |
||
| replacement | |||||
|
26
|
26
95024-06020-00 Bolt, Flange (Small Head) |
95024-06020-00 |
from US $1.36 |
||
