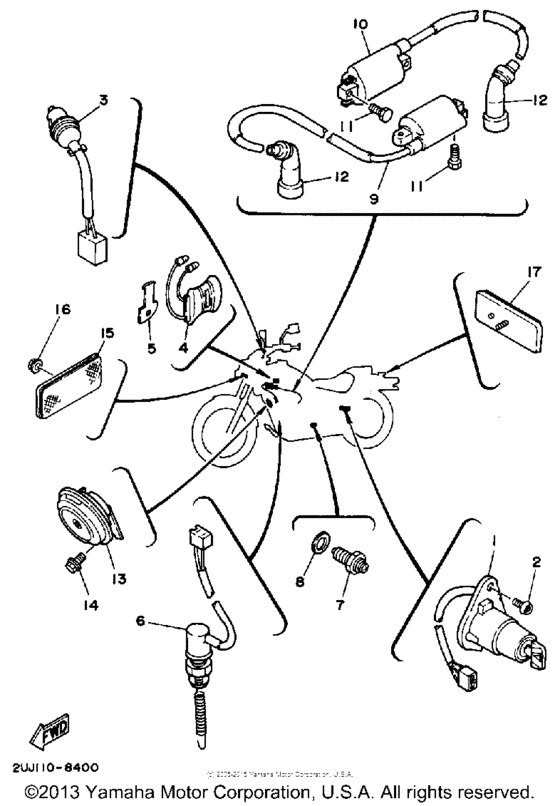

Electrical (2) Diagram Yamaha XV250 Route 66
- Year
- 1989
- Sales region
- USA
- Базовая модель
- XV250WC
- Engine Capacity
- 250
- Model
- Route 66
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2UJ-82510-00-00 Main Switch Assy |
2UJ-82510-00-00 |
from US $93.26 |
||
|
2
|
2
90149-06228-00 Screw |
90149-06228-00 |
from US $1.70 |
||
| replacement | |||||
|
2
|
2
90149-06308-00 Screw(4Hm) |
90149-06308-00 |
from US $1.70 |
||
|
3
|
3
2UJ-83980-00-00 Front Stop Switch Assy |
2UJ-83980-00-00 |
from US $24.79 |
||
|
4
|
4
3DM-82560-00-00 Thermoswitch Assy |
3DM-82560-00-00 |
from US $58.70 |
||
| replacement | |||||
|
4
|
4
3BT-82560-00-00 Thermoswitch Assy |
3BT-82560-00-00 |
from US $56.54 |
||
|
5
|
5
3DM-82571-00-00 Panel, Switch |
3DM-82571-00-00 |
from US $5.81 |
||
|
6
|
6
3XV-82530-01-00
Stop Switch Assy
|
3XV-82530-01-00 |
— | ||
|
7
|
7
2H7-82540-00-00
Neutral Switch Assy
|
2H7-82540-00-00 |
— | ||
| replacements | |||||
|
7
|
7
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
7
|
7
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $23.80 |
||
|
8
|
8
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.28 |
||
|
9
|
9
2UJ-82310-00-00 Ignition Coil Assy |
2UJ-82310-00-00 |
from US $137.47 |
||
| replacements | |||||
|
9
|
9
4DN-82320-00-00
Ignition Coil Assy
|
4DN-82320-00-00 |
— | ||
|
9
|
9
4DN-82320-01-00 IGNITION COIL ASSY |
4DN-82320-01-00 |
from US $82.14 |
||
|
10
|
10
2UJ-82320-00-00 Ignition Coil Assy |
2UJ-82320-00-00 |
from US $153.59 |
||
| replacements | |||||
|
10
|
10
4DN-82320-00-00
Ignition Coil Assy
|
4DN-82320-00-00 |
— | ||
|
10
|
10
4DN-82320-01-00 IGNITION COIL ASSY |
4DN-82320-01-00 |
from US $82.14 |
||
|
11
|
11
97021-05020-00 Bolt(3Al) |
97021-05020-00 |
from US $1.42 |
||
| replacements | |||||
|
11
|
11
90101-05396-00 Bolt (2E9) |
90101-05396-00 |
from US $1.70 |
||
|
11
|
11
970-27050-20-00
Bolt
|
970-27050-20-00 |
— | ||
|
12
|
12
1UY-82370-20-00 Plug Cap Assy |
1UY-82370-20-00 |
from US $19.69 |
||
| replacements | |||||
|
12
|
12
5EL-82370-00-00 Plug Cap Assy |
5EL-82370-00-00 |
from US $24.24 |
||
|
12
|
12
3NS-82370-00-00 Plug Cap Assy |
3NS-82370-00-00 |
from US $19.69 |
||
|
13
|
13
2KR-83371-00-00 Hone |
2KR-83371-00-00 |
from US $36.16 |
||
| replacement | |||||
|
13
|
13
4LR-83371-11-00 Horn |
4LR-83371-11-00 |
from US $51.81 |
||
|
14
|
14
95826-06010-00 Bolt, Flange |
95826-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
15
|
15
11H-85110-01-00 Reflector Assy |
11H-85110-01-00 |
from US $12.12 |
||
|
16
|
16
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
17
|
17
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $10.78 |
||
