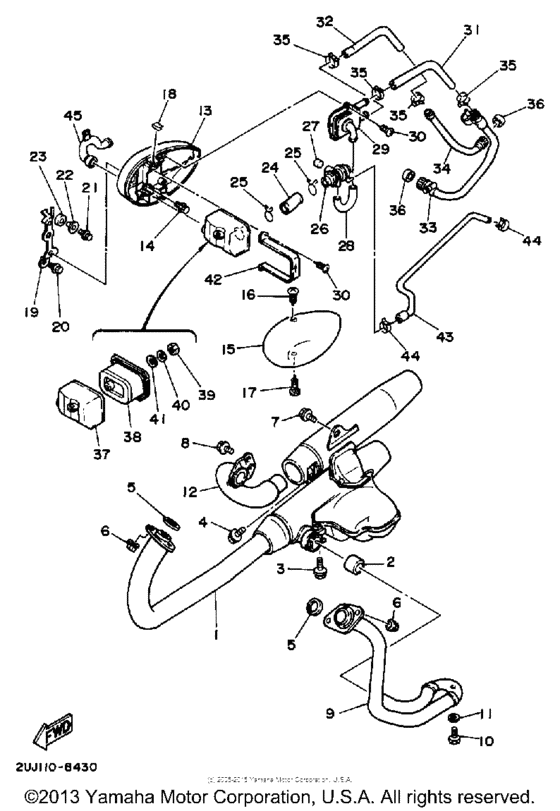

Exhaust (Calinia) Diagram Yamaha XV250 Route 66
- Year
- 1989
- Sales region
- USA
- Базовая модель
- XV250WC
- Engine Capacity
- 250
- Model
- Route 66
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2UJ-14703-00-00 Muffler Comp. 1 |
2UJ-14703-00-00 |
US $1,030.92 |
||
| replacement | |||||
|
1
|
1
2UJ-14703-02-00 Muffler Comp. 1 |
2UJ-14703-02-00 |
from US $1,030.92 |
||
|
2
|
2
36R-14714-01-00 Gasket, Muffler |
36R-14714-01-00 |
from US $14.17 |
||
| replacement | |||||
|
2
|
2
4FU-14714-10-00 Gasket, Muffler |
4FU-14714-10-00 |
from US $11.75 |
||
|
3
|
3
95811-08035-00 Bolt, Flange (95821-08035-00) |
95811-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
3
|
3
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.07 |
||
|
4
|
4
958-11060-25-00
Bolt, Flange
|
958-11060-25-00 |
— | ||
| replacements | |||||
|
4
|
4
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
4
|
4
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
5
|
5
3DM-14613-00-00 Gasket, Exhaust Pipe |
3DM-14613-00-00 |
from US $3.04 |
||
|
6
|
6
901-79064-99-00
Nut
|
901-79064-99-00 |
— | ||
| replacement | |||||
|
6
|
6
90179-06500-00 Nut |
90179-06500-00 |
from US $2.13 |
||
|
7
|
7
95821-10014-00 Bolt, Flange (95801-10014-00) |
95821-10014-00 |
from US $2.13 |
||
| replacement | |||||
|
7
|
7
90105-10147-00 Bolt, Flange |
90105-10147-00 |
from US $2.13 |
||
|
8
|
8
95816-08012-00 Bolt, Flange |
95816-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
9
|
9
2UJ-14621-00-00 Pipe, Exhaust 2 |
2UJ-14621-00-00 |
from US $131.39 |
||
|
10
|
10
90101-06576-00 Bolt |
90101-06576-00 |
from US $1.70 |
||
|
11
|
11
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
12
|
12
2UJ-14631-00-00 Pipe, Exhaust 3 |
2UJ-14631-00-00 |
from US $86.76 |
||
|
13
|
13
2GV-14663-00-00 Plate, Air Cleaner |
2GV-14663-00-00 |
from US $29.89 |
||
|
14
|
14
95811-06020-00 Bolt, Flange |
95811-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
14
|
14
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
15
|
15
2GV-14603-00-00 Cover 1 |
2GV-14603-00-00 |
from US $65.63 |
||
|
16
|
16
97701-40012-00 Screw, Tapping |
97701-40012-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
97704-40012-00 Screw, Tapping |
97704-40012-00 |
from US $1.56 |
||
|
17
|
17
90163-04003-00 Screw, Tapping |
90163-04003-00 |
from US $1.84 |
||
|
18
|
18
90183-04027-00 Nut, Spring |
90183-04027-00 |
from US $1.70 |
||
|
19
|
19
2UJ-14484-00-00 Plate, Cleaner Case Fitting |
2UJ-14484-00-00 |
from US $14.45 |
||
|
20
|
20
91026-06010-00 Bolt |
91026-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
20
|
20
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
21
|
21
95816-06025-00 Bolt, Flange (20X) |
95816-06025-00 |
US $1.07 |
||
| replacements | |||||
|
21
|
21
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
21
|
21
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
22
|
22
903-87073-91-00 Collar |
903-87073-91-00 |
from US $1.84 |
||
|
23
|
23
90385-10026-00 Bush |
90385-10026-00 |
from US $1.98 |
||
|
24
|
24
3BM-14882-00-00 Hose, Bend 2 |
3BM-14882-00-00 |
US $13.63 |
||
|
25
|
25
90467-26111-00 Clip |
90467-26111-00 |
US $6.21 |
||
|
26
|
26
3BG-14840-00-00 Air Cut Valve Assembly |
3BG-14840-00-00 |
from US $165.79 |
||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
90338-10132-00 Plug |
90338-10132-00 |
from US $1.28 |
||
|
28
|
28
3BM-14883-00-00 Hose, Bend 3 |
3BM-14883-00-00 |
US $11.45 |
||
|
29
|
29
42H-14808-00-00 Reed Valve Assy |
42H-14808-00-00 |
from US $333.94 |
||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
977-01601-14-00
Screw, Tapping
|
977-01601-14-00 |
— | ||
| replacement | |||||
|
30
|
30
97707-60514-00 Screw, Tapping |
97707-60514-00 |
from US $1.62 |
||
|
31
|
31
3BG-14884-00-00 Hose, Bend 4 |
3BG-14884-00-00 |
US $19.13 |
||
|
32
|
32
3BG-14885-00-00 Hose, Bend 5 |
3BG-14885-00-00 |
US $21.89 |
||
|
33
|
33
3BG-14873-00-00 Pipe 3 |
3BG-14873-00-00 |
US $164.90 |
||
|
34
|
34
3BG-14874-00-00 Pipe 4 |
3BG-14874-00-00 |
US $54.36 |
||
|
35
|
35
904-68081-04-00 Clip |
904-68081-04-00 |
from US $1.70 |
||
|
36
|
36
42H-14714-00-00
Gasket, Muffler
|
42H-14714-00-00 |
— | ||
| replacement | |||||
|
36
|
36
42H-14714-10-00 Gasket, Muffler |
42H-14714-10-00 |
from US $16.43 |
||
|
37
|
37
42H-14857-00-00 Case, Air Cleaner |
42H-14857-00-00 |
from US $8.93 |
||
|
38
|
38
42H-14858-00-00
Cap, Case
|
42H-14858-00-00 |
— | ||
|
39
|
39
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
40
|
40
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.36 |
||
|
41
|
41
90202-05057-00 Washer, Plate |
90202-05057-00 |
from US $1.70 |
||
|
42
|
42
3BM-14867-00-00 Bracket |
3BM-14867-00-00 |
US $89.28 |
||
|
43
|
43
3BG-13542-00-00 Hose, Vac Sensing 1 |
3BG-13542-00-00 |
US $25.52 |
||
|
44
|
44
90467-08092-00 Clip |
90467-08092-00 |
from US $1.35 |
||
|
45
|
45
1TA-14881-00-00 Hose, Bend 1 |
1TA-14881-00-00 |
from US $25.79 |
||
